Two-Chassis Phono Stage with Exceptional Sound Quality The task of a quality phono preamplifier is to provide simple, straightforward, and accurate low-noise playback of your vinyl. With the PHO-500, Vincent Audio not only succeeded, but also triumph...
View all
Specifications
- Color Black or Silver
- Capacity MM: 15 pF - 350 pF (adjustable), MC: 15 pF
- Frequency Response 10 Hz – 20 kHz ±0.5 dB, 10 Hz – 50 kHz ±2 dB
- Signal to noise MM: > 83 dB, MC: > 70 dB
- Input Impedance MM: 47 KOhm, MC: 100 Ohm - 1000 Ohm (adjustbale)
We also offer you
Free selection of cables
0 GBP
Connection and setup
Call an expert

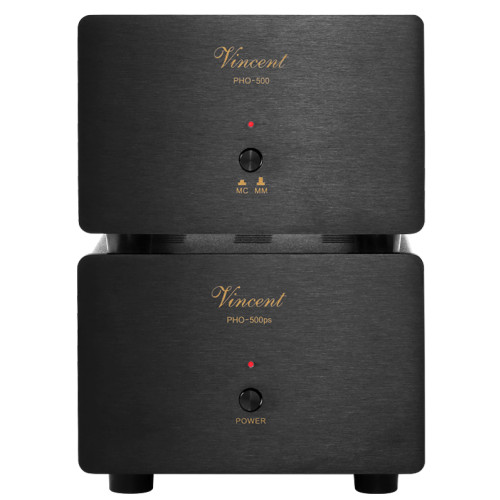

Vincent PHO-500 Phonopreamp Black
Two-Chassis Phono Stage with Exceptional Sound Quality The task of a quality phono preamplifier is to provide simple, straightforward, and accurate low-noise playback of your vinyl. With the PHO-500, Vincent Audio not only succeeded, but also triumphed. One reason for the exceptional sound quality is a sophisticated power supply, located in its own separate chassis, away from the delicate signal processing of the preamplification circuitry. Archive Your LPs as Digital Files One great feature of the PHO-500 is the ability to turn LPs and LP tracks into digital files. The analog signal is converted to a CD-quality digital stream by a built-in Analog-to-Digital converter. Output is via a USB connection. Just plug the PHO-500 into your PC or Mac computer, which will recognize the PHO-500by the name "USB-Audio". Using recording software you can find on the web (such as the free Audacity app) you will be able to easily archive your vinyl.
Specifications
General
Color
Black or Silver
Functions
Capacity
MM: 15 pF - 350 pF (adjustable), MC: 15 pF
Frequency Response
10 Hz – 20 kHz ±0.5 dB, 10 Hz – 50 kHz ±2 dB
Signal to noise
MM: > 83 dB, MC: > 70 dB
Inputs
Input Impedance
MM: 47 KOhm, MC: 100 Ohm - 1000 Ohm (adjustbale)
Input Sensitivity
MM: 58 mV, MC 6,8 mV
Inputs
PHO-500 1 x Stereo RCA
Outputs
Output Impedance
250 Ohm
Outputs
PHO-500 1 x Stereo RCA, USB
Power
Max. Power Consumption
10 Watt
Dimensions
Dimensions ( W x H x D )
130 x 95 x 205 mm (for power supply and PHO-500 each)
Weight
1,4 kg (power supply), 1 kg (PHO-500)
Vincent
The German brand VINCENT was registrated in 1995 as a trade mark by Sintron Distribution GmbH in Iffezheim/Germany. Since the foundation Sintron develops further continually the products of the high-end brand. German know-how guarantees a high-quality, excellent and secure series manufacture in far east – high-class parts and above-average processed housings provide the brand’s high “inner values”. Product development takes place in Germany.VINCENT stands for a continual orientation to 2-channel stereo in the high end class. There are two electrical concepts. On one side there are the solid state products - equipment that is based on pure transistor technology. Products of the solidLine are one example to be mentioned. They have a precise, light and dynamic sound design.
