The Roksan M2 Integrated Amplifier advances the performance of this class of amplifier to a new level. The ease with which the M2 negotiates the loudspeaker load through even the most delicate yet demanding musical passages is almost unbelievable fro...
View all
Specifications
- Damping Factor 160 (8)ohm
- Frequency Response -3dB, <1Hz - 90kHz
- Signal to Noise Ratio Line 108dBa (ref. 500mV) 85dBa (ref. 1W, 8ohm)
- Input Impedance 47 Kohms
- Input Sensitivity (85W) Line 240mV
We also offer you
Free selection of cables
0 GBP
Connection and setup
Call an expert

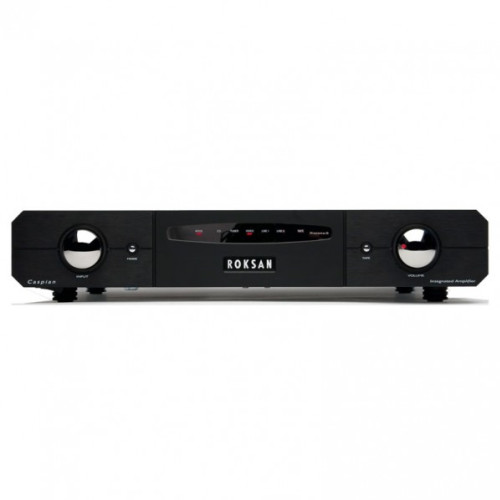

Roksan Caspian M2 Integrated Amplifier, Black
The Roksan M2 Integrated Amplifier advances the performance of this class of amplifier to a new level. The ease with which the M2 negotiates the loudspeaker load through even the most delicate yet demanding musical passages is almost unbelievable from such an elegant pure looking amplifier. The M2 Integrated amplifiers independent power supplies combined with fully symmetrical complimentary circuit design ensure the amplifier uncovers even the most delicate detail and presents it majestically .
Its control and authority appears to be backed by a state of the art power house! Resolution of detail is so harmonic and full of emotion that is reminiscent of the world acclaimed Roksan L1.5 reference preamplifier. Of course pedigree has played an important role but the relentless refinements, tests and never ending demands Roksan has put into this amplifier have really made it come to life.
Independent Analogue Output stage Power Supply
Full functional Roksan LCD system remote control (RMX-108)
Output protection with high current relays
Independent Preamplifier stage Power Supply
Thermally controlled fan assisted heat-sink cooling
-20dB mute function
350VA ultra low noise, Power section Toroidal transformer
60VA ultra low noise, Pre section Toroidal transformer
Specifications
Functions
Damping Factor
160 (8)ohm
Frequency Response
-3dB, <1Hz - 90kHz
Gain
40dB Overall (Pre & Power)
9.3dB Preamplifier
30.7dB Power Amplifier
Harmonic Distortion
0.002% 1kHz, 0.015% 20kHz 10W - 8ohm
0.0025% 1kHz, 0.03% 20kHz 50W - 8ohm
Signal to Noise Ratio
Line 108dBa (ref. 500mV)
85dBa (ref. 1W, 8ohm)
Inputs
Input Impedance
47 Kohms
Input Sensitivity (85W)
Line 240mV
Inputs
5 Line & Tape RCA Gold plated
CD Input also switchable to XLR Balanced Gold plated
Outputs
Current Output
60 Amps Peak to Peak
Output Power
85 Watts, into 8 ohm both channels driven
125 Watts, into 4 ohm both channels driven
Output Voltage
240mV (Tape Out)
700mV (Pre Out)
Outputs
Gold plated RCA Tape & 2 Preamplifier
Power Outputs
Loudspeaker, L & R
Power
Power Consumption
< 230 W
Power Source
100V - 120V 50Hz / 60Hz
220V - 240V 50Hz / 60Hz
(via Mains inlet filter)
Power Supply
350VA Ultra Low Noise Toroidal Transformer
60VA Ultra Low Noise Transformer PreampSection Toroidal
5 Regulated Supply Rails
Dimensions
Dimensions
432 x 330 x 70 (W x D x H) mm
432 x 330 x 80 (including feet)
Weight
13 Kg
