VXLR+
The Rode VXLR+ is an adapter that lets you connect a mic equipped with a 3.5mm TRS connector to the XLR input of a professional camera, recorder, or mixer. The VXLR+ also converts 12 to 48V phantom power down to 3 to 5V plug-in power, allowing lavali...
View all
Specifications
-
Number Of Channels
1
-
Controls
None
-
Input / Output Level
Input: Mic Level
Output: Mic Level
-
In-Line Accessory Type
Phantom Power Converter
-
Dimensions
2.3 x 0.7 x 0.7" / 5.8 x 1.9 x 1.9 cm
All specifications

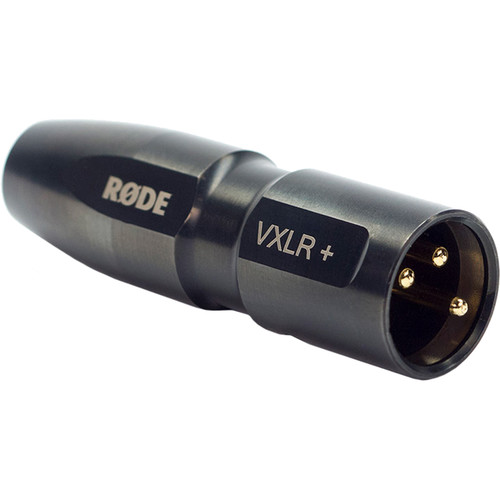

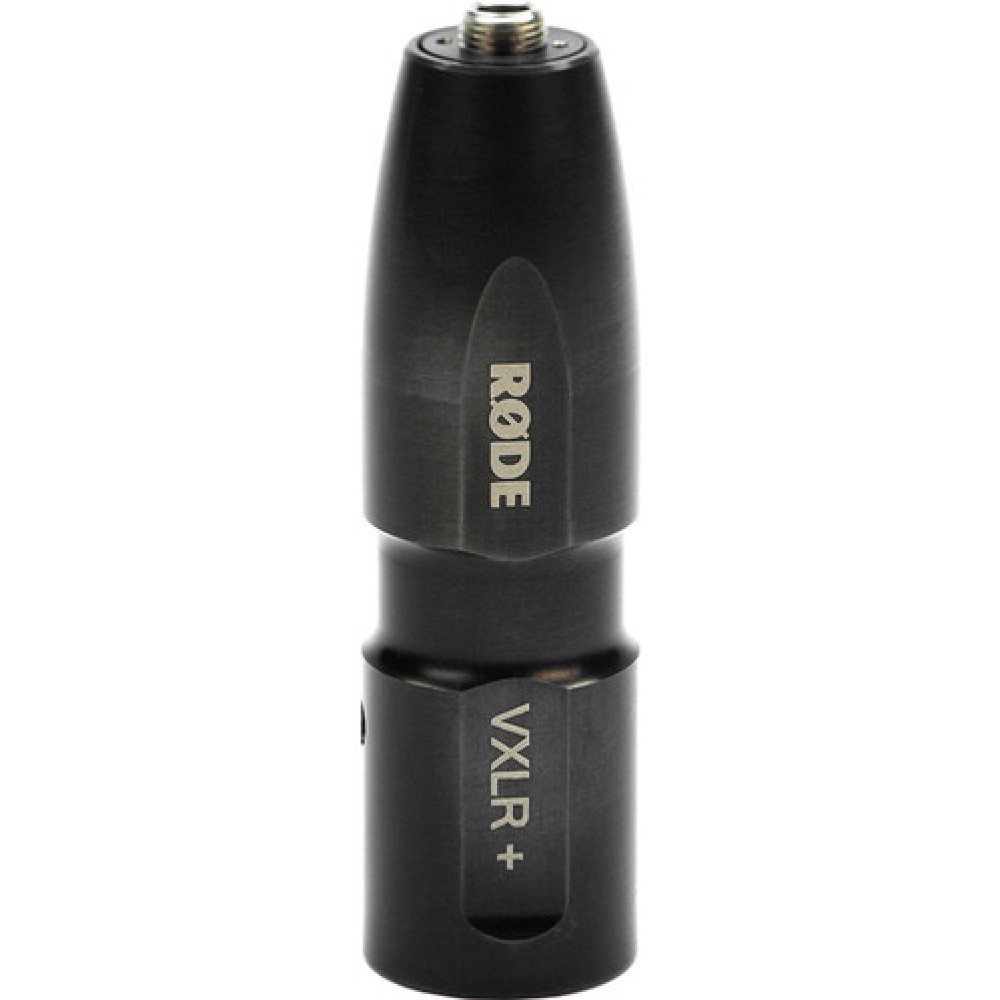

Rode VXLR+ 3.5mm TRS Female to XLR Male Adapter with Phantom Power Converter

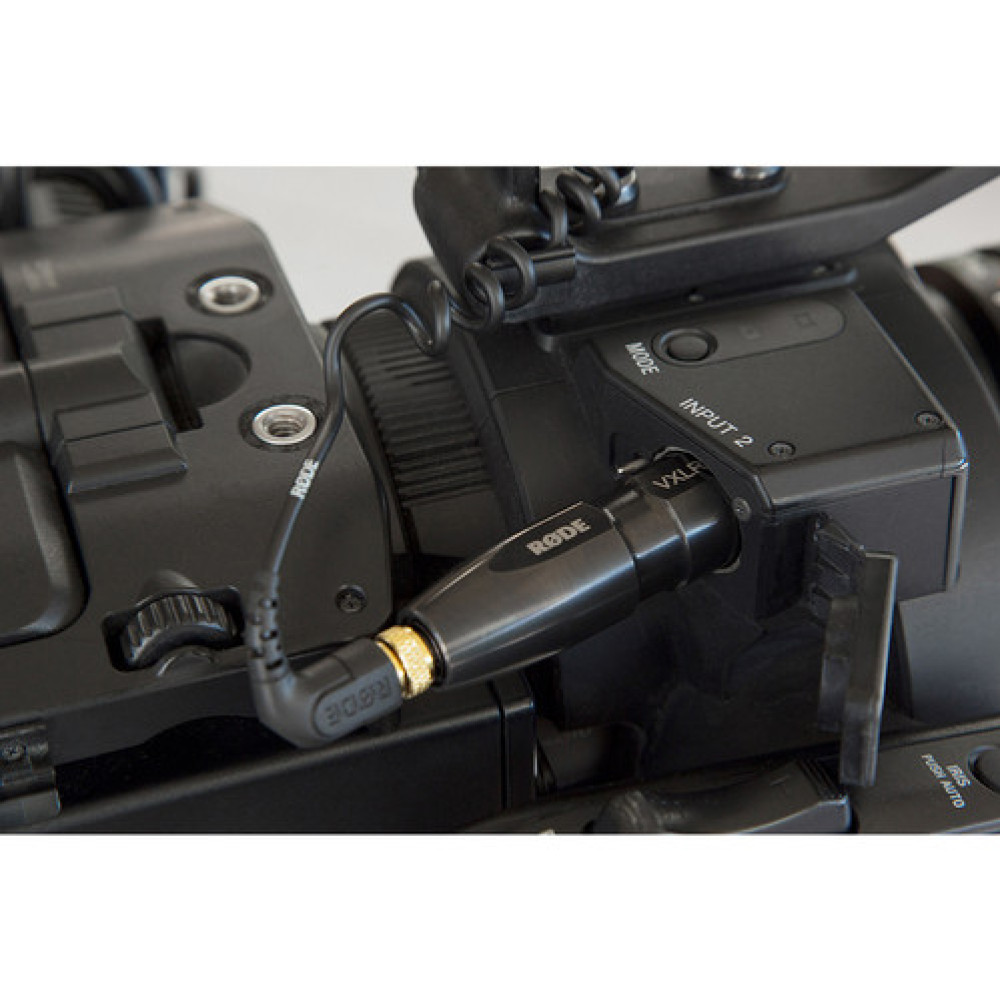

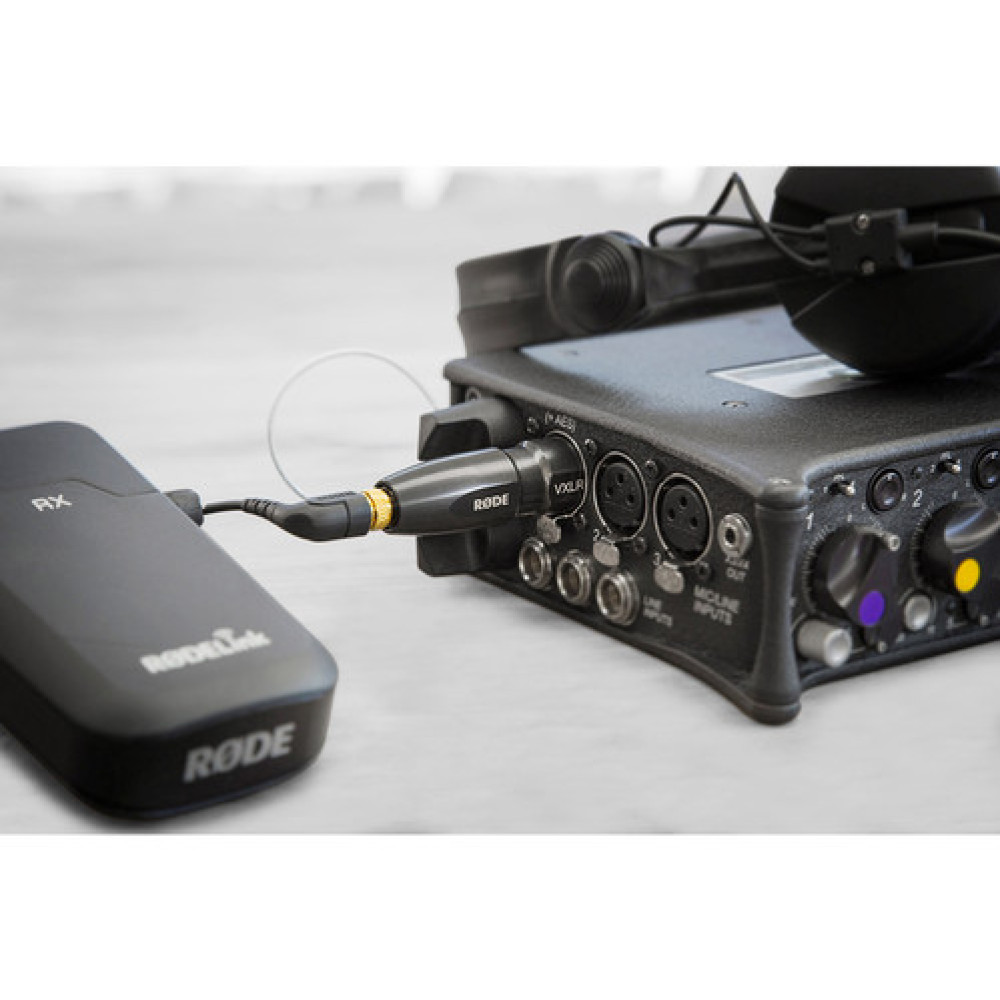

The Rode VXLR+ is an adapter that lets you connect a mic equipped with a 3.5mm TRS connector to the XLR input of a professional camera, recorder, or mixer.
The VXLR+ also converts 12 to 48V phantom power down to 3 to 5V plug-in power, allowing lavalier, headset, and shotgun mics to receive power from the XLR connector.
Compact and lightweight, the adapter is terminated by a 3.5mm female TRS connector at one end and an XLR male connector at the other. The 3.5mm connector is threaded to ensure your mic doesn't disconnect during recording.
Features
Functions
I/O
1 x 1/8" / 3.5 mm TRS Female Output
1 x XLR 3-Pin Male Input
Inputs
Input / Output Level
Input: Mic Level
Output: Mic Level
Supplied Accessories
In-Line Accessory Type
Phantom Power Converter
Dimensions
Dimensions
2.3 x 0.7 x 0.7" / 5.8 x 1.9 x 1.9 cm
