RØDELink TX-BELT
The Rode TX-BELT is a beltpack wireless transmitter designed to provide easy and secure transmission of wireless audio for videographers, filmmakers, and electronic news gatherers. It works with RODELink digital wireless systems and can be powered vi...
View all
Specifications
- Transmitter Type Bodypack
- Color Black
- Capsule Electret Condenser
- Auto-Level Control No
- Built-In Recorder No
We also offer you
Free selection of cables
0 GBP
Connection and setup
Call an expert

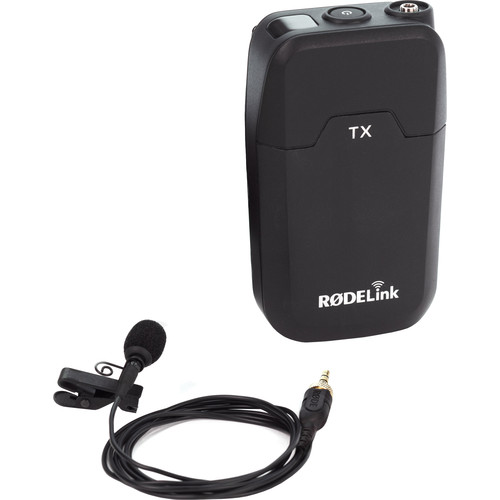

Rode TX-BELT Beltpack Wireless Transmitter with Lavalier Mic
The Rode TX-BELT is a beltpack wireless transmitter designed to provide easy and secure transmission of wireless audio for videographers, filmmakers, and electronic news gatherers. It works with RODELink digital wireless systems and can be powered via two AA batteries or a micro-USB connection.

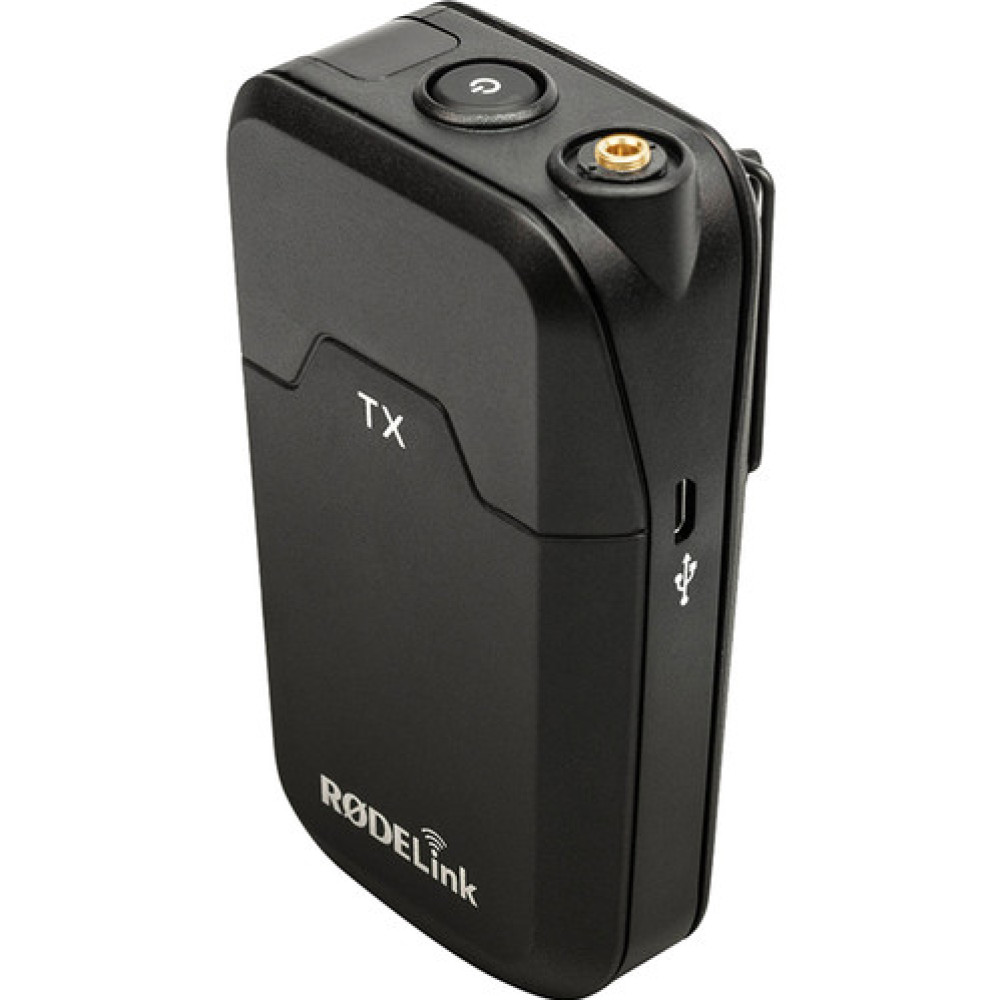

An internal antenna contributes to the compactness of the TX-BELT. It can be attached to a belt, strap, or clothing via the belt clip. The bottom panel slides down for access to the gain switch, which has positions for 0 dB, +10 dB, and +20 dB. Current channel selection is indicated on a large display by the dedicated power button. The 3.5mm TRS input features a locking jack socket to prevent accidental disconnection. The TX-BELT ships with a lavalier microphone and a captive TRS cable.
Designed for use with RODELink digital wireless systems
Belt clip allows quick attachment to a belt or clothing
Selectable 0 dB, +10 dB, or +20 dB gain via switch beneath the slide-down bottom panel

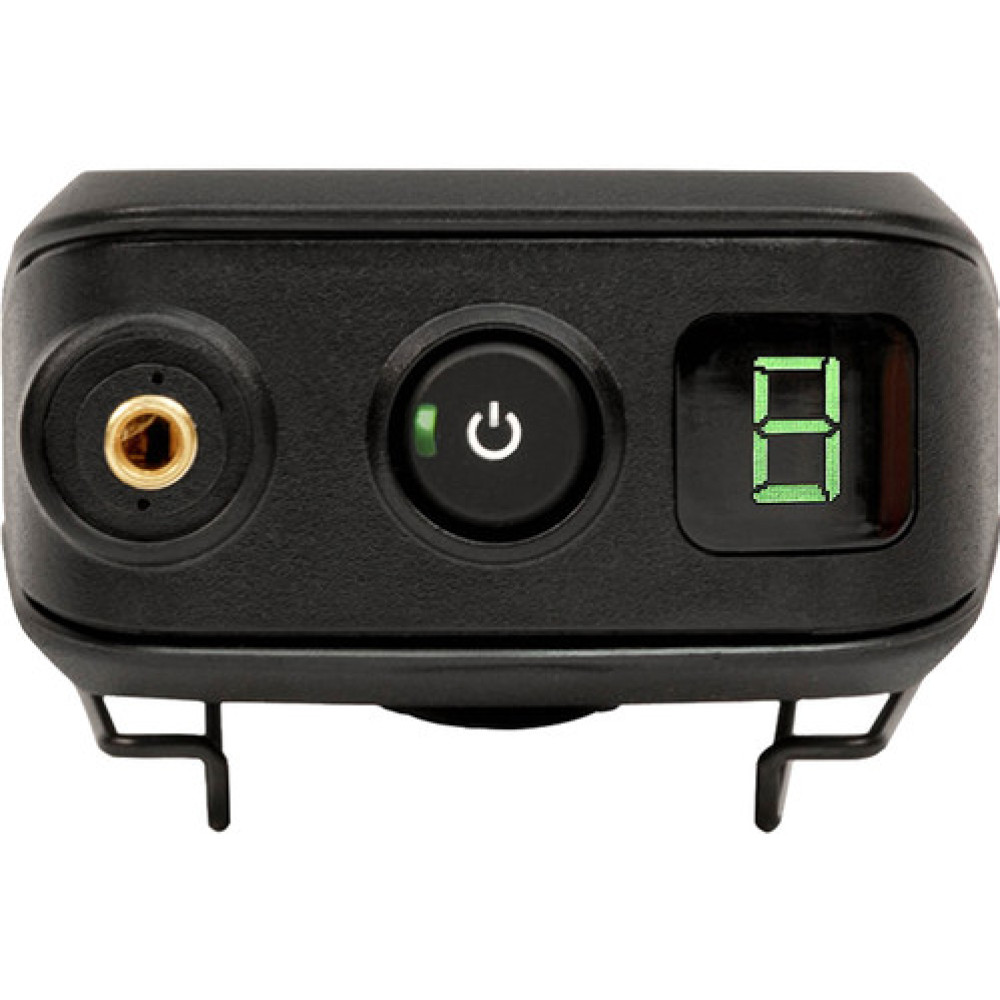

Large indicator for channel selection
Input connection utilizes a 3.5mm TRS locking jack socket
Powered via two AA batteries or micro-USB connection
Note: Each RODELink system creates a wireless peer-to-peer connection allowing the transmitter and the receiver to operate as a pair. This means that the transmitter can transmit audio to only one receiver at a time. Conversely, the receiver can only receive audio from one transmitter at a time.
An internal antenna contributes to the compactness of the TX-BELT. It can be attached to a belt, strap, or clothing via the belt clip. The bottom panel slides down for access to the gain switch, which has positions for 0 dB, +10 dB, and +20 dB. Current channel selection is indicated on a large display by the dedicated power button. The 3.5mm TRS input features a locking jack socket to prevent accidental disconnection. The TX-BELT ships with a lavalier microphone and a captive TRS cable.
Designed for use with RODELink digital wireless systems
Belt clip allows quick attachment to a belt or clothing
Selectable 0 dB, +10 dB, or +20 dB gain via switch beneath the slide-down bottom panel
Large indicator for channel selection
Input connection utilizes a 3.5mm TRS locking jack socket
Powered via two AA batteries or micro-USB connection
Note: Each RODELink system creates a wireless peer-to-peer connection allowing the transmitter and the receiver to operate as a pair. This means that the transmitter can transmit audio to only one receiver at a time. Conversely, the receiver can only receive audio from one transmitter at a time.
Specifications
General
Transmitter Type
Bodypack
Color
Black
Basic
Capsule
Electret Condenser
Features
Auto-Level Control
No
Built-In Recorder
No
Control App Support
No
Display & Indicators
1 x LED (Battery Status, Channel, Power)
Functions
Audio I/O
1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
Encryption
128-Bit
Equivalent Noise Level
25 dB A-Weighted
Impedance
3000 Ohms
Max Operating Range
328.1' / 100 m
Max Transmitters per Band
1
Maximum S.P.L
110 dB SPL
Microphone Type
Lavalier
Sound Field
Mono
Outputs
Output ConnectorS
1 x 1/8" / 3.5 mm TRS Male (Lockable)
RF Output Power
Not Specified by Manufacturer
USB/Lightning Connectivity
1 x Micro-USB (Bus Power)
Power
Battery Type
2 x AA
Power Requirements
Battery, Bus Power (USB)
Wireless connection
Wireless Technology
Digital 2.4 GHz
Supplied Accessories
Antenna
1 x Internal
Included Cable Connector
None
Dimensions
Cable Length
3.9' / 1.2 m
Diameter
0.2" / 4.5 mm
Diaphragm
0.10" / 2.54 mm
Dimensions
4.4 x 2.6 x 1.6" / 111 x 65 x 40 mm
Length
0.5" / 12 mm
Weight
0 oz / 1 g
