Z-2
Bookshelf Speaker
QUAD proudly announce Z Series, our new flagship ribbon loudspeaker range. After taking a new approach to ribbon tweeter design using a unique sandwich formation, an exceptionally robust, high power speaker has been engineered...
View all
Specifications
- Description bookshelf
- Enclosure Type bass reflex
- Transducer 2way
- Bass Driver 175mm glass fibre
- Bass extension 45Hz
We also offer you
Free selection of cables
0 GBP
Connection and setup
Call an expert

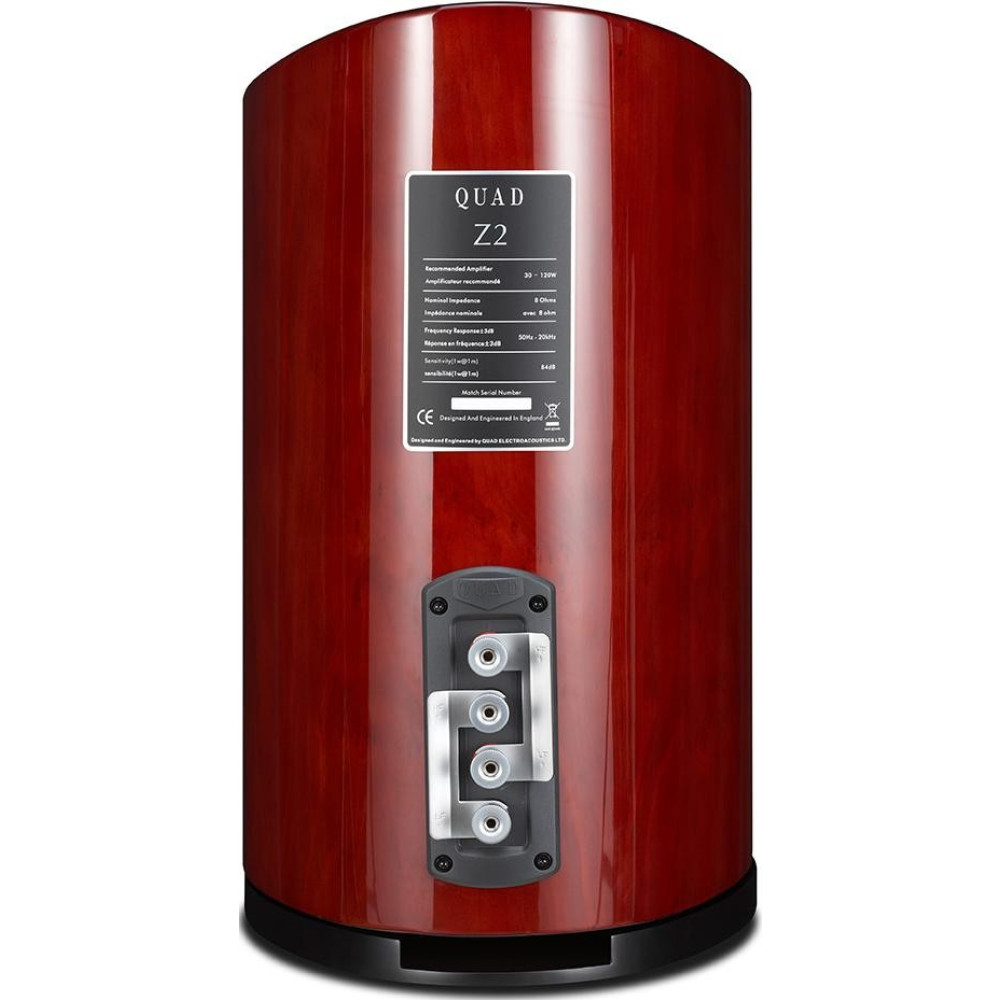

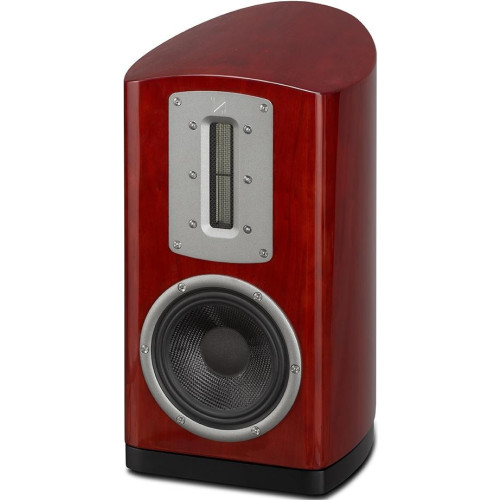

Quad QUAD Z-2 Bookshelf Speaker Piano Rosewood
Z-2
Bookshelf Speaker
QUAD proudly announce Z Series, our new flagship ribbon loudspeaker range. After taking a new approach to ribbon tweeter design using a unique sandwich formation, an exceptionally robust, high power speaker has been engineered, yet with the delicate sound, conventional ribbon speakers are known for. Z Series is housed beautifully curved piano lacquered cabinets, available in black, white and rosewood.
Specifications
General
Description
bookshelf
Enclosure Type
bass reflex
Transducer
2way
Features
Bass Driver
175mm glass fibre
Bass extension
45Hz
Recommended Amplifier Power
40-200w
Functions
Crossover Frequency
3.4kHz
Frequency response (+/-3dB)
50Hz 20kHz
Minimum impedance
4.6Ω
Nominal Impedance
8Ω
Sensitivity
84db
Treble driver
90x12mm true ribbon
Dimensions
Dimensions (mm)
421 x 243 x 329
Weight
9kg
Quad
The history of Quad is one of technical achievement in the field of sound reproduction. It is a story that began with the Quad 1 amplifier, which brought the benefits of 15 years knowledge and experience in professional audio and industrial products to the task of making the most accurate domestic audio amplifier of its age.A few years later, in 1953, the product which set the standard for amplifiers was the Quad II Power Amplifier, the time of Queen Elizabeth’s Coronation and the year in which Mount Everest was finally conquered. This amplifier pioneered the principle of cathode coupling through the output transformer to reduce harmonic distortion to almost negligible levels. Such was its clear superiority that this model remained in production for 18 years. Three years later, in 1956, Quad demonstrated the first true full-range electrostatic loudspeaker. This remarkable product (known later as the ESL 57) used a virtually mass-less plastic film as a moving diaphragm between two charged plates. Compared with moving coil loudspeakers, the ESL 57 was free of unwanted colourations and distortions. This landmark product remained in production, virtually unchanged, for 28 years.
