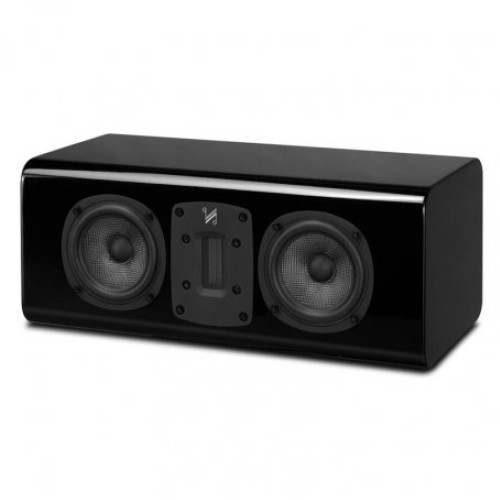

Quad QUAD S-C Center Channel Speaker Piano Black
Quad marks its 79th year with an all-new loudspeaker range: the S Series. Each model combines advanced Kevlar-coned bass/midrange drivers with a specially designed ribbon tweeter, supplying effortless sonic expression to capture all the nuances and passion of the original performance.
"PIONEERING TECHNOLOGY FOR HOME CINEMA" The S-C is a two-way design, incorporating a pair of 100mm bass/mid drivers. The new ribbon unit developed for the S-C is a thoroughly modern affair, utilising the latest techniques and materials. The ribbon itself is a sandwich construction, making it robust enough to handle high-powered amplifiers, and is fully immersed in a powerful magnetic field so that it accomplishes its dual role of being both the voice coil and the sound radiator.
"SUMPTUOUS SONICS" As well as delivering excellent transient response and superb musical detail, the sound from this ribbon unit is smooth right up to the highest musical overtones beyond the limits of human hearing. Controlled directivity maintains this sound quality over a wide horizontal arc to cover all listeners whilst vertical dispersion is tailored to avoid floor and ceiling reflections, resulting in the purest high frequency performance at the listening seat.
This ribbon tweeter is aligned with Quad’s Kevlar-coned bass and midrange drivers through sophisticated crossover networks. While the standmount models use carefully tuned, rear-firing reflex ports to augment the bass, the floorstanders are unusual in incorporating three ABRs (Auxiliary Bass Radiators) in place of a port. These passive, rear-firing bass units support the main drivers to extend bass response down to 35Hz whilst maintaining an accurate and articulate rendition of instrument fundamentals
"CUTTING EDGE CONSTRUCTION" Beautifully presented with rounded top edges at the front and rear, each speaker cabinet uses a sandwich construction of alternate layers of MDF and high-density particleboard to reduce panel resonance to below the level of audibility. Aesthetically, the look is classically Quad yet subtly updated, available initially in a choice of black or sapele mahogany wood veneers.
Specifications
General
Enclosure Type
Vented box
Basic
Tweeter
12 x 45 mm True Ribbon
Features
Bass Driver
2 x 4" woven carbon fibre cone
Bass extension
60Hz
Recommended amp power
25 - 100W
Functions
Cabinet volume
12.8L
Crossover Frequency
2.8kHz
Frequency Response
65Hz ~ 20kHz
Nominal Impedance
8 Ohms
Sensitivity
86dB
Dimensions
Dimensions
(160+5) x 400 x (200 + 30) mm
Weight
6.3 kg
Quad
The history of Quad is one of technical achievement in the field of sound reproduction. It is a story that began with the Quad 1 amplifier, which brought the benefits of 15 years knowledge and experience in professional audio and industrial products to the task of making the most accurate domestic audio amplifier of its age.A few years later, in 1953, the product which set the standard for amplifiers was the Quad II Power Amplifier, the time of Queen Elizabeth’s Coronation and the year in which Mount Everest was finally conquered. This amplifier pioneered the principle of cathode coupling through the output transformer to reduce harmonic distortion to almost negligible levels. Such was its clear superiority that this model remained in production for 18 years. Three years later, in 1956, Quad demonstrated the first true full-range electrostatic loudspeaker. This remarkable product (known later as the ESL 57) used a virtually mass-less plastic film as a moving diaphragm between two charged plates. Compared with moving coil loudspeakers, the ESL 57 was free of unwanted colourations and distortions. This landmark product remained in production, virtually unchanged, for 28 years.
