QII-Integrated
Integrated Amplifier
The Quad QII-Integrated evolves the QII into a fully integrated stereo amplifier for the very first time in a user-friendly, yetThe preamp section delivers three line inputs, plus full tape monitoring. Every deta...
View all
Specifications
-
Frequency Response
20Hz 20KHz (+0dB/1dB)
-
THD
0.06% @ 15W(700Hz)
-
Voltage Gain
34dB
-
Output Power
25W per Channel into 8 Ohms
-
Power Consumption
195W (max)
All specifications

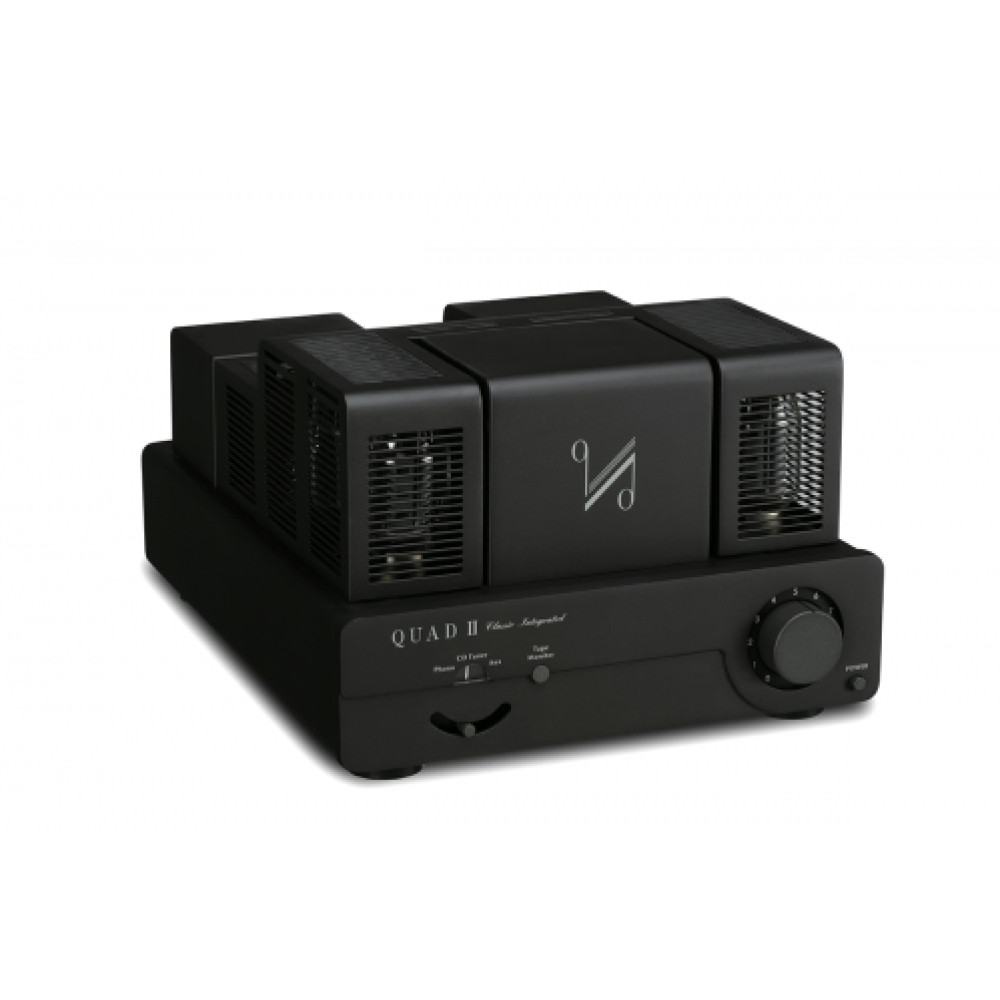

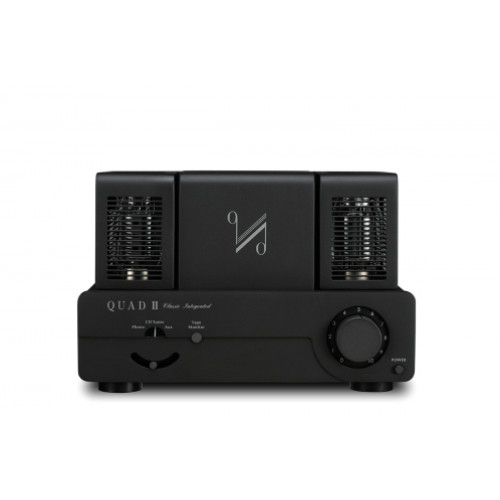

Quad QII CLASSIC INTEGRATED Tube Amplifier Lancaster Grey
QII-Integrated
Integrated Amplifier
The Quad QII-Integrated evolves the QII into a fully integrated stereo amplifier for the very first time in a user-friendly, yetThe preamp section delivers three line inputs, plus full tape monitoring. Every detail is engineered to the highest standard; even the built-in phono stage is of higher quality than many costly standalone devices, ensuring that every musical source, from vinyl to digital, is delivered with exceptional panache.It stays true to the original Quad II monoblocks in its push-pull KT66 output configuration and single-tap output transformers, yet it’s actually twice as powerful – rated at 25W per channel.
Functions
Frequency Response
20Hz 20KHz (+0dB/1dB)

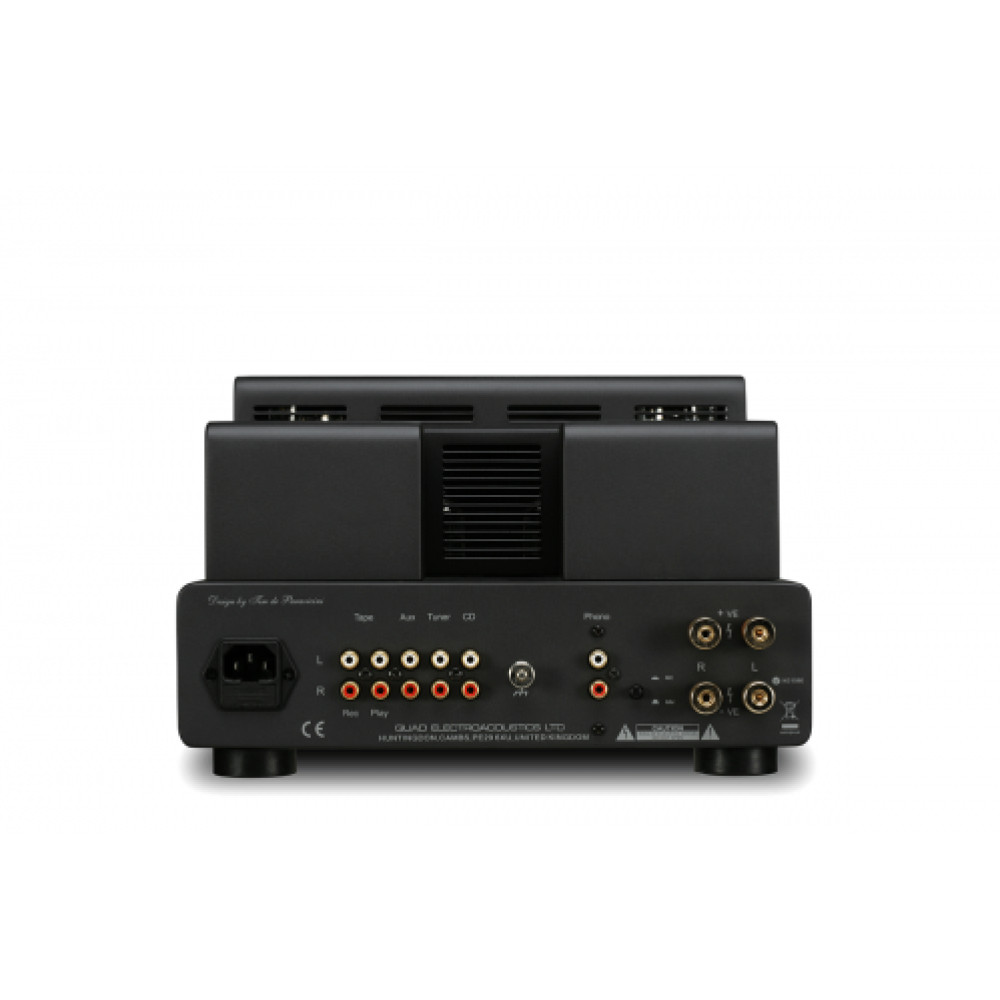

Inputs
Input Sensitivity
275mV RMS (Line Level & Tape Monitor)
2mV RMS(MM)
200_V RMS(MC)
Outputs
Output Power
25W per Channel into 8 Ohms
Power
Power Consumption
195W (max)
Dimensions
Dimensions
200 _ 310 _ 380mm
About brand
Quad
The history of Quad is one of technical achievement in the field of sound reproduction. It is a story that began with the Quad 1 amplifier, which brought the benefits of 15 years knowledge and experience in professional audio and industrial products to the task of making the most accurate domestic audio amplifier of its age.A few years later, in 1953, the product which set the standard for amplifiers was the Quad II Power Amplifier, the time of Queen Elizabeth’s Coronation and the year in which Mount Everest was finally conquered. This amplifier pioneered the principle of cathode coupling through the output transformer to reduce harmonic distortion to almost negligible levels. Such was its clear superiority that this model remained in production for 18 years. Three years later, in 1956, Quad demonstrated the first true full-range electrostatic loudspeaker. This remarkable product (known later as the ESL 57) used a virtually mass-less plastic film as a moving diaphragm between two charged plates. Compared with moving coil loudspeakers, the ESL 57 was free of unwanted colourations and distortions. This landmark product remained in production, virtually unchanged, for 28 years.
