Wireless Streaming Integrated Amplifier / DAC / Preamplifier / CD Player
The QUAD Artera Solus Play is the latest addition to the best-selling QUAD Artera series. It also heralds the arrival of wireless audio streaming and multi-room technology to t...
View all
Specifications
-
Description
CD Player, DAC, PreAmp
with Integrated amplifier
-
Channel Separation
>100dB (1kHz)
-
D/A Converter
ESS ES9018 32bit DAC
-
Dynamic Range
>98dB
-
Frequency Response
20Hz-20kHz, 1kHz (± 0.2dB)
All specifications

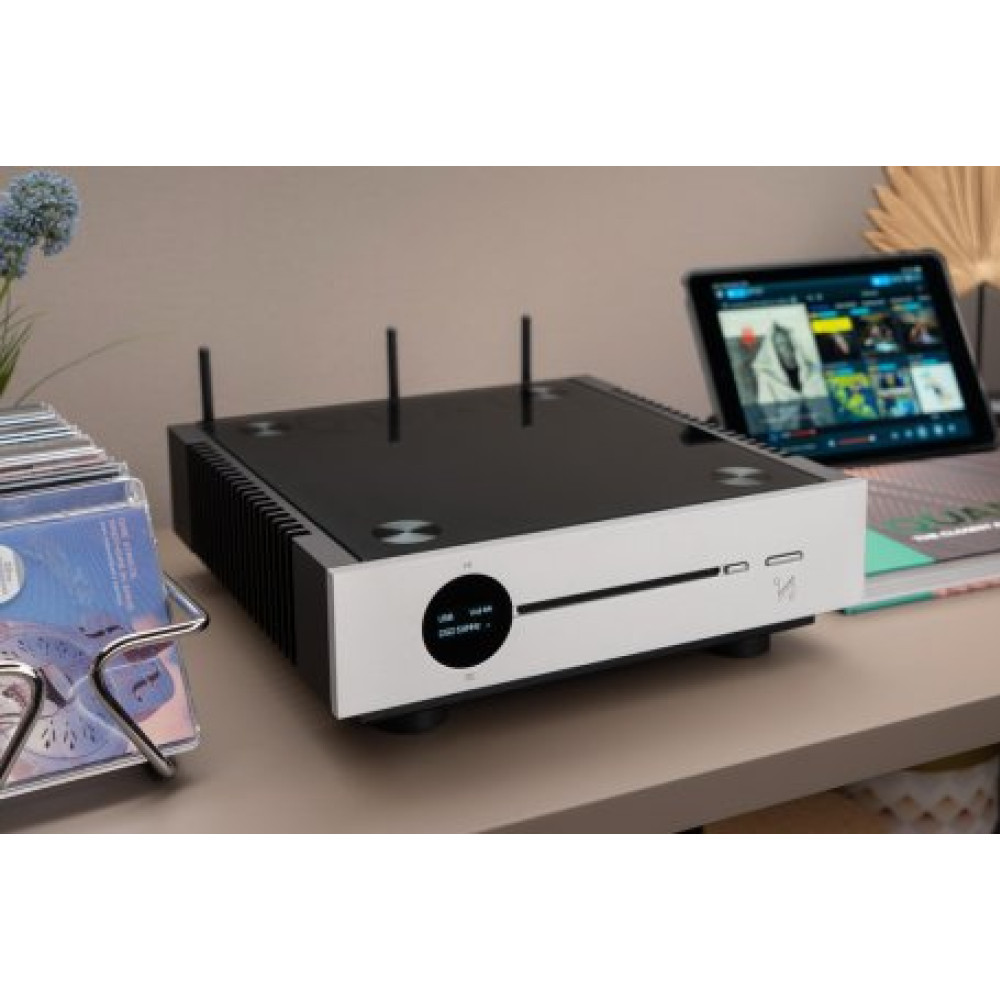

Quad Artera Solus Play Streaming Integrated Amplifier Aluminium Silver
Wireless Streaming Integrated Amplifier / DAC / Preamplifier / CD Player
The QUAD Artera Solus Play is the latest addition to the best-selling QUAD Artera series. It also heralds the arrival of wireless audio streaming and multi-room technology to the established QUAD Artera portfolio. Based on the recently upgraded and richly specified Artera Solus, the QUAD Artera Solus Play incorporates the acclaimed DTS Play-Fi® platform for high resolution wireless audio streaming. With DTS Play-Fi® Technology, music can be streamed over your wireless network in high-resolution format and can be easily expanded to an ultimate multi-room system if required. You can stream from any source on your wireless network, including smart-phones, tablets or PCs as well as a NAS Drive.
General
Description
CD Player, DAC, PreAmp
with Integrated amplifier
Features
Channel Separation
>100dB (1kHz)
D/A Converter
ESS ES9018 32bit DAC
Functions
Audio File Formats
ALAC, WAV, FLAC, AIFF, WMA, MP3, AAC, AACHE,
AAC+, DSD64, DSD128, DSD256
Frequency Response
20Hz-20kHz, 1kHz (± 0.2dB)
SAMPLE RATE
44.1 192kHz (Digital Inputs / Outputs)
Signal to Noise Ratio
> 110dB (Aweighted, ref. 1V)
Total Harmonic Distortion
< 0.002% (@1KHz, BW=20Hz-20kHz)

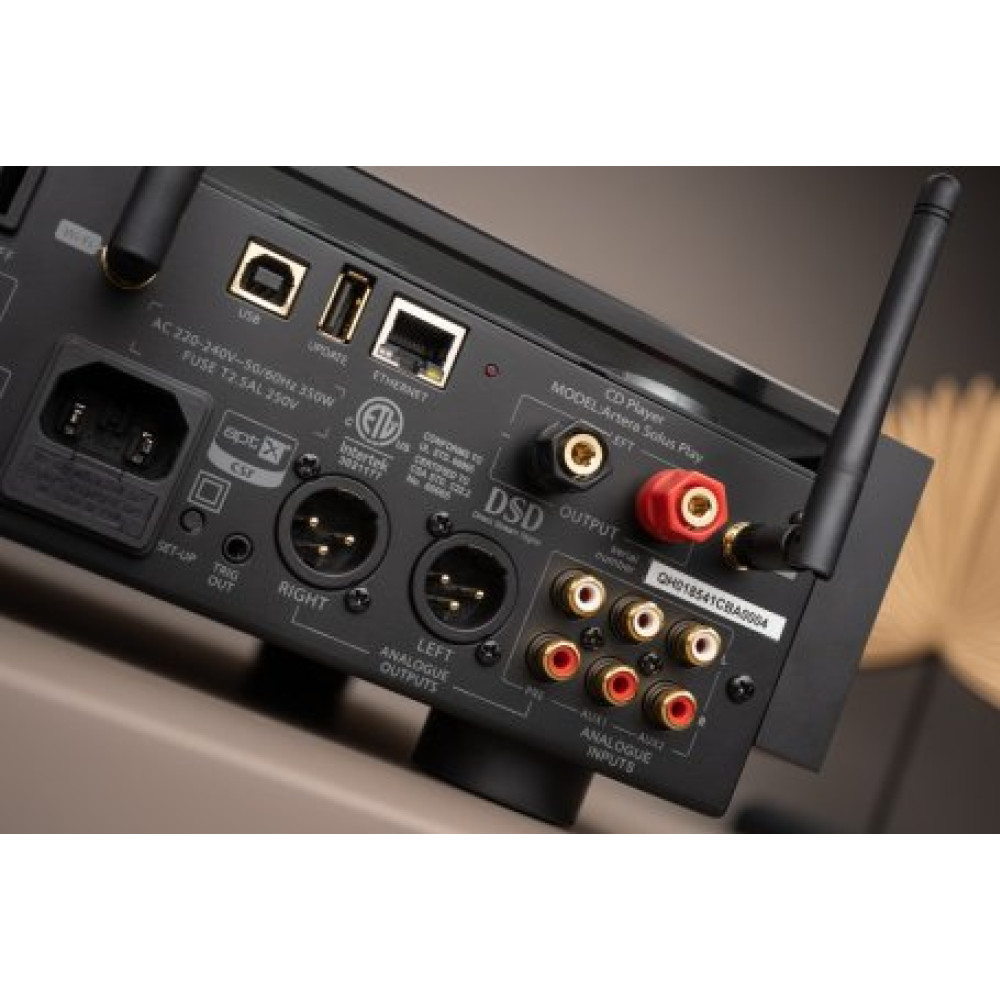

Inputs
Analogue Inputs
2 x RCA (AUX1, AUX2)
Audio Inputs
2 x Optical TOSlink, 2 x RCA (DIG1, DIG2)
Outputs
Analogue Outputs
2 x RCA, 2 x Balanced XLR, 6.3mm Headphone
Jack
Audio Outputs
1 x Optical TOSlink, 1 x RCA (DIG)
Output Level
RCA 02.3 Vrms / XLR 04.6 Vrms
Outputs
1 Pair Speaker Terminals
Power Output
2 x 75W (8Ω)
Power
Power Requirement
220V240V~5060Hz
100V120V~5060Hz
Standby power consumption
<0.5W
Dimensions
Dimensions
465 x 465 x 220mm
About brand
Quad
The history of Quad is one of technical achievement in the field of sound reproduction. It is a story that began with the Quad 1 amplifier, which brought the benefits of 15 years knowledge and experience in professional audio and industrial products to the task of making the most accurate domestic audio amplifier of its age.A few years later, in 1953, the product which set the standard for amplifiers was the Quad II Power Amplifier, the time of Queen Elizabeth’s Coronation and the year in which Mount Everest was finally conquered. This amplifier pioneered the principle of cathode coupling through the output transformer to reduce harmonic distortion to almost negligible levels. Such was its clear superiority that this model remained in production for 18 years. Three years later, in 1956, Quad demonstrated the first true full-range electrostatic loudspeaker. This remarkable product (known later as the ESL 57) used a virtually mass-less plastic film as a moving diaphragm between two charged plates. Compared with moving coil loudspeakers, the ESL 57 was free of unwanted colourations and distortions. This landmark product remained in production, virtually unchanged, for 28 years.
