Surround 3
Built On Research Monitor SE loudspeakers benefit from Paradigm’s fundamental research into the science of sound. This research, conducted by Paradigm in conjunction with the Canadian National Research Council, has resulted in many of the innovativ...
View all
Specifications
-
Design
4-driver, 2-way bi-directional surround/rear
-
Finishes
Black
-
Crossover
2nd-order electro-acoustic at 2.3 kHz
-
Frequency Response
±2dB from 90 Hz - 20 kHz
-
Frequency Response 30° Off-Axis
(bi-directional soundfield)
All specifications

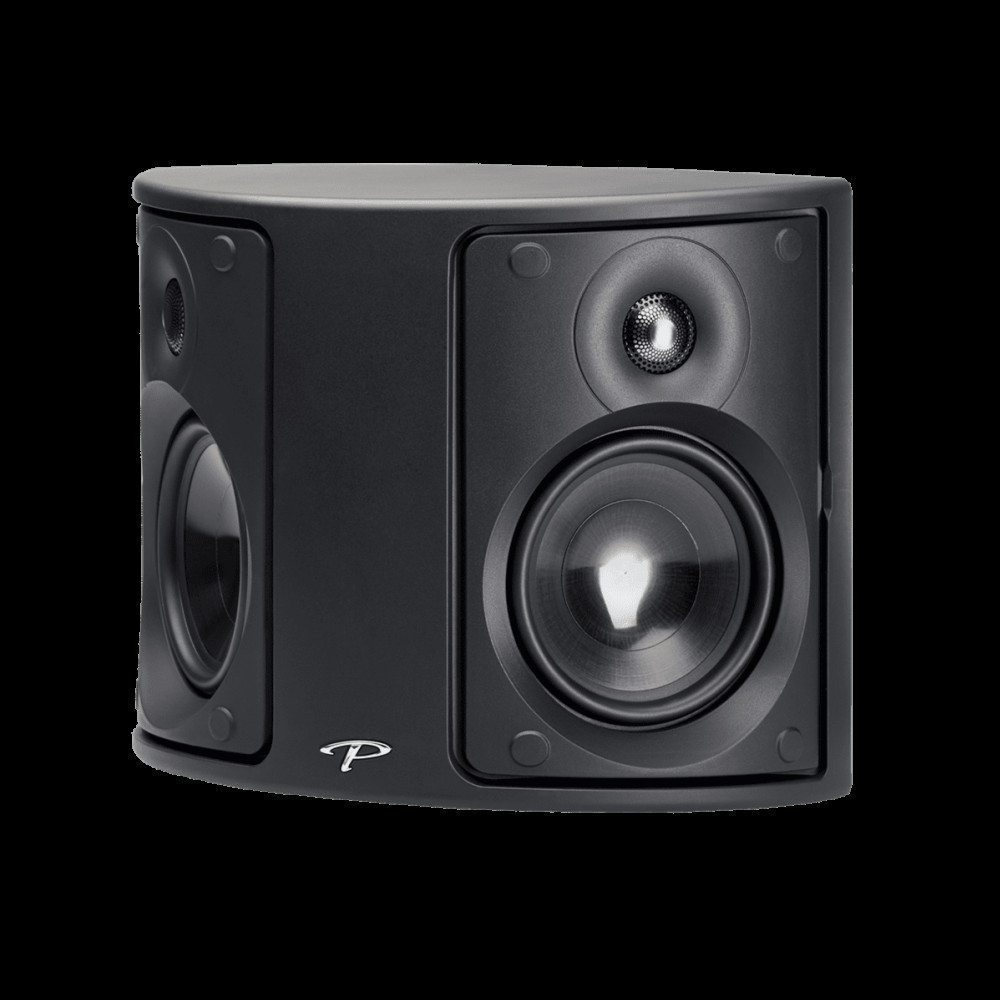

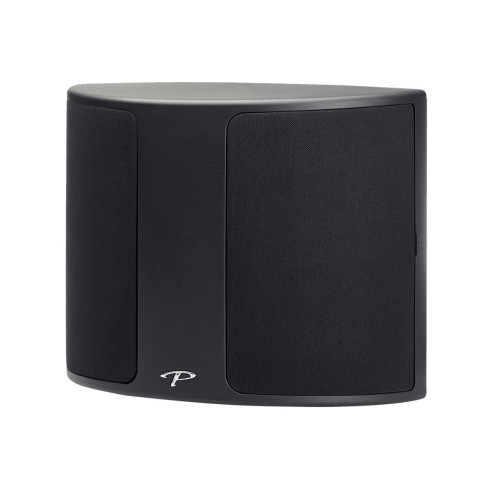

Paradigm Surround 3 Di-Pole Speakers
Built On Research
Monitor SE loudspeakers benefit from Paradigm’s fundamental research into the science of sound. This research, conducted by Paradigm in conjunction with the Canadian National Research Council, has resulted in many of the innovative materials and patented audio technologies found throughout the Paradigm speaker.
General
Design
4-driver, 2-way bi-directional surround/rear
Functions
Crossover
2nd-order electro-acoustic at 2.3 kHz
Frequency Response
±2dB from 90 Hz - 20 kHz
Frequency Response 30° Off-Axis
(bi-directional soundfield)
High Frequency Driver
Two 1” (25mm) X-PAL™ dome, ferro-fluid damped / cooled, Perforated Phase-Aligning Tweeter (PPA™) Lens
Impedance
Compatible with 8 ohms
LOW FREQUENCY EXTENSION
45 Hz (DIN)
Mid/Bass Frequency Driver
Two 5-1/2" (140mm) X-PAL™ cones, 1" (25mm) voice-coils, oversize ceramic / ferrite magnets, GRIP™ chassis
Sensitivity
90 dB / 87 dB
Inputs
Maximum Input Power
120 watts
Power
Amplifier Power
15 - 175 watts
Dimensions
Dimensions (H X W X D)
10.625" × 13" × 5.62" (27cm × 33cm × 14.3cm)
Weight
13.95 lbs. (6.32 kg)
