Persona SUB Carbon Black
Six 8” Driver Subwoofer with 1700W Continuous / 3400W Peak PowerPersona Sub is specially designed to match the aesthetics of the Persona Series, and to deliver a wallop of deep bass effects.Six 8-inch woofers, featuring durable overmolded surrounds...
View all
Specifications
-
Amplifier
1,700 W RMS (3,400 W Dynamic Peak)
-
Frequency Response
+/- 2dB from 19Hz - 220Hz (by pass option)
-
Frequency Response 30° Off-Axis
+/- 2dB from 19Hz - 220Hz (by pass option)
-
Impedance
RCA: 10k ohms; XLR: 20k ohms
-
LOW FREQUENCY EXTENSION
12Hz
All specifications

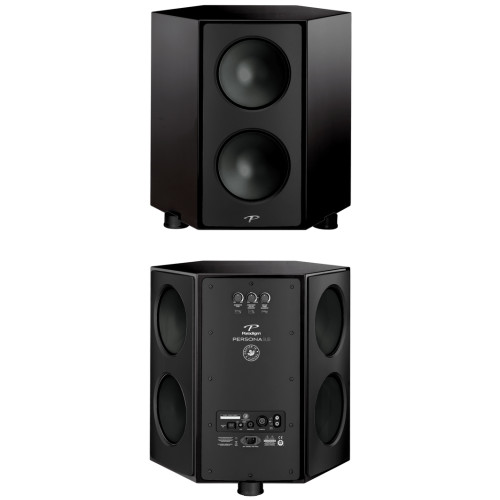

Paradigm Persona SUB Carbon Black Active Subwoofers
Six 8” Driver Subwoofer with 1700W Continuous / 3400W Peak Power
Persona Sub is specially designed to match the aesthetics of the Persona Series, and to deliver a wallop of deep bass effects.
Six 8-inch woofers, featuring durable overmolded surrounds, are radially aligned in Paradigm’s signature hexagonal Vibration- Canceling Design Architecture enclosure. Powered by a 1700W Ultra-Class-D amplifier (capable of 3400W dynamic peaks), and an array of Paradigm bass enhancements like advanced DSP, efficient venting and superior power supply switching, this sub adds depth, clarity and bass precision to your Persona audio system. Achieve well-blended musical bass down to an astonishing 12Hz. Use two or more for a truly moving audio experience!
General
Design
6-driver, acoustic suspension hexagonal vibration cancelling subwoofer
Finishes
High Gloss: Vanta Black, Harmony White Metallic Gloss: Aria Blue, Sonic Silver
Features
Amplifier
1,700 W RMS (3,400 W Dynamic Peak)
Room Correction
Anthem Room Correction - ARC™, with included calibrated microphone
Functions
Crossover
Low pass crossover: Variable 35 Hz - 150 Hz; Bypass Option; variable 0-180 deg phase
Frequency Response
+/- 2dB from 19Hz - 220Hz (by pass option)
Frequency Response 30° Off-Axis
+/- 2dB from 19Hz - 220Hz (by pass option)
Impedance
RCA: 10k ohms; XLR: 20k ohms
Low Frequency Driver
Six 8" (203mm) high-excursion X-PAL™ drivers, overmolded Active Ridge Technology (ART™) surrounds, 1-1/2" (38mm) four-layer long-excursion voice coils, high-temperature composite Nomex® formers, advanced spiders, 9.2-lb (4.16 kg) hard ferrite magnet / mot
LOW FREQUENCY EXTENSION
12Hz
Sensitivity
100 mV (mono) / 100 mV (mono)
Dimensions
Dimensions (H X W X D)
20.5" × 20.25" × 18.875" (52.5cm × 51.2cm × 48cm)
Weight
118 lbs. (53.6 kg)
