70LCR Midnight Cherry
4-driver, 3 way LCR, sealed enclosure...
View all
Specifications
-
Design
4-driver, 3 way LCR, sealed enclosure
-
Frequency Response
±2dB from 79 Hz - 23 kHz
-
Frequency Response 30° Off-Axis
±2dB from 79 Hz - 17 kHz
-
Impedance
Compatible with 8 ohms
-
LOW FREQUENCY EXTENSION
47 Hz (DIN)
All specifications

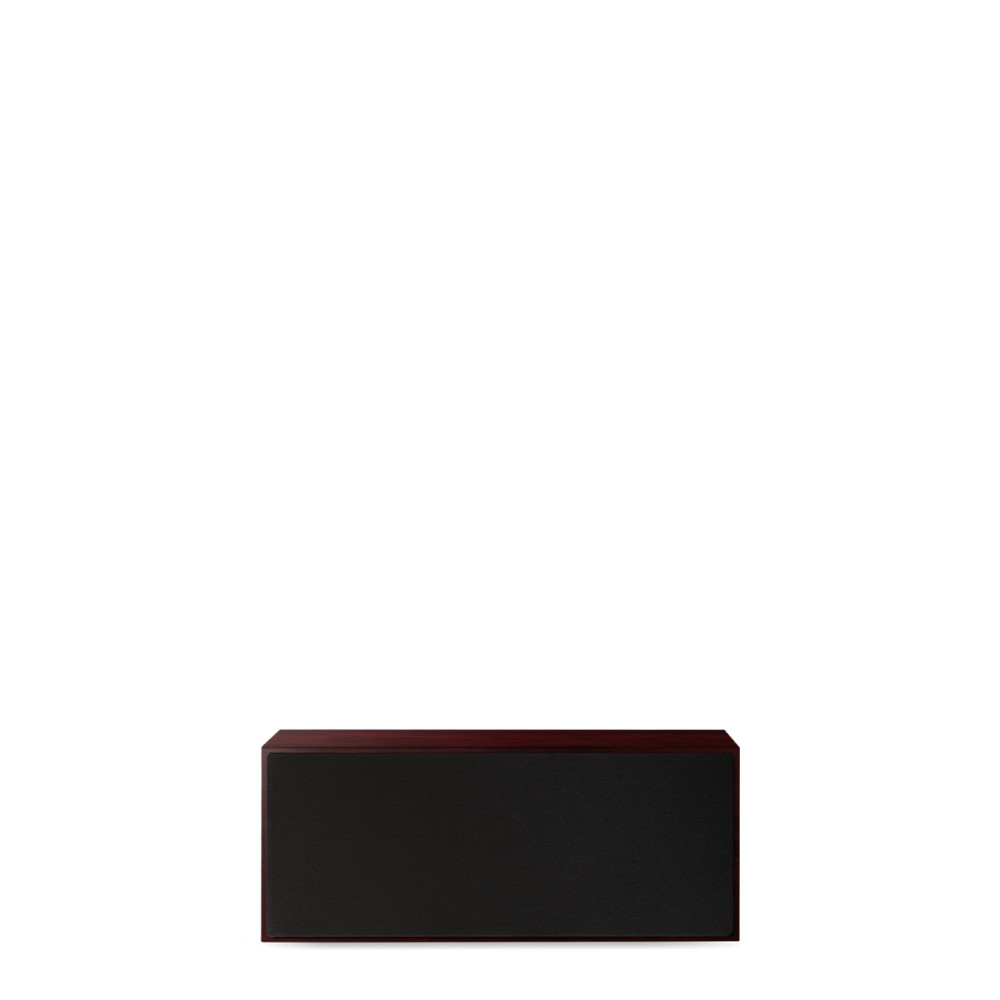

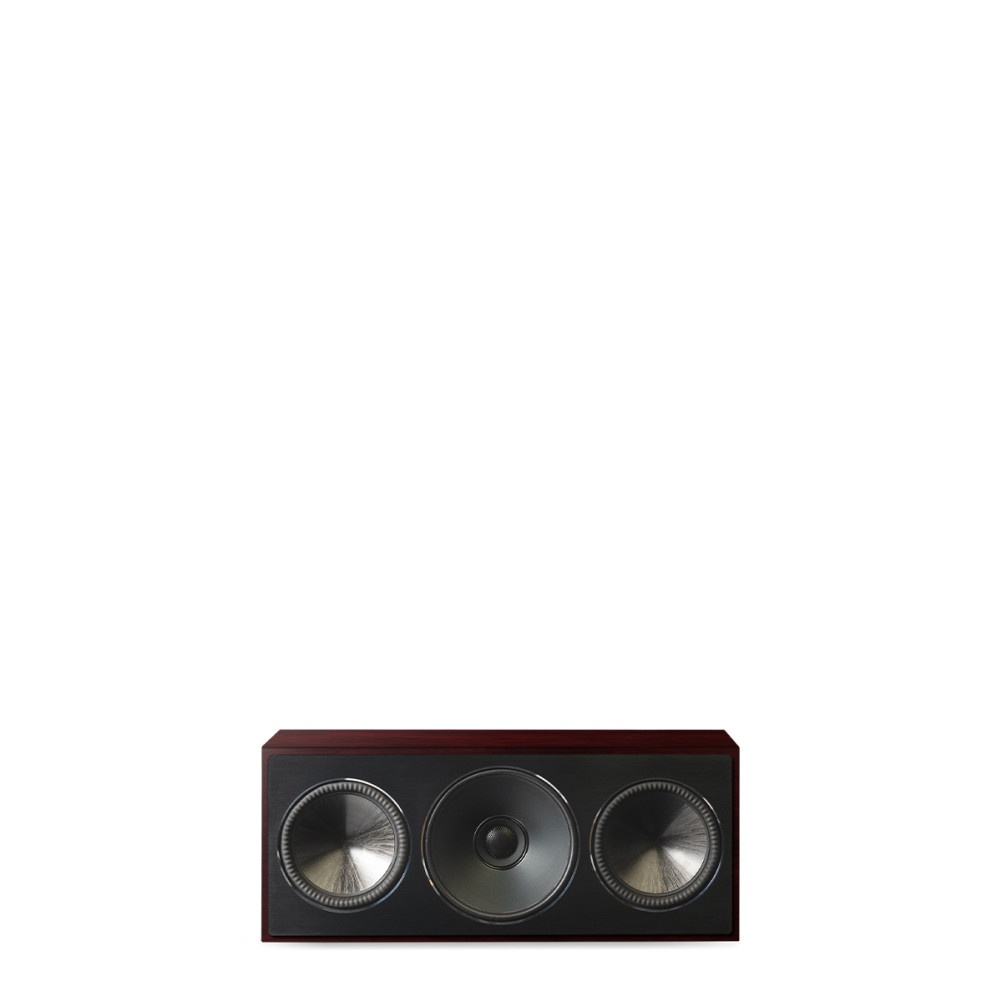

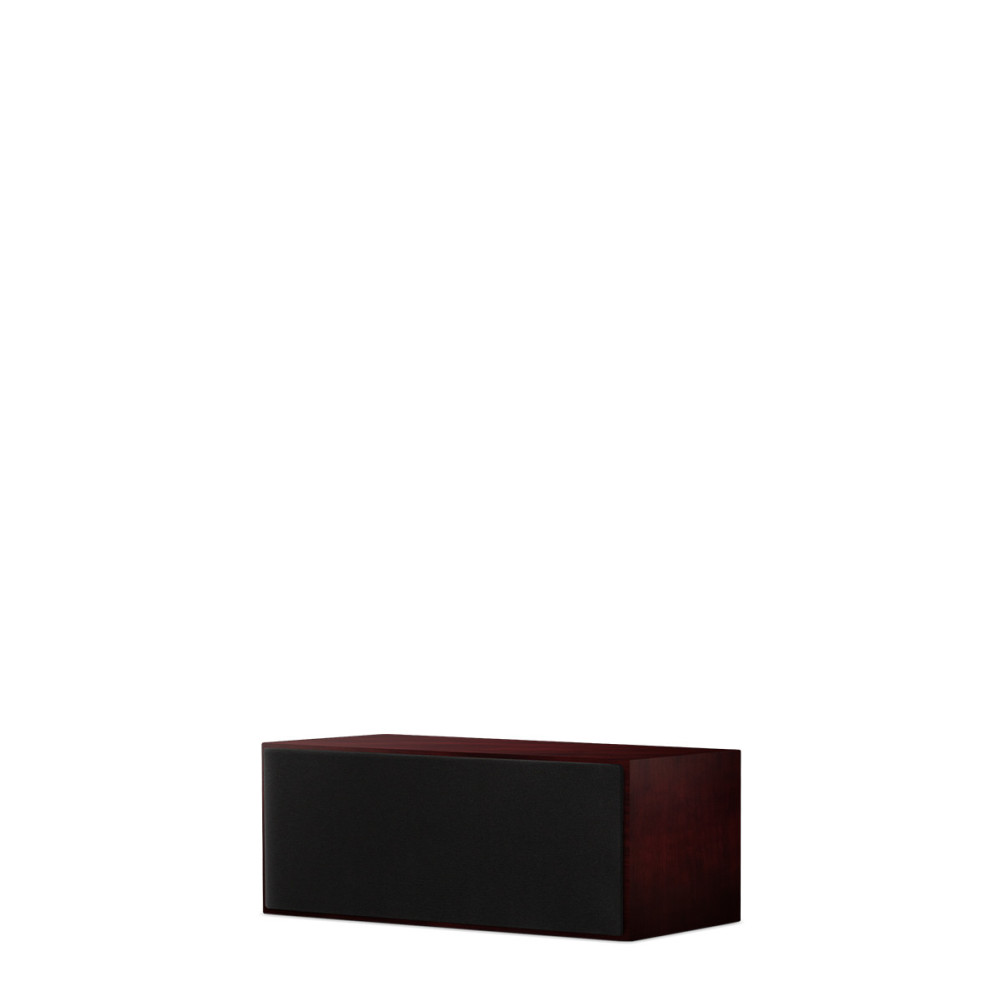

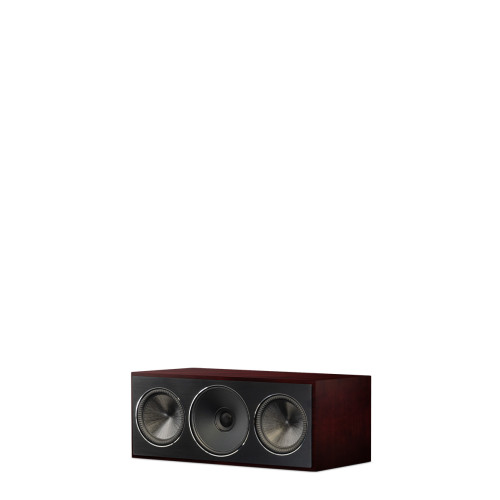

Paradigm Founder 70LCR Midnight Cherry Center Channel Speakers
4-driver, 3 way LCR, sealed enclosure
General
Design
4-driver, 3 way LCR, sealed enclosure
Finishes
Piano Black, Black Walnut, Midnight Cherry, Walnut
Functions
Bass Frequency Driver
Two 5.5" (127mm Ultra-HighExcursion CARBON-X™ Unibody Cone, Gen3 Active Ridge Technology (ART™), and a 1.5” high-temp multi-layered voice coil with ventilated Apical™ former
Crossover
2nd order electro-acoustic at 2.2 kHz (tweeter), 2nd order @ 700 Hz (bass)
Frequency Response
±2dB from 79 Hz - 23 kHz
Frequency Response 30° Off-Axis
±2dB from 79 Hz - 17 kHz
High Frequency Driver
Coaxial 1" (25mm) AL-MAC™ Ceramic Dome with Oblate Spheroid Waveguide (OSW™) and Perforated Phase-Aligning (PPA™) Tweeter Lens, ferro-fluid damped / cooled, Patent Pending Dual Gap Motor Structure
Impedance
Compatible with 8 ohms
LOW FREQUENCY EXTENSION
47 Hz (DIN)
Midrange Frequency Driver
Coaxial 6” (152mm) AL-MAG™ Cone with SHOCK-MOUNT™ Isolation Mounting System, a 2” high-temp multi-layered voice coil with Apical™ former, Patented Dual-Sync™ Continuous Flux Motor
Sensitivity
92 dB / 89 dB
Inputs
Maximum Input Power
150 watts
Power
Amplifier Power
15 - 220 watts
Dimensions
Dimensions (H X W X D)
8” x 18.9” x 12.3” (20.4cm x 48cm x 31.3cm)
Weight
30 lbs (13.6 kg) each
