CI Pro P80-SM
8 Round In-Ceiling, 3-driver, 2-way in-ceiling, switchable stereo/mono, SHOCK-MOUNT Isolation Mounting System, nylon-blended rigid baffle...
View all
Specifications
-
Finishes
White, paintable grille, black/grey speaker
-
Crossover
2nd-order electro-acoustic at 2.0 kHz
-
Frequency Response
±3 dB from 64 Hz - 22 kHz
-
Frequency Response 30° Off-Axis
±3 dB from 64 Hz - 18 kHz
-
Impedance
Compatible with 8 ohms
All specifications

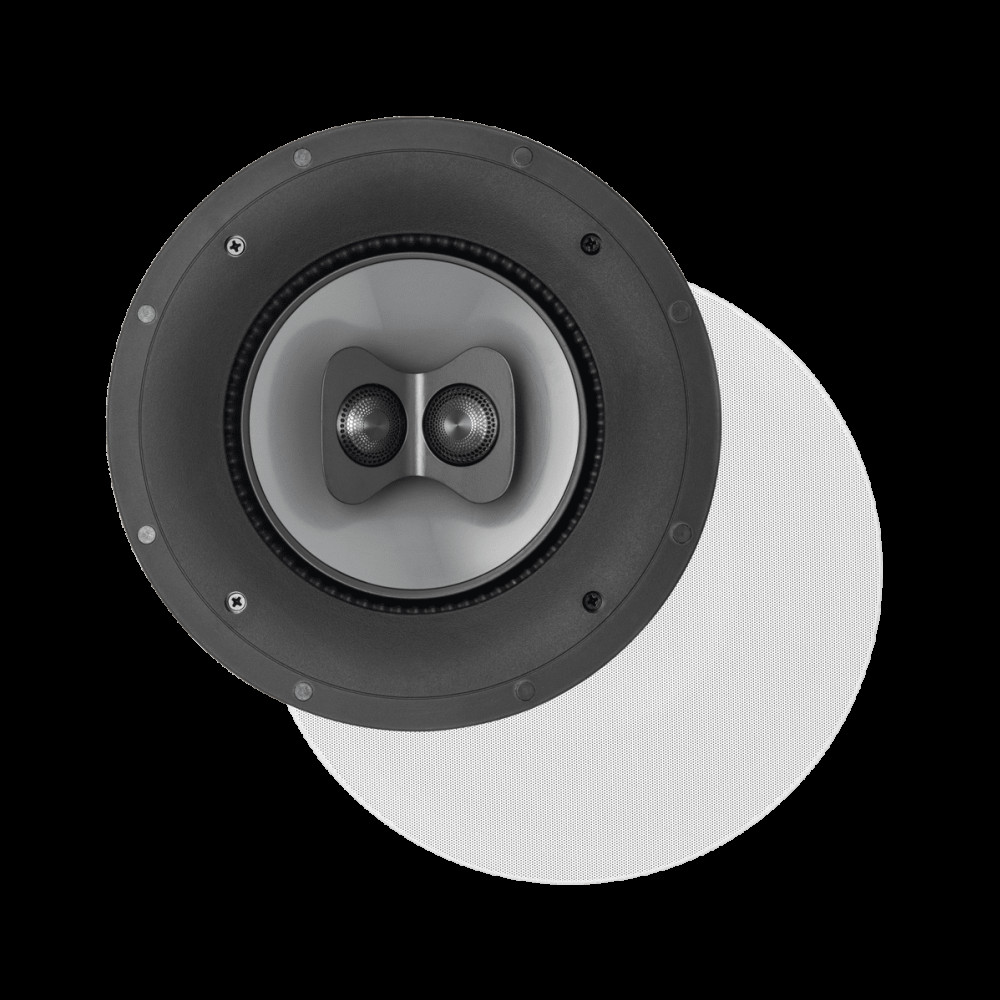

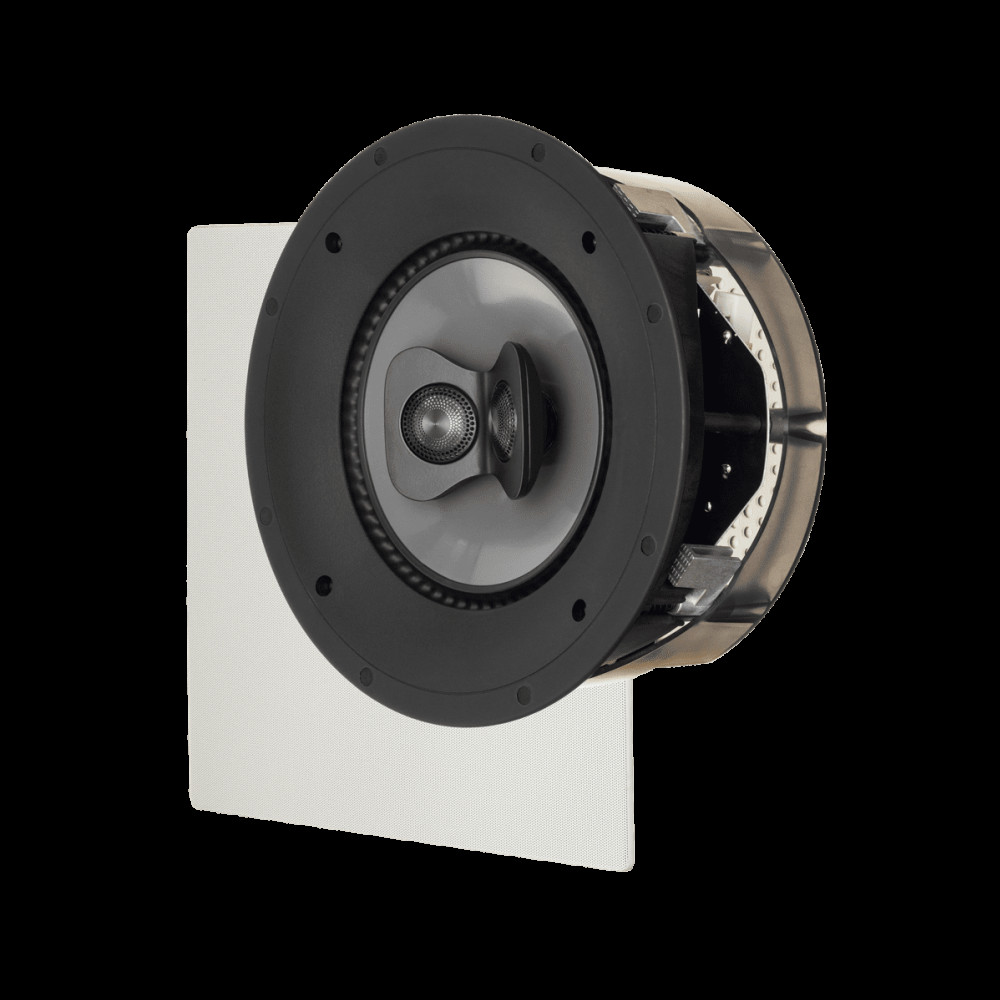

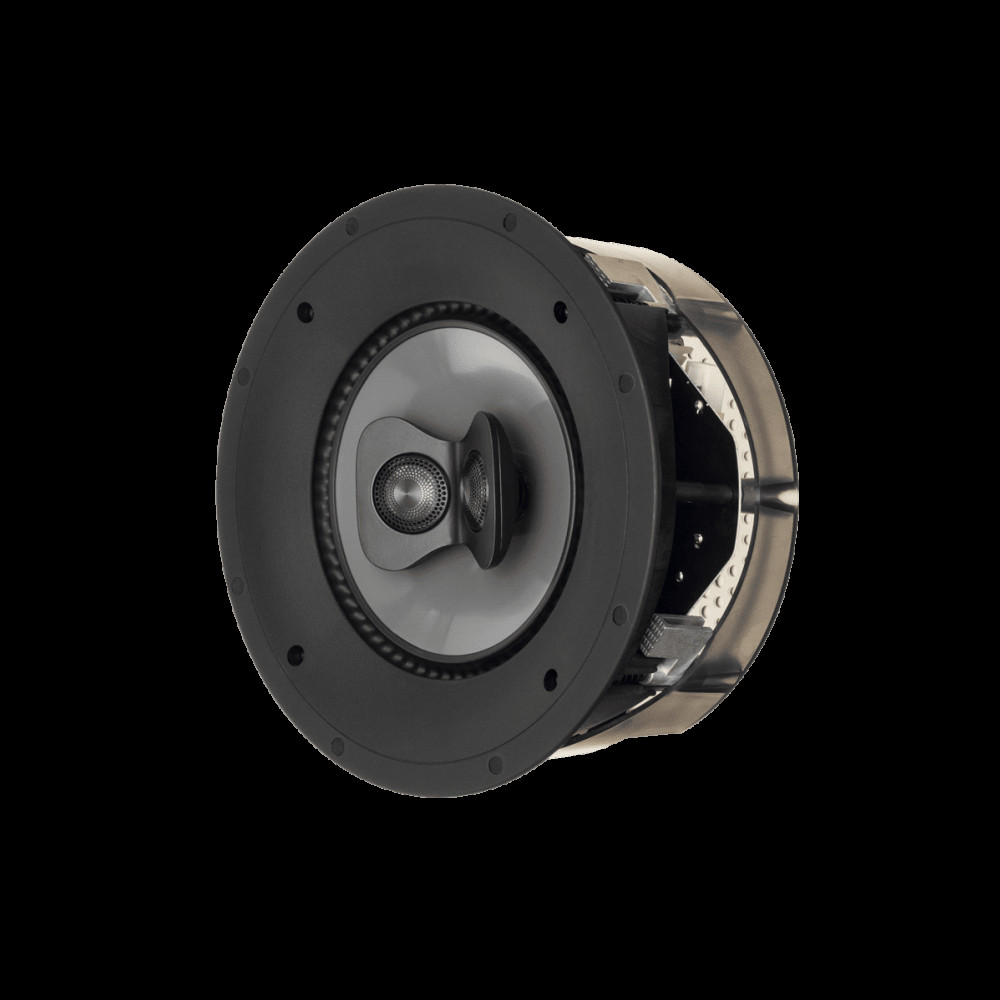

Paradigm CI Pro P80-SM Active Ceiling Speaker
8 Round In-Ceiling, 3-driver, 2-way in-ceiling, switchable stereo/mono, SHOCK-MOUNT Isolation Mounting System, nylon-blended rigid baffle
General
Design
3-driver, 2-way in-ceiling, switchable stereo/mono, SHOCK-MOUNT™ Isolation Mounting System, nylon-blended rigid baffle
Finishes
White, paintable grille, black/grey speaker
Functions
Crossover
2nd-order electro-acoustic at 2.0 kHz
Frequency Response
±3 dB from 64 Hz - 22 kHz
Frequency Response 30° Off-Axis
±3 dB from 64 Hz - 18 kHz
High Frequency Driver
Two 1" (2.5cm) X-PAL™ domes, ferro-fluid damped / cooled, Reduced Edge Diffraction (RED™) Technology, Perforated Phase-Aligning (PPA™) Tweeter Lens
Impedance
Compatible with 8 ohms
LOW FREQUENCY EXTENSION
40 Hz
Mid/Bass Frequency Driver
8" (20.3cm) mineral-filled polypropylene cone, overmolded Active Ridge Technology (ART™) surround, die-cast aluminum chassis
Sensitivity
92.5 dB / 88.5 dB
Inputs
Maximum Input Power
100 W Mono / 50 W Stereo
Power
Amplifier Power
15 - 110 W Mono; 15 - 55 W / channel Stereo Input
Dimensions
Cut Out Dimensions
9.1875" (23.3cm) Diameter
Mounting Depth
3.875" (9.8cm)
Overall Dimensions
10.25" (26.0cm) Diameter 4.5" (11.4cm) Depth
