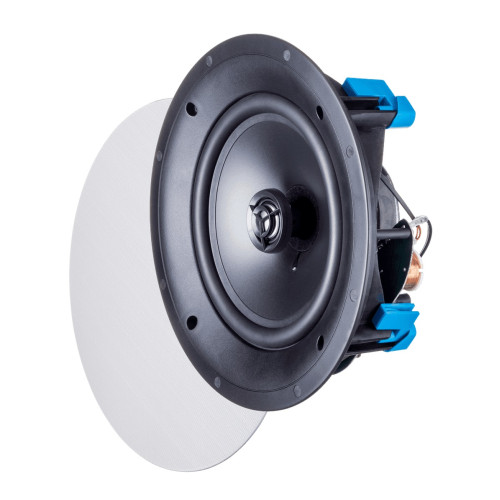

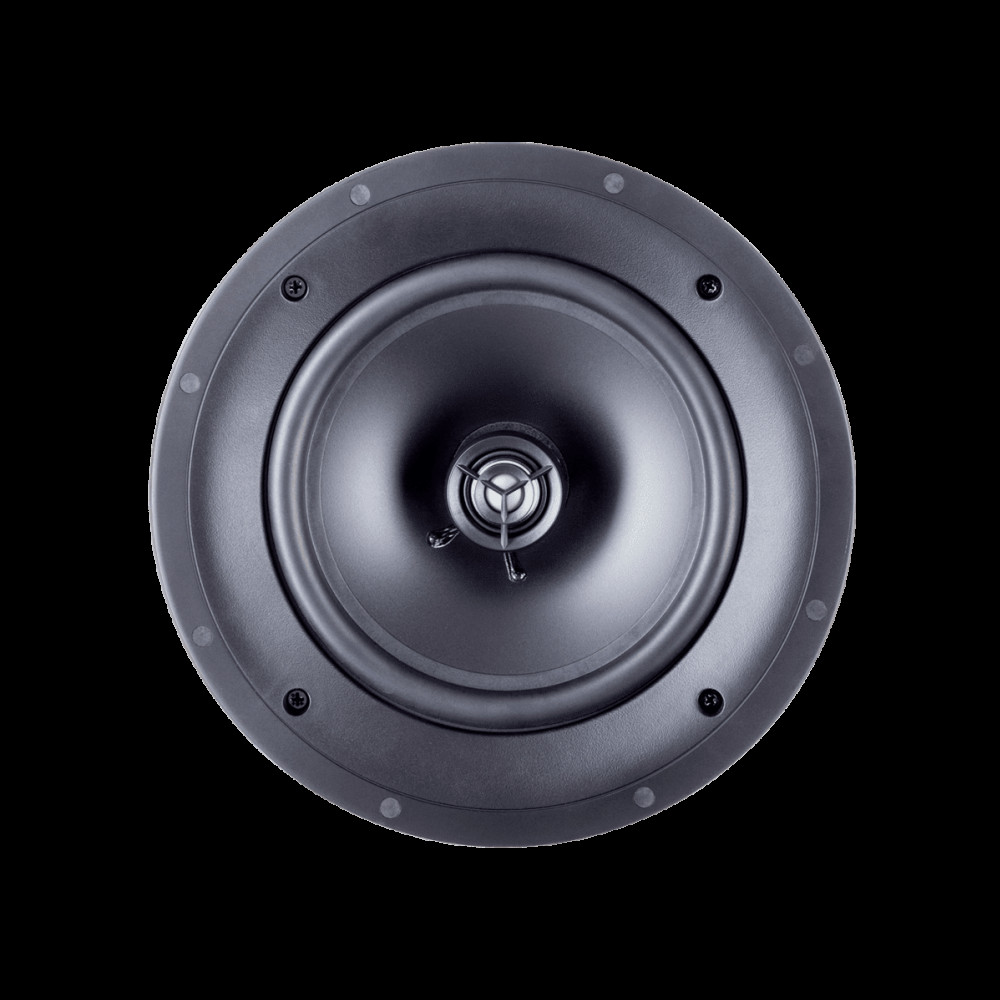

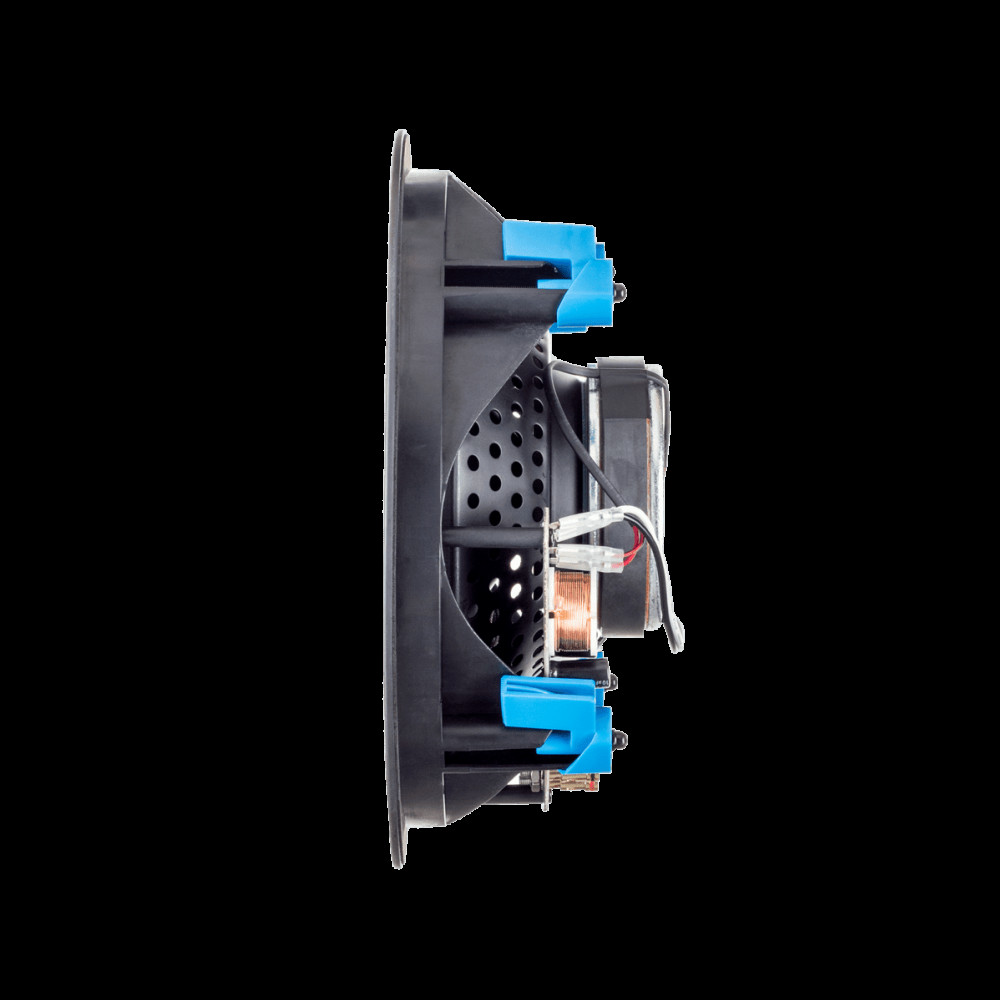

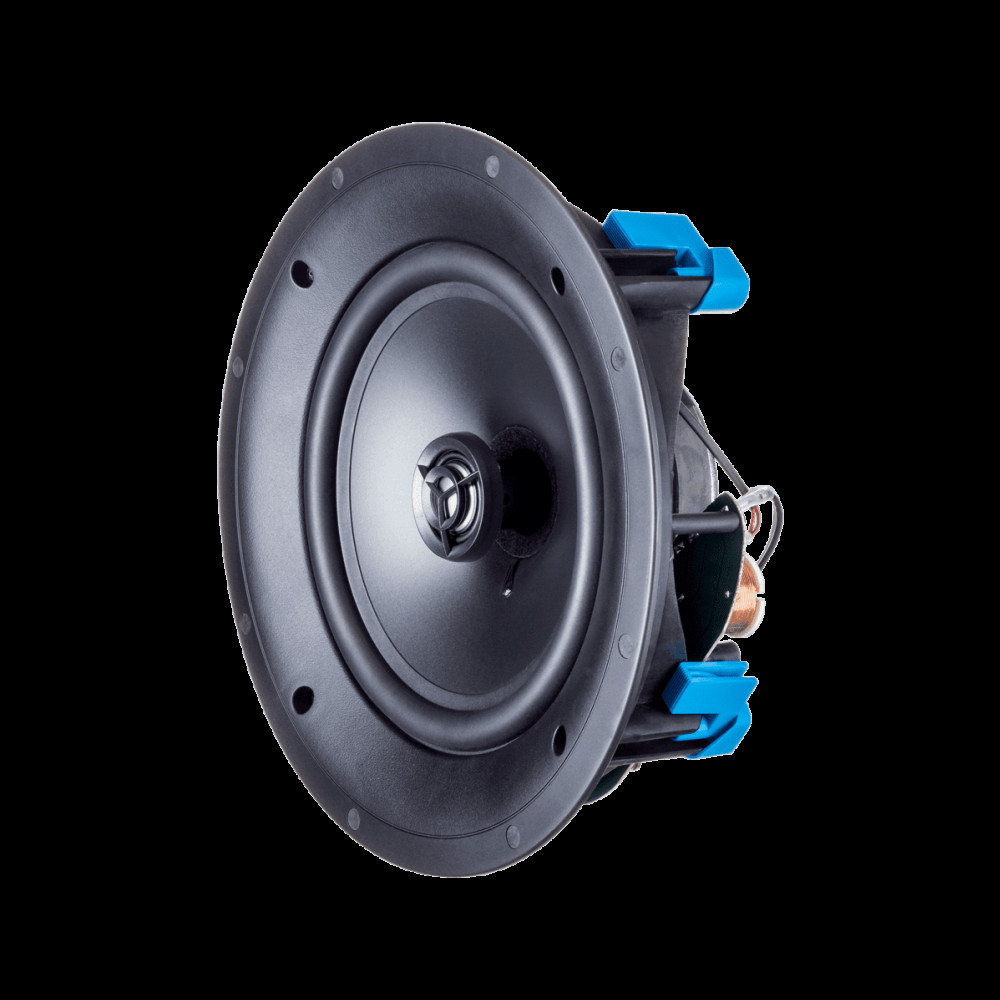

Paradigm CI Home H80-R Active Ceiling Speaker
8 Round In-Ceiling, 2-driver 2-way, ABS chassis/mounting clamps
General
Design
2-driver, 2-way in-ceiling, ABS chassis & mounting clamps
Finishes
White, paintable grille
Functions
Crossover
2nd-order electro-acoustic at 2.5 kHz
Frequency Response
±2 dB from 60 Hz - 20 kHz
Frequency Response 30° Off-Axis
±2 dB from 60 Hz - 18 kHz
High Frequency Driver
1" (2.5cm) PTD™ dome
Impedance
Compatible with 8 ohms
LOW FREQUENCY EXTENSION
45 Hz
Mid/Bass Frequency Driver
8" (20.3cm) mineral-filled polypropylene cone
Sensitivity
90 dB / 86 dB
Inputs
Power
Dimensions
Cut Out Dimensions
9.375" (23.8cm) Diameter
Mounting Depth
3.375" (8.6cm)
Overall Dimensions
10.375" (26.4cm) Diameter 4" (10.2cm) Depth
