CI Home H65-SM
6-1/2 Round In-Ceiling with Dual-Directional Soundfield™, 3-driver 2-way, ABS chassis/mounting clamps...
View all
Specifications
-
Finishes
White, paintable grille
-
Crossover
Two 2nd-order electro-acoustic at 3.0 kHz
-
Frequency Response
±2 dB from 70 Hz - 20 kHz
-
Frequency Response 30° Off-Axis
±2 dB from 70 Hz - 15 kHz
-
High Frequency Driver
Two 3/4" (1.9cm) PTD™ domes
All specifications

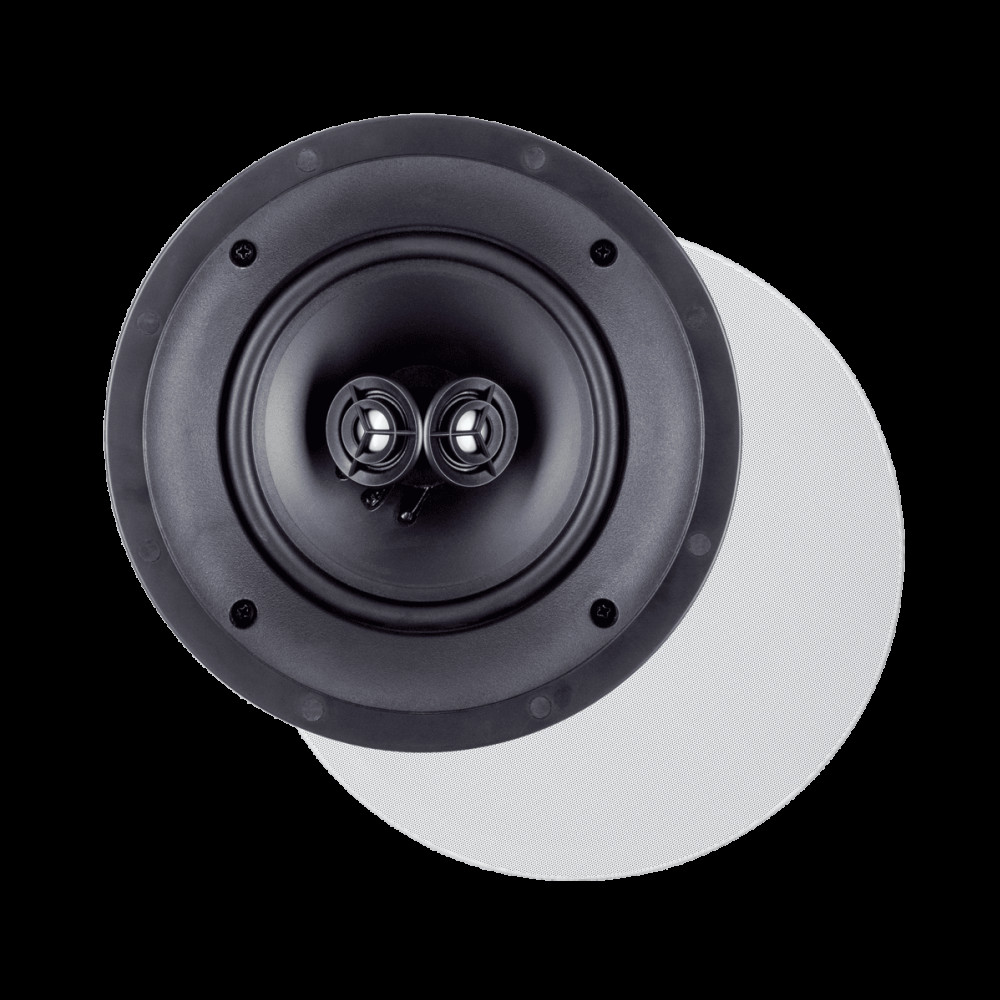

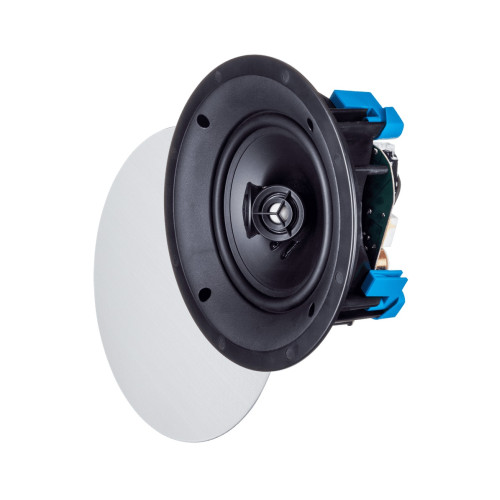

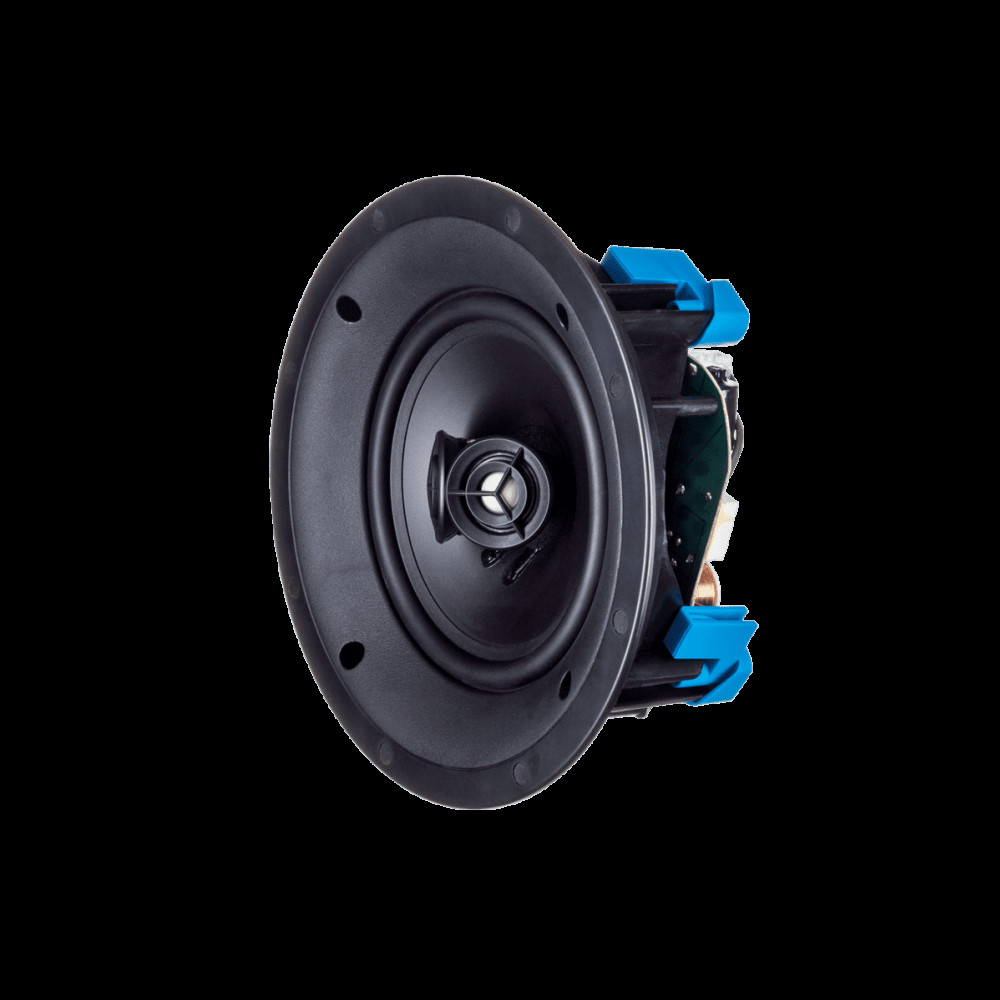

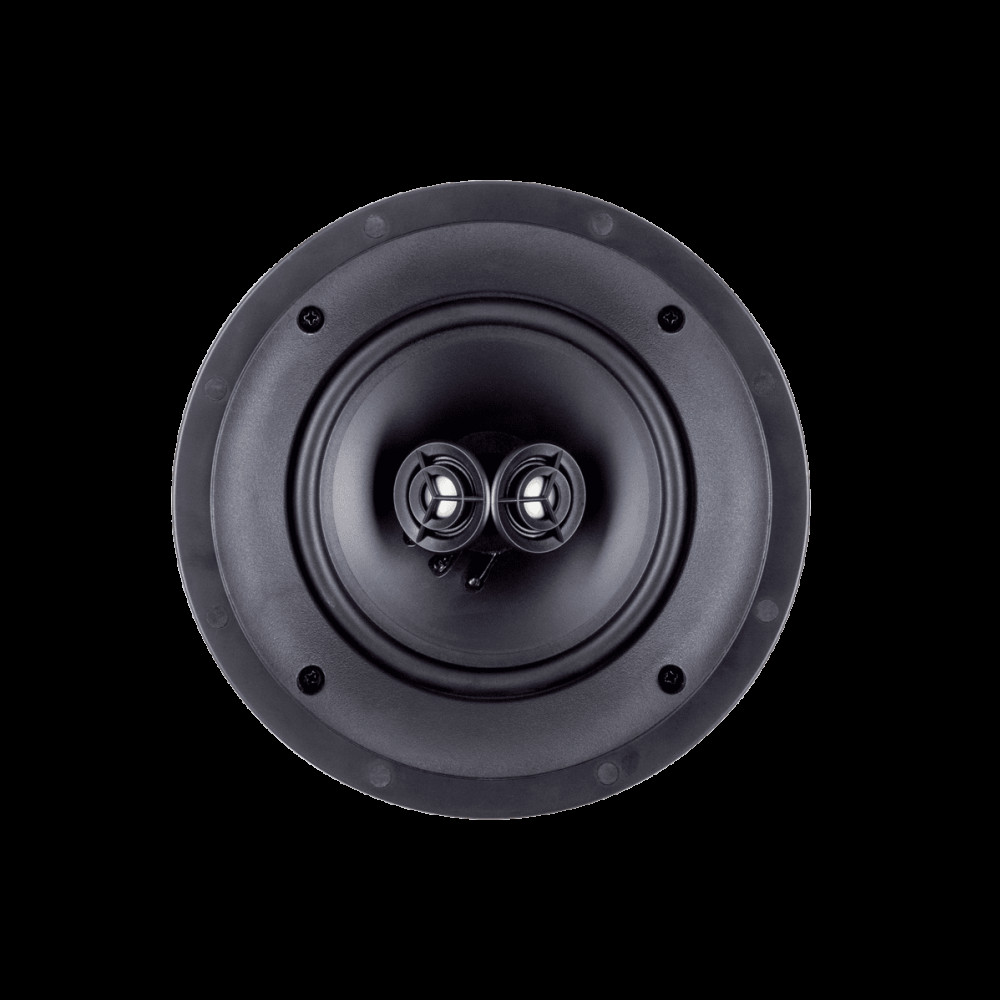

Paradigm CI Home H65-SM Active Ceiling Speaker
6-1/2 Round In-Ceiling with Dual-Directional Soundfield™, 3-driver 2-way, ABS chassis/mounting clamps
General
Design
3-driver, 2 x 2-way in-ceiling, switchable stereo/mono, ABS chassis & mounting clamps
Finishes
White, paintable grille
Functions
Crossover
Two 2nd-order electro-acoustic at 3.0 kHz
Frequency Response
±2 dB from 70 Hz - 20 kHz
Frequency Response 30° Off-Axis
±2 dB from 70 Hz - 15 kHz
High Frequency Driver
Two 3/4" (1.9cm) PTD™ domes
Impedance
Compatible with 8 ohms
LOW FREQUENCY EXTENSION
52 Hz
Mid/Bass Frequency Driver
6.5" (16.5cm) mineral-filled polypropylene cone, dual voice-coil
Sensitivity
89 dB / 85 dB
Inputs
Maximum Input Power
100 W Mono / 50 W Stereo
Power
Amplifier Power
15-80W Mono / 15-40 W/Channel Stereo
Dimensions
Cut Out Dimensions
7.75" (19.7cm) Diameter
Mounting Depth
3" (7.6cm)
Overall Dimensions
8.75" (22.2cm) Diameter 3.625" (9.2cm) Depth
