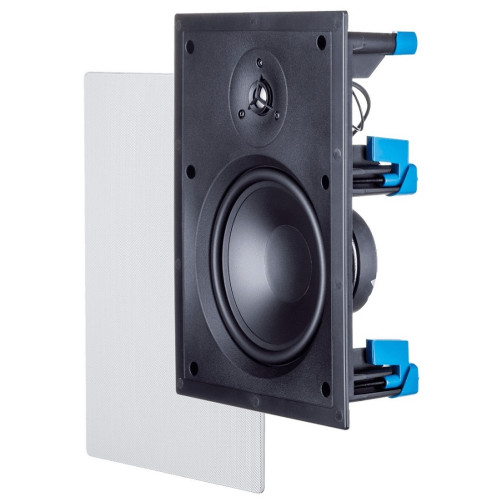

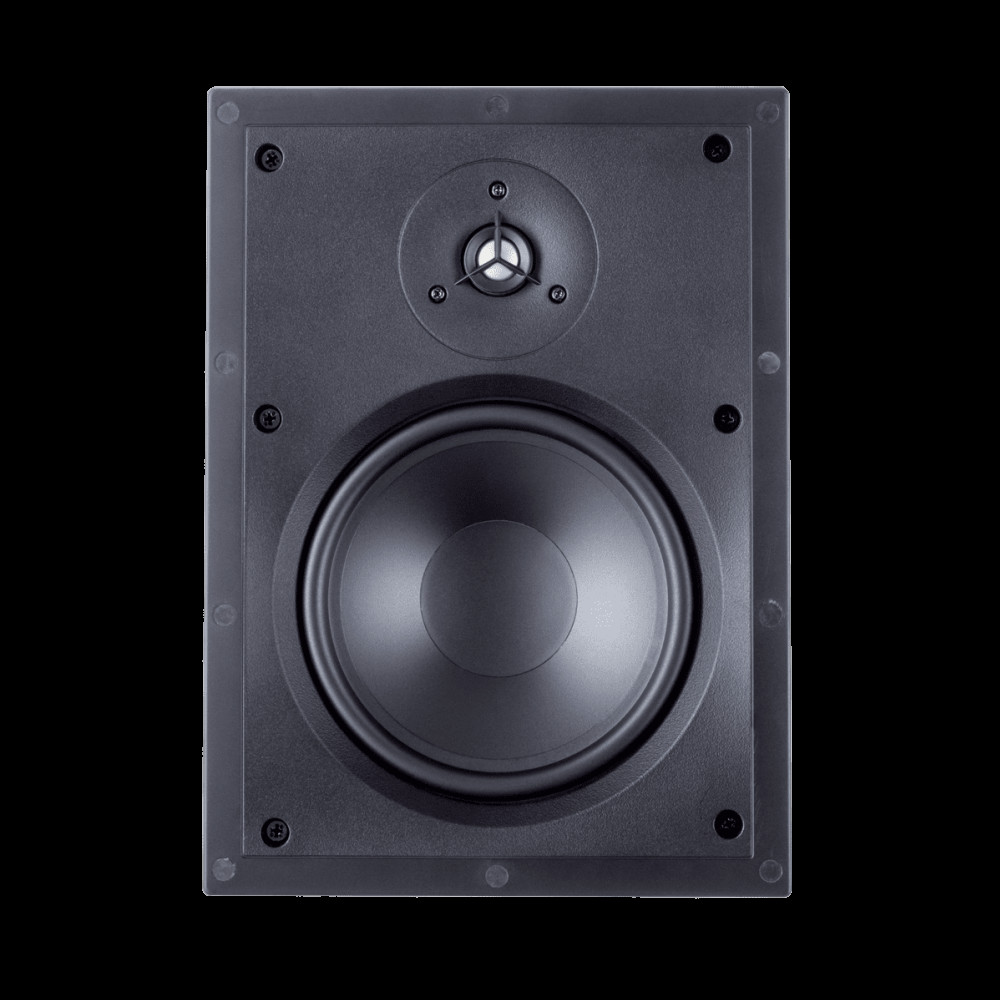

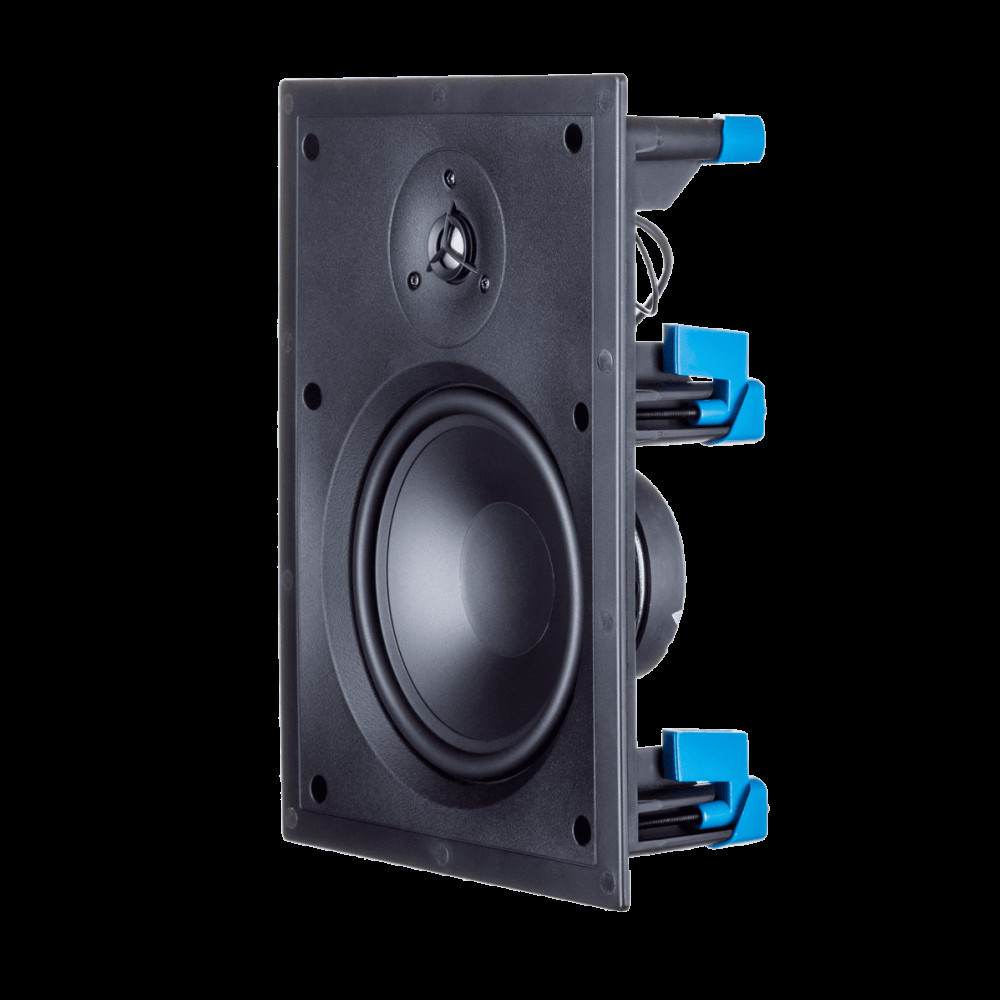

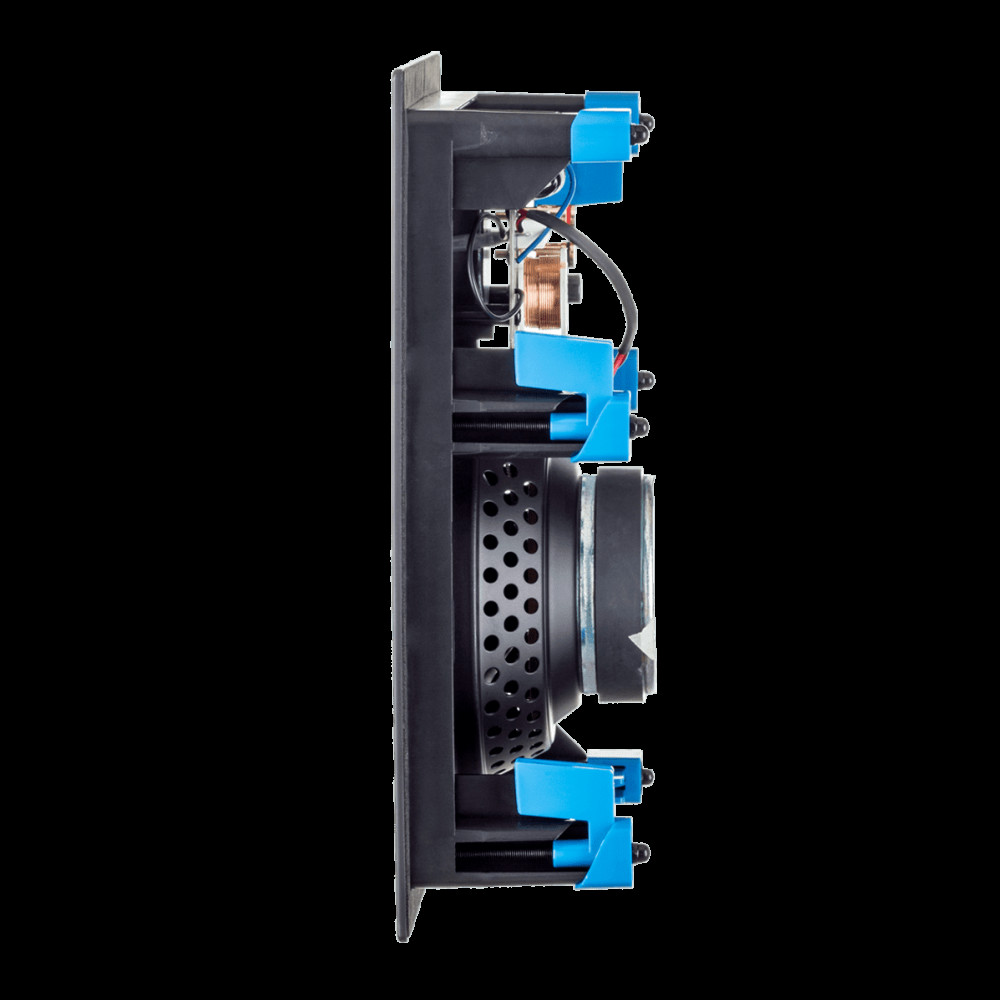

Paradigm CI Home H65-IW Wall Speakers

Paradigm CI Home H65-IW Wall Speakers

SKU: 2680

CI Home H65-IW

6-1/2 In-Wall, 2-driver 2-way, ABS chassis/mounting clamps...
View all
Specifications
  • Finishes White, paintable grille
  • Crossover 2nd-order electro-acoustic at 2.5 kHz
  • Frequency Response ±2 dB from 70 Hz - 20 kHz
  • Frequency Response 30° Off-Axis ±2 dB from 70 Hz - 18 kHz
  • High Frequency Driver 3/4" (1.9cm) PTD™ dome
All specifications

Please call us for more information

We also offer you
Free selection of cables
0 GBP
Connection and setup
param-tool
Call an expert
Paradigm CI Home H65-IW Wall Speakers
6-1/2 In-Wall, 2-driver 2-way, ABS chassis/mounting clamps
Specifications
General
Design
2-driver, 2-way in-wall, ABS chassis & mounting clamps
Finishes
White, paintable grille
Functions
Crossover
2nd-order electro-acoustic at 2.5 kHz
Frequency Response
±2 dB from 70 Hz - 20 kHz
Frequency Response 30° Off-Axis
±2 dB from 70 Hz - 18 kHz
High Frequency Driver
3/4" (1.9cm) PTD™ dome
Impedance
Compatible with 8 ohms
LOW FREQUENCY EXTENSION
55 Hz
Mid/Bass Frequency Driver
6.5" (16.5cm) mineral-filled polypropylene cone
Sensitivity
89 dB / 85 dB
Inputs
Maximum Input Power
60 W
Power
Amplifier Power
15-90 W
Dimensions
Cut Out Dimensions
10.125" (25.7cm) Height 7.0625" (17.9cm) Width
Mounting Depth
2.75" (7.0cm)
Overall Dimensions
11.125" (28.3cm) Height 8.125" (20.6cm) Width 3.375" (8.6cm) Depth
Weight
3.5 lbs. (1.6 kg)
