CI Home H55-R
5-1/2 Round In-Ceiling, 2-driver 2-way, ABS chassis/mounting clamps...
View all
Specifications
-
Finishes
White, paintable grille
-
Crossover
2nd-order electro-acoustic at 3.0 kHz
-
Frequency Response
±2 dB from 75 Hz - 20 kHz
-
Frequency Response 30° Off-Axis
±2 dB from 75 Hz - 18 kHz
-
High Frequency Driver
3/4" (1.9cm) PTD™ dome
All specifications

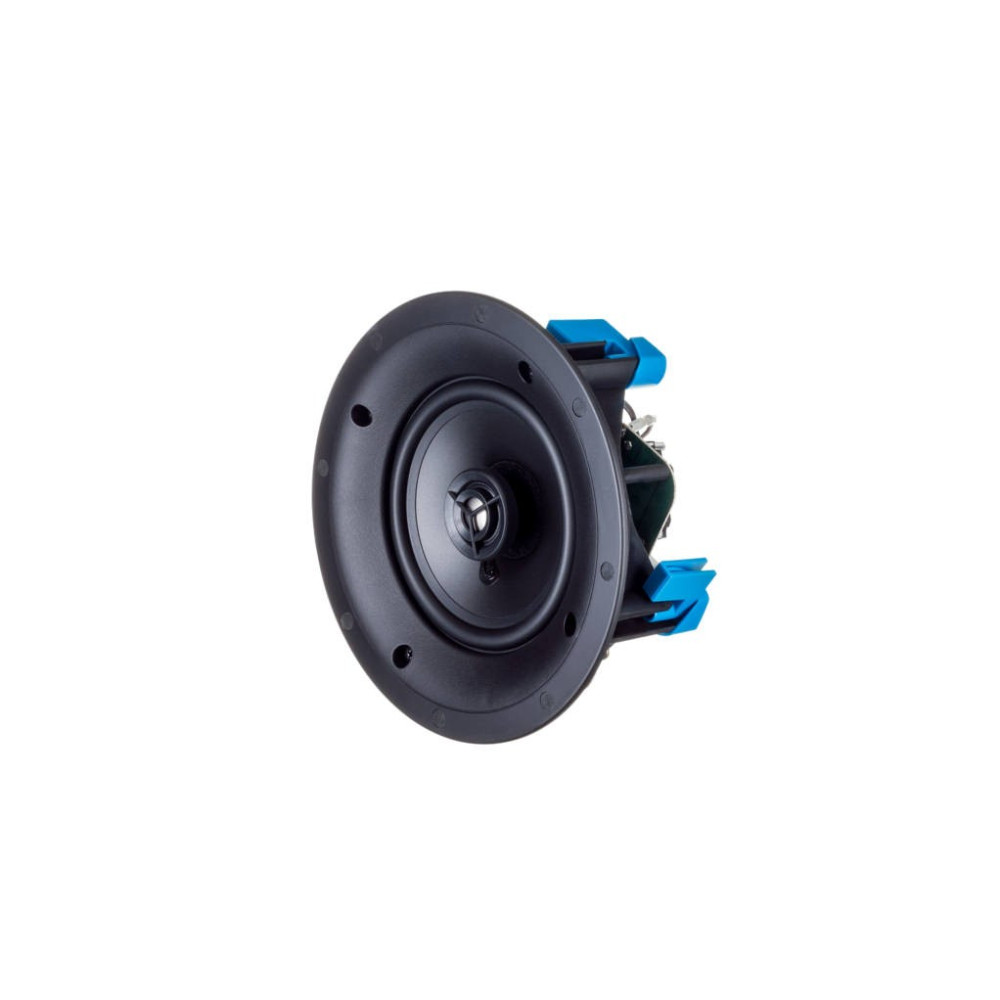

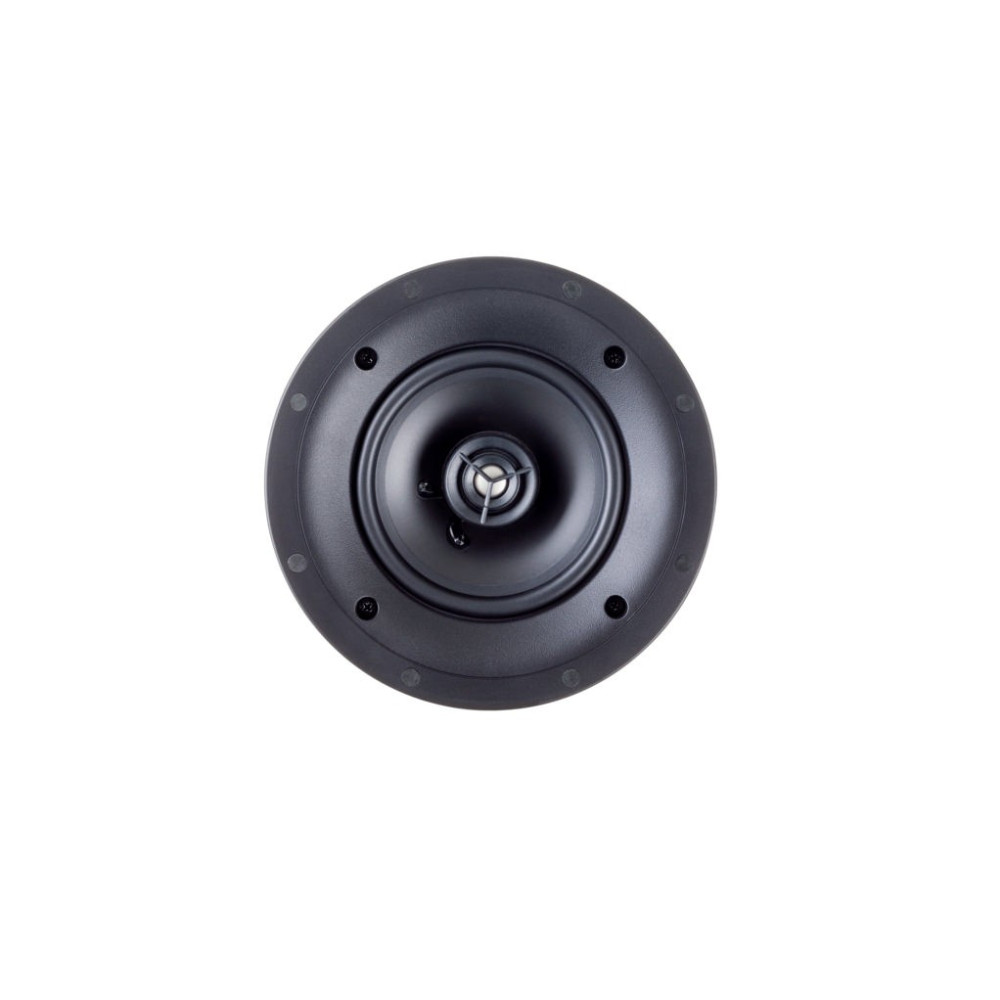

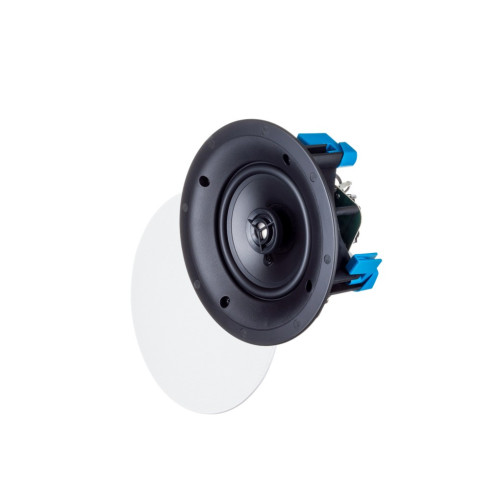

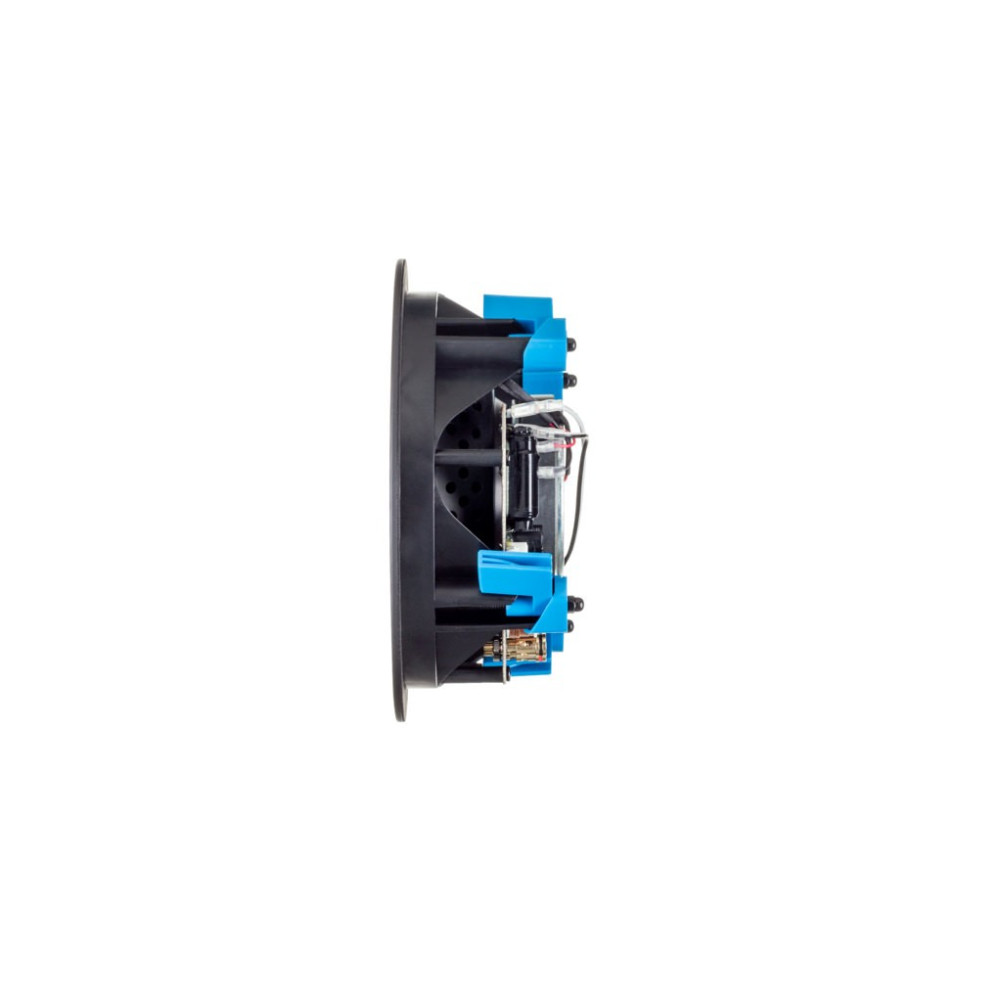

Paradigm CI Home H55-R Active Ceiling Speaker
5-1/2 Round In-Ceiling, 2-driver 2-way, ABS chassis/mounting clamps
General
Design
2-driver, 2-way in-ceiling, ABS chassis & mounting clamps
Finishes
White, paintable grille
Functions
Crossover
2nd-order electro-acoustic at 3.0 kHz
Frequency Response
±2 dB from 75 Hz - 20 kHz
Frequency Response 30° Off-Axis
±2 dB from 75 Hz - 18 kHz
High Frequency Driver
3/4" (1.9cm) PTD™ dome
Impedance
Compatible with 8 ohms
LOW FREQUENCY EXTENSION
60 Hz
Mid/Bass Frequency Driver
5.5" (14cm) mineral-filled polypropylene cone
Sensitivity
88 dB / 84 dB
Inputs
Power
Dimensions
Cut Out Dimensions
6.75" (17.1cm) Diameter
Mounting Depth
2.75" (7.0cm)
Overall Dimensions
7.75" (19.7cm) Diameter 3.375" (8.6cm) Depth
