Paradigm CI Elite E7-LCR Wall Speakers
4-driver, dual passive radiators, 3-way, shallow enclosure in-wall design
Specifications
General
Design
4 driver, dual passive radiators, 3 way, shallow enclosure in-wall design
Finishes
White, paintable grille
Basic
Passive Radiators
Two 8" (20.3cm) high-excursion X-PAL™ drivers, overmolded Active Ridge Technology (ART™) surrounds
Functions
Crossover
3rd order electro-acoustic at 3 kHz, 2nd order electro-acoustic @ 480 Hz
Frequency Response
±3 dB from 80 Hz - 22 kHz
Frequency Response 30° Off-Axis
±3 dB from 80 Hz - 19 kHz

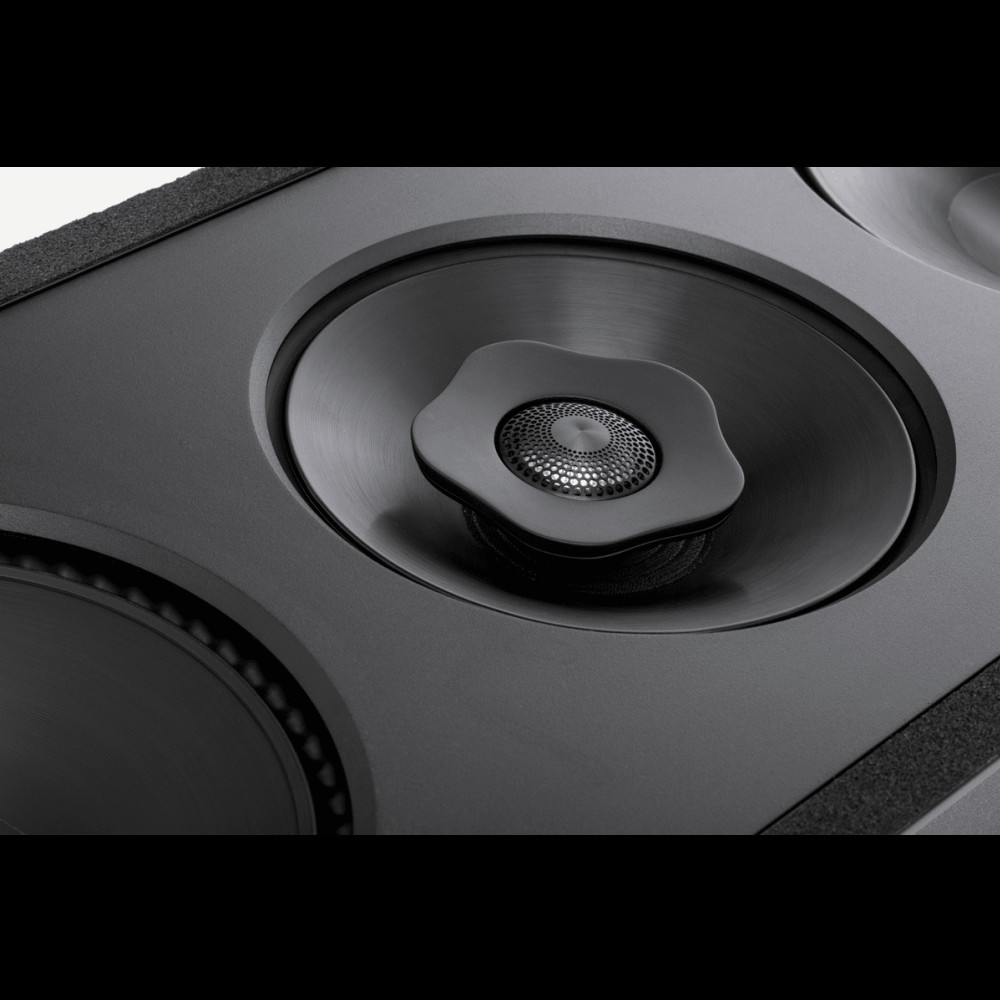

High Frequency Driver
1" (2.5cm) X-PAL™ dome, ferro-fluid damped / cooled, Reduced Edge Diffraction (RED™) Technology, Perforated Phase-Aligning (PPA™) Tweeter Lens
Impedance
Compatible with 8 ohms
Low Frequency Driver
Two 8" (20.3cm) high-excursion X-PAL™ drivers, overmolded Active Ridge Technology (ART™) surround, die-cast aluminum chassis, 1.5" (3.8cm) high-temp voice coil
LOW FREQUENCY EXTENSION
55 Hz
Midrange Frequency Driver
6.5" (16.5cm) coaxial X-PAL™ driver, die-cast aluminum chassis, 1.5" (3.8cm) high-temp voice coil
Sensitivity
95 dB / 92 dB
Inputs
Maximum Input Power
150 W
Power
Amplifier Power
15-220 W
Dimensions
Cut Out Dimensions
42" (106.7cm) Height, 8.5" (21.6cm) Width
Mounting Depth
3.875" (9.8cm)
Overall Dimensions
43" (109.2cm) Height 9.5" (24.1cm) Width 4.125" (10.5cm) Depth
Weight
33.0 lbs. (14.9 kg)
