CI Elite E65-R
In-ceiling round (optional square grille).1″ X-PAL™ tweeter with exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology.6.5″ X-PAL™ brushed pure-aluminum bass/midrange driver with overmolded...
View all
Specifications
-
Finishes
White, paintable grille, black speaker
-
Crossover
3rd-order electro-acoustic at 2.0 kHz
-
Frequency Response
±3 dB from 75 Hz - 22 kHz
-
Frequency Response 30° Off-Axis
±3 dB from 75 Hz - 18 kHz
-
Impedance
Compatible with 8 ohms
All specifications

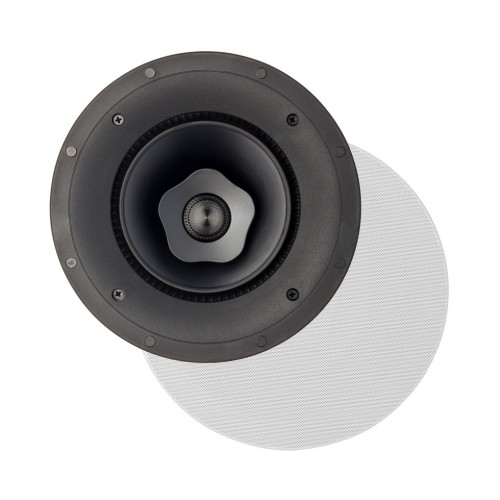

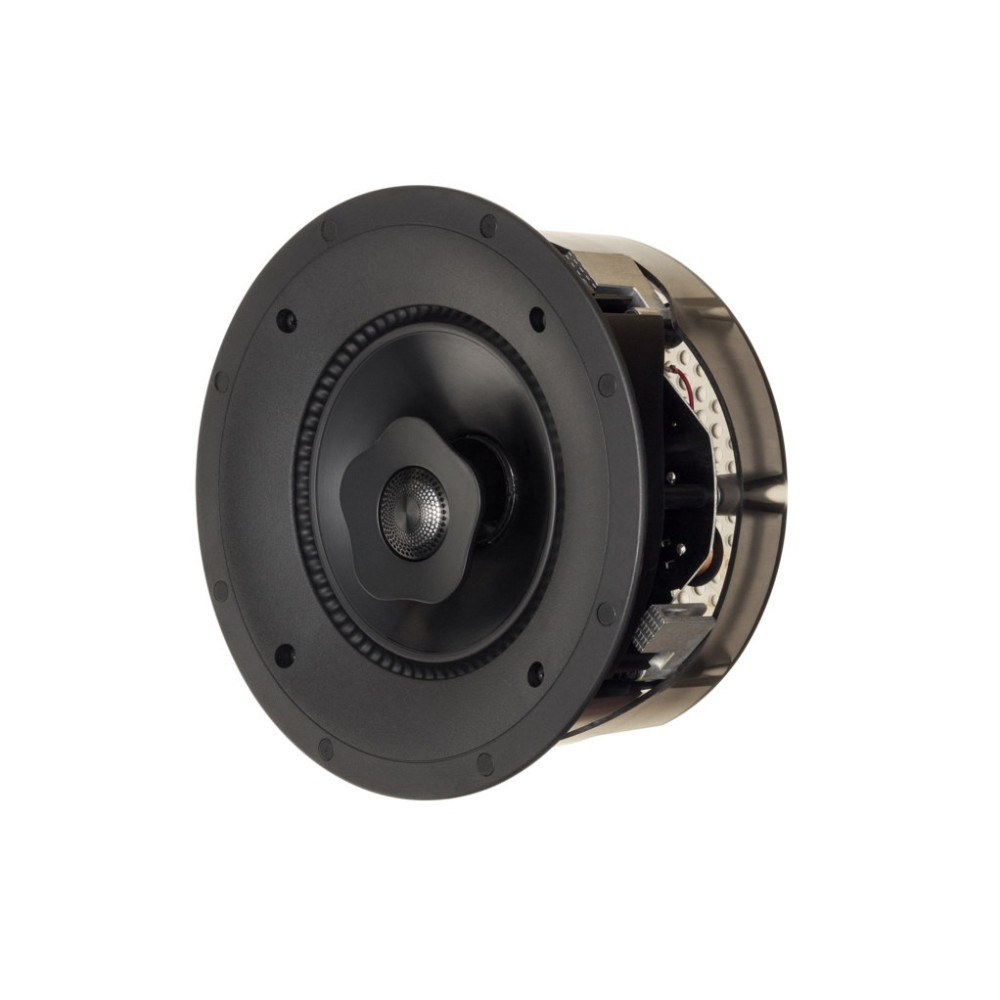

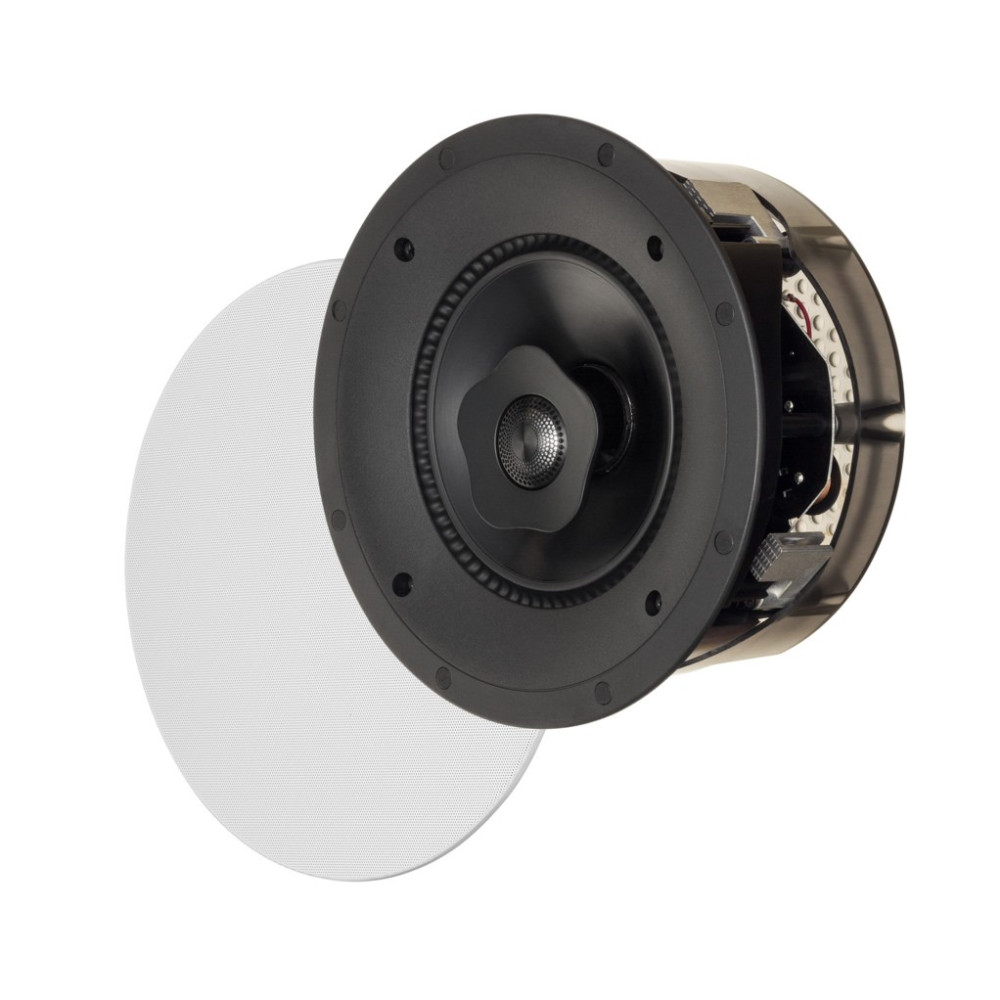

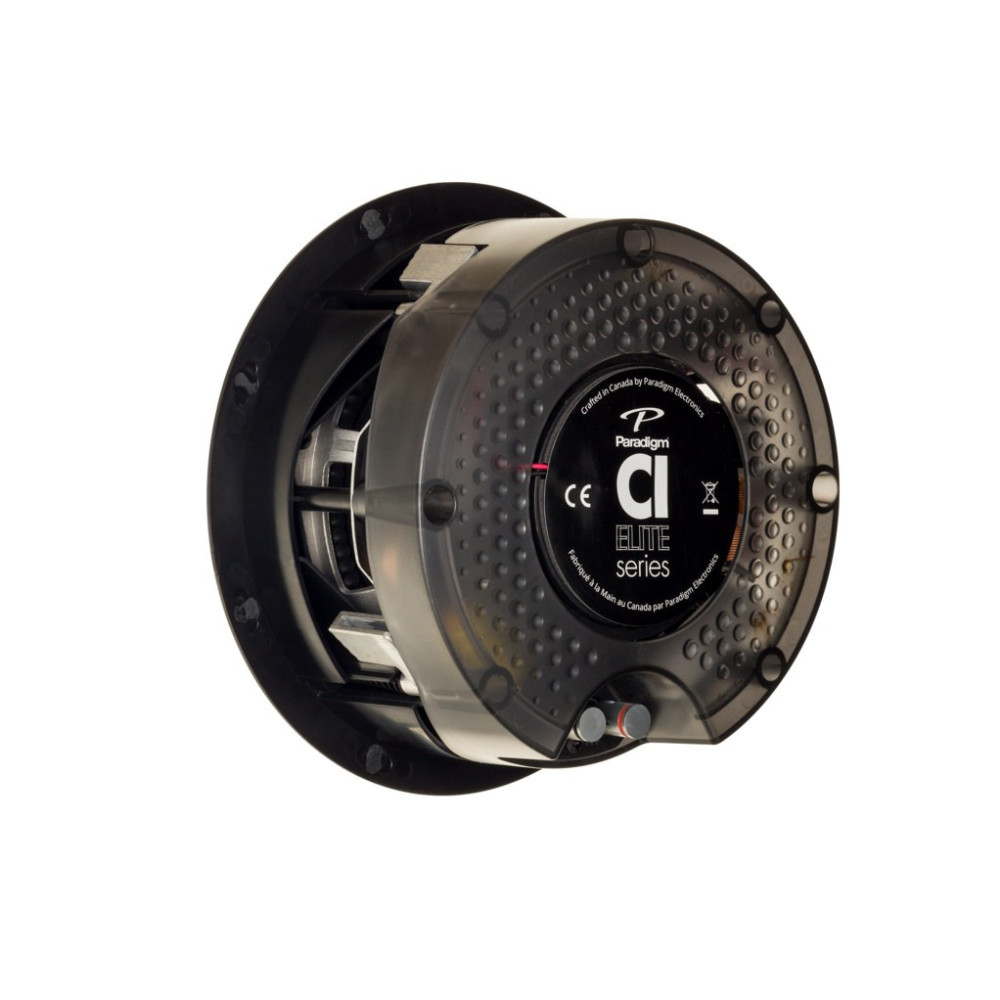

Paradigm CI Elite E65-R Active Ceiling Speaker
In-ceiling round (optional square grille).
1″ X-PAL™ tweeter with exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology.
6.5″ X-PAL™ brushed pure-aluminum bass/midrange driver with overmolded ART™ surround and die-cast aluminum chassis.
1.5″ high-temp voice coil for high-power handling.
Bezel-Free Micro-Perf Grille.
General
Design
2-driver, 2-way in-ceiling, SHOCK-MOUNT™ Isolation Mounting System, nylon-blended rigid baffle
Finishes
White, paintable grille, black speaker
Functions
Crossover
3rd-order electro-acoustic at 2.0 kHz
Frequency Response
±3 dB from 75 Hz - 22 kHz
Frequency Response 30° Off-Axis
±3 dB from 75 Hz - 18 kHz
High Frequency Driver
1" (2.5cm) X-PAL™ dome, ferro-fluid damped / cooled, Reduced Edge Diffraction (RED™) Technology, Perforated Phase-Aligning (PPA™) Tweeter Lens
Impedance
Compatible with 8 ohms
LOW FREQUENCY EXTENSION
39 Hz
Mid/Bass Frequency Driver
6.5" (16.5cm) X-PAL™ driver, overmolded Active Ridge Technology (ART™) surround, 1.5" high-temp voice coil, die-cast aluminum chassis
Sensitivity
92 dB / 88 dB
Inputs
Maximum Input Power
100 W
Power
Amplifier Power
15 - 150 W
Dimensions
Cut Out Dimensions
7.75" (19.7cm) Diameter
Mounting Depth
3.625" (9.2cm)
Overall Dimensions
8.875" (22.5cm) Diameter 4.25" (10.8cm) Depth
