CI Elite E5-LCR
4-driver, dual passive radiator, 3-way, shallow enclosure in-wall design...
View all
Specifications
-
Finishes
White, paintable grille
-
Frequency Response
±3 dB from 82 Hz - 22 kHz
-
Frequency Response 30° Off-Axis
±3 dB from 82 Hz - 19 kHz
-
Impedance
Compatible with 8 ohms
-
LOW FREQUENCY EXTENSION
56 Hz
All specifications

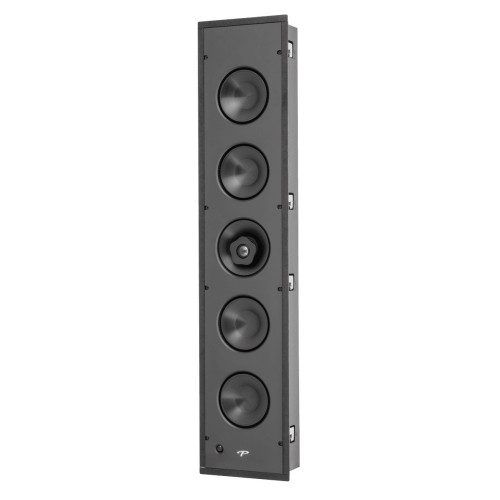

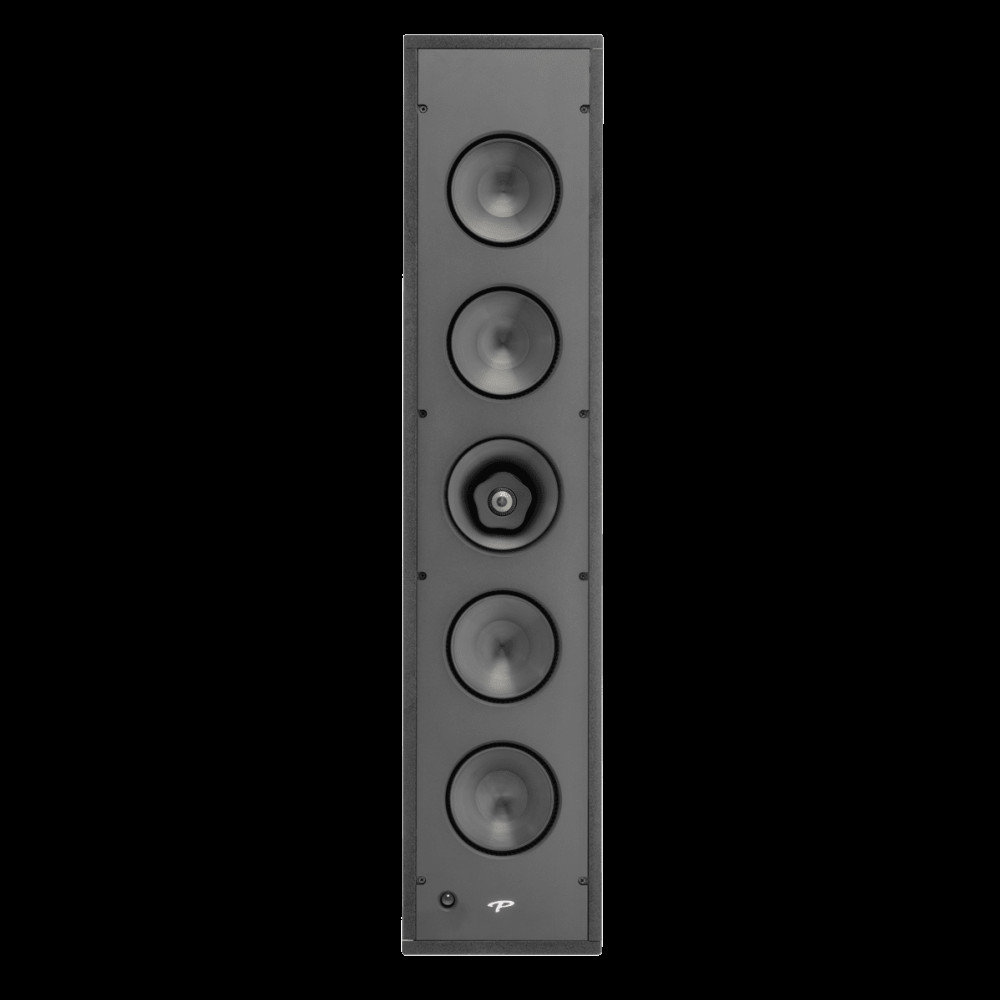

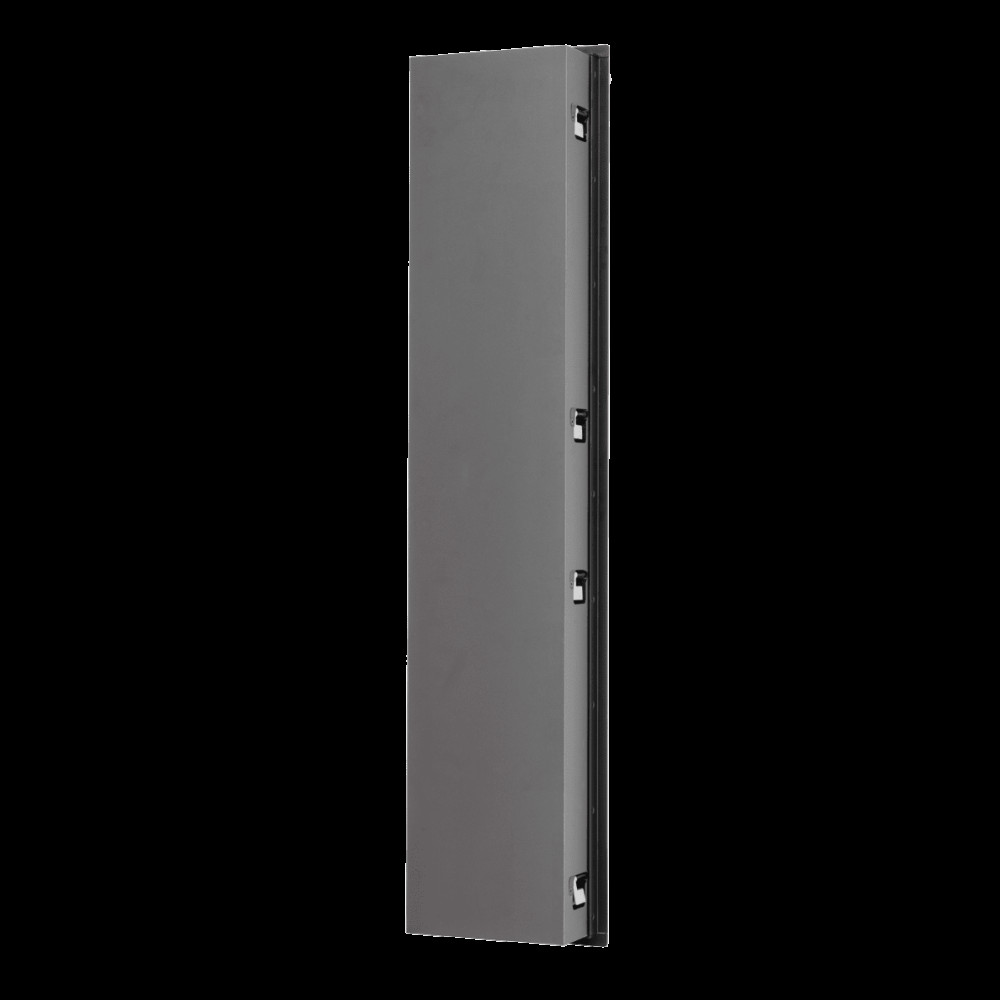

Paradigm CI Elite E5-LCR Wall Speakers
4-driver, dual passive radiator, 3-way, shallow enclosure in-wall design
General
Design
4 driver, dual passive radiators, 3 way, shallow enclosure in-wall design
Finishes
White, paintable grille
Basic
Passive Radiators
Two 6.5” (16.5cm) high-excursion X-PAL™ drivers, overmolded Active Ridge Technology (ART™) surrounds
Functions
Crossover
3rd order electro-acoustic at 3 kHz, 2nd order electro-acoustic @ 450 Hz
Frequency Response
±3 dB from 82 Hz - 22 kHz
Frequency Response 30° Off-Axis
±3 dB from 82 Hz - 19 kHz

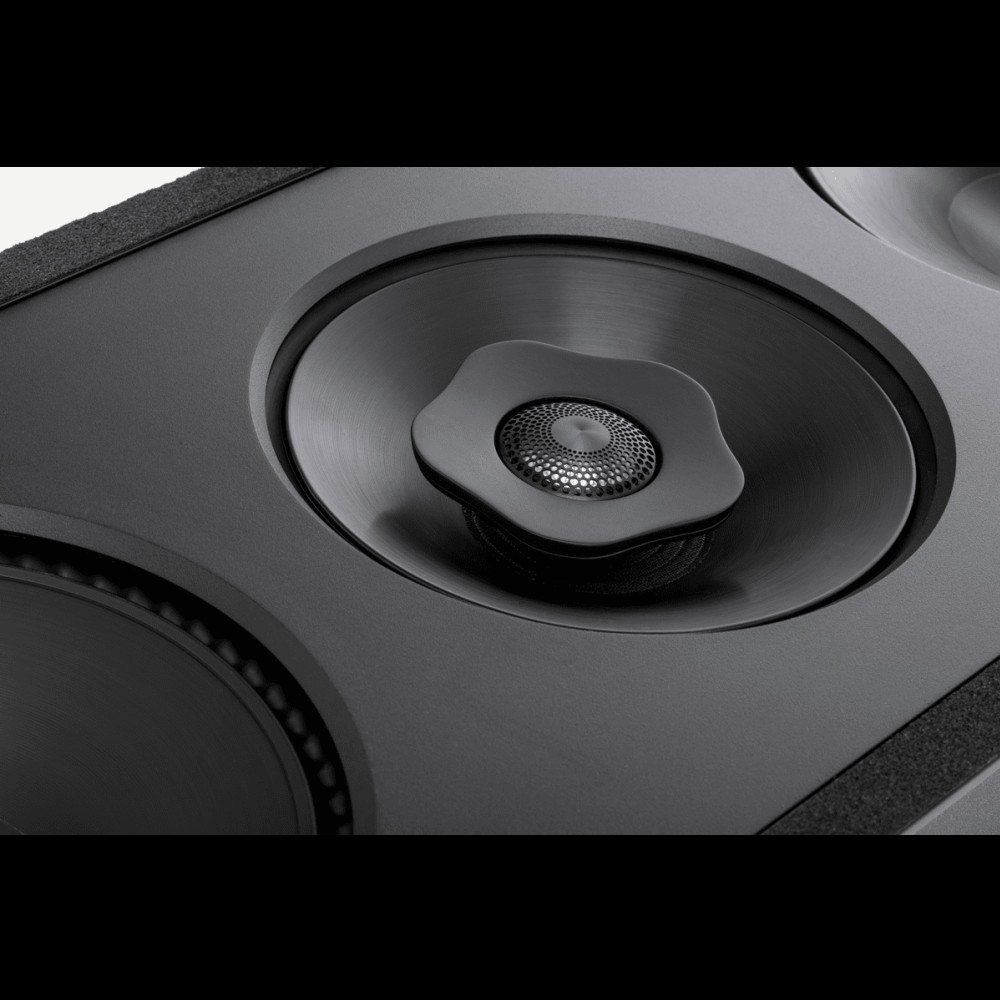

High Frequency Driver
1” (2.5cm) X-PAL™ dome, ferro-fluid damped / cooled, Reduced Edge Diffraction (RED™) Technology, Perforated Phase-Aligning (PPA™) Tweeter Lens
Impedance
Compatible with 8 ohms
Low Frequency Driver
Two 6.5” (16.5cm) high-excursion X-PAL™ drivers, overmolded Active Ridge Technology (ART™) surround, die-cast aluminum chassis, 1.5” (3.8cm) high-temp voice coil
LOW FREQUENCY EXTENSION
56 Hz
Midrange Frequency Driver
6.5” (16.5cm) coaxial X-PAL™ driver, die-cast aluminum chassis,1.5” (3.8cm) high-temp voice coil
Sensitivity
94 dB / 91 dB
Inputs
Maximum Input Power
150 W
Power
Dimensions
Cut Out Dimensions
42" (106.7cm) Height 8.5" (21.6cm) Width
Mounting Depth
3.875" (9.8cm)
Overall Dimensions
43" (109.2cm) Height 9.5" (24.1cm) Width 4.125" (10.5cm) Depth
Weight
34.0 lbs. (15.4 kg)
