BasX A7
The BasX A7 is a seven channel power amplifier that delivers 90 watts / channel into 8 Ohms and 125 watts / channel into 4 Ohms, all channels driven, with a rated THD+N of < 0.02%, and an A-weighted S/N ratio of 115 dB. The BasX A7 features a heav...
View all
Specifications
-
Frequency Response
10 Hz to 80 kHz +0/-1.8 dB
-
Weight
30 lbs (unboxed)
36 lbs (boxed)
All specifications

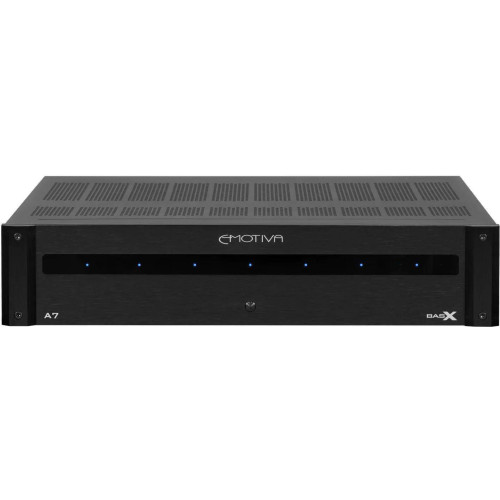

Emotiva BasX A7 Seven-Channel Power Amplifier
The BasX A7 is a seven channel power amplifier that delivers 90 watts / channel into 8 Ohms and 125 watts / channel into 4 Ohms, all channels driven, with a rated THD+N of < 0.02%, and an A-weighted S/N ratio of 115 dB.
The BasX A7 features a heavy-duty linear power supply, high-quality Class A/B amplification, transparent fault protection, and a trigger input and output. High quality industry standard unbalanced RCA inputs enable the BasX A7 to be used with almost any preamp or processor and audiophile grade five way speaker terminals accept banana plugs, spade lugs, or bare wire. These features combine to enable the BasX A7 to deliver true audiophile performance and sound quality at an amazingly affordable price.
The BasX A7 is a great choice if you're looking for a high quality seven channel amplifier to go with a processor in a new 7.1 channel surround sound system, or if you're looking for an easy way to upgrade the amps in your existing surround sound receiver.
Functions
Frequency Response
10 Hz to 80 kHz +0/-1.8 dB
Trigger
Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required.
Trigger Output: 12 VDC; can drive any load up to 120 mA.
Outputs
Outputs
90 watts RMS per channel; 20 Hz – 20 kHz; THD < 0.1%; into 8 Ohms.
125 watts RMS per channel; 1 kHz; THD < 1%; into 4 Ohms.
Power
Power Requirements
115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected).
Dimensions
Dimensions
17” wide x 4” high x 15-1/2” deep (not including connectors).
21-1/2” wide x 8” high x 21” deep (boxed).
Weight
30 lbs (unboxed)
36 lbs (boxed)
