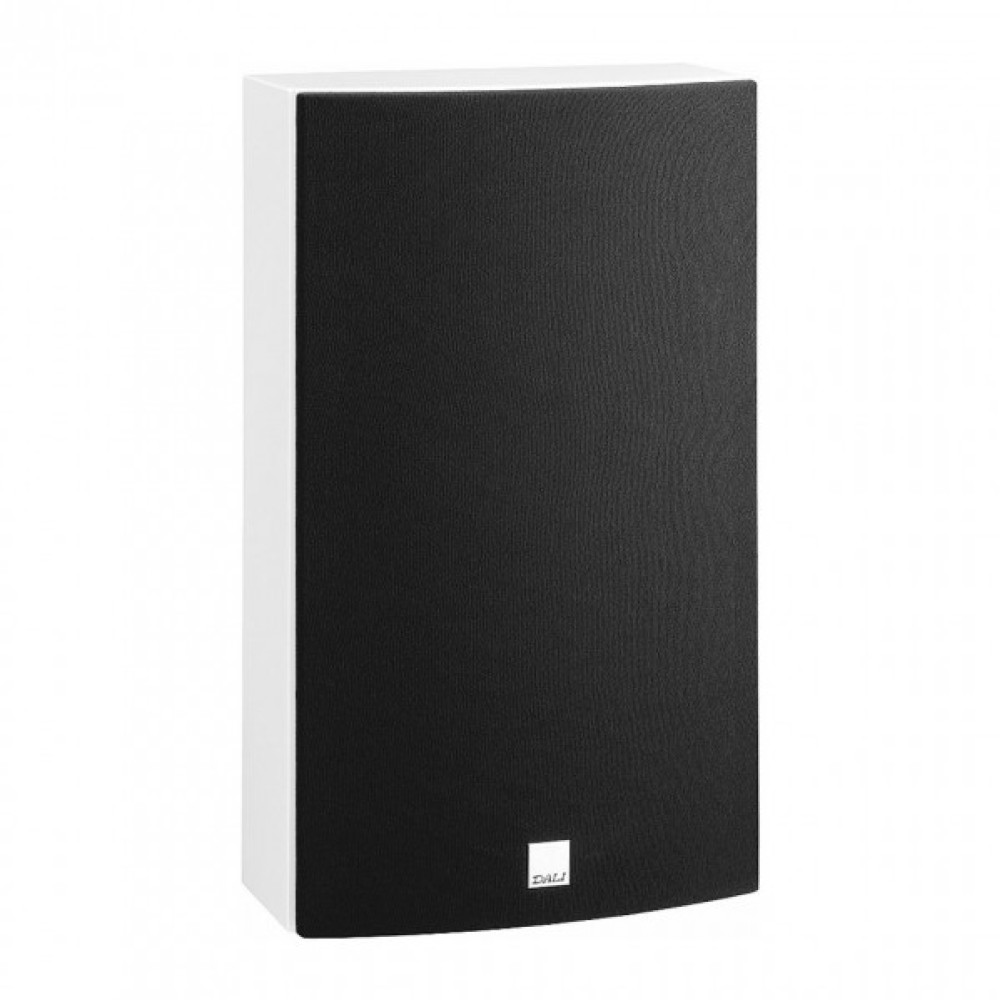

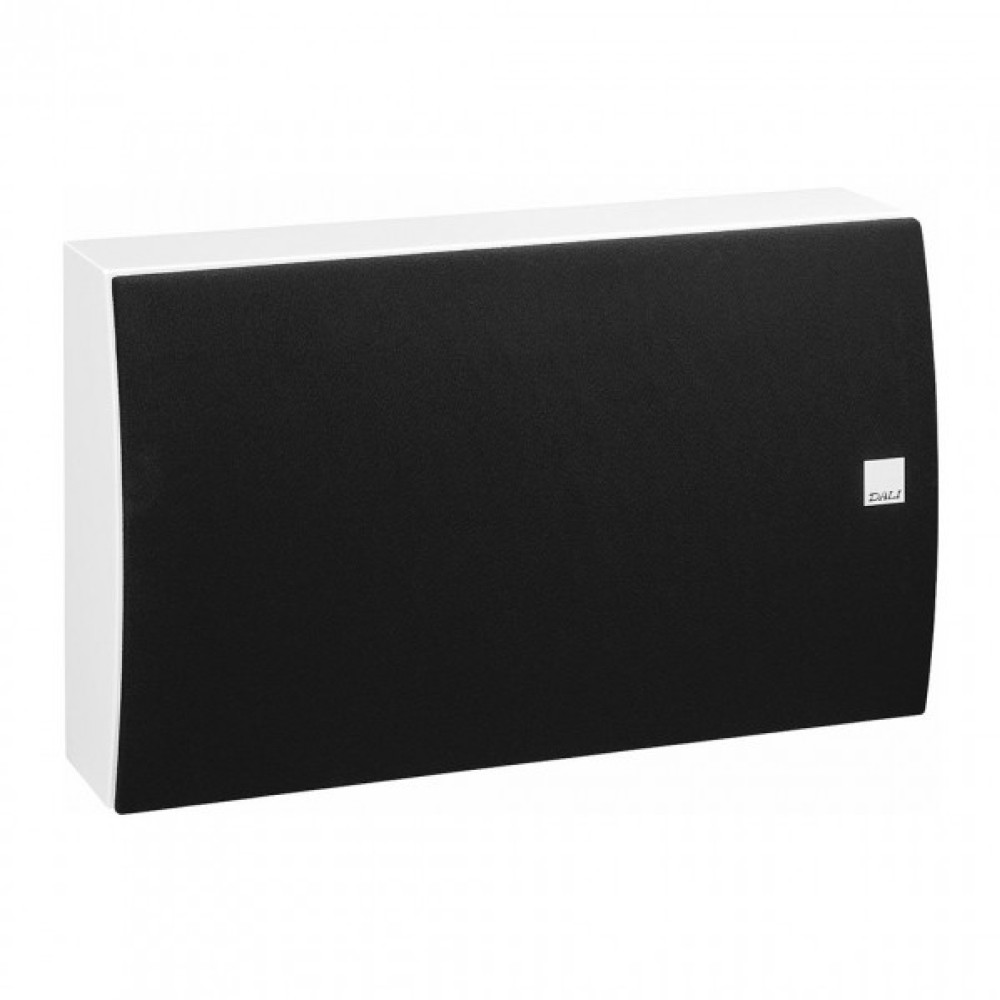

Dali Wall Speaker Rubicon Lcr White (High Gloss)
The DALI Rubicon range sets a new benchmark for affordable audiophile sound quality reproduction. The perfect blend of beautiful design and sound engineering expertise. True music lovers want their music to come alive, DALI have experimented with new and old technologies to product a range of speaker that can transport listeners back to the venue or studio at the moment their music of choice was originally recorded.

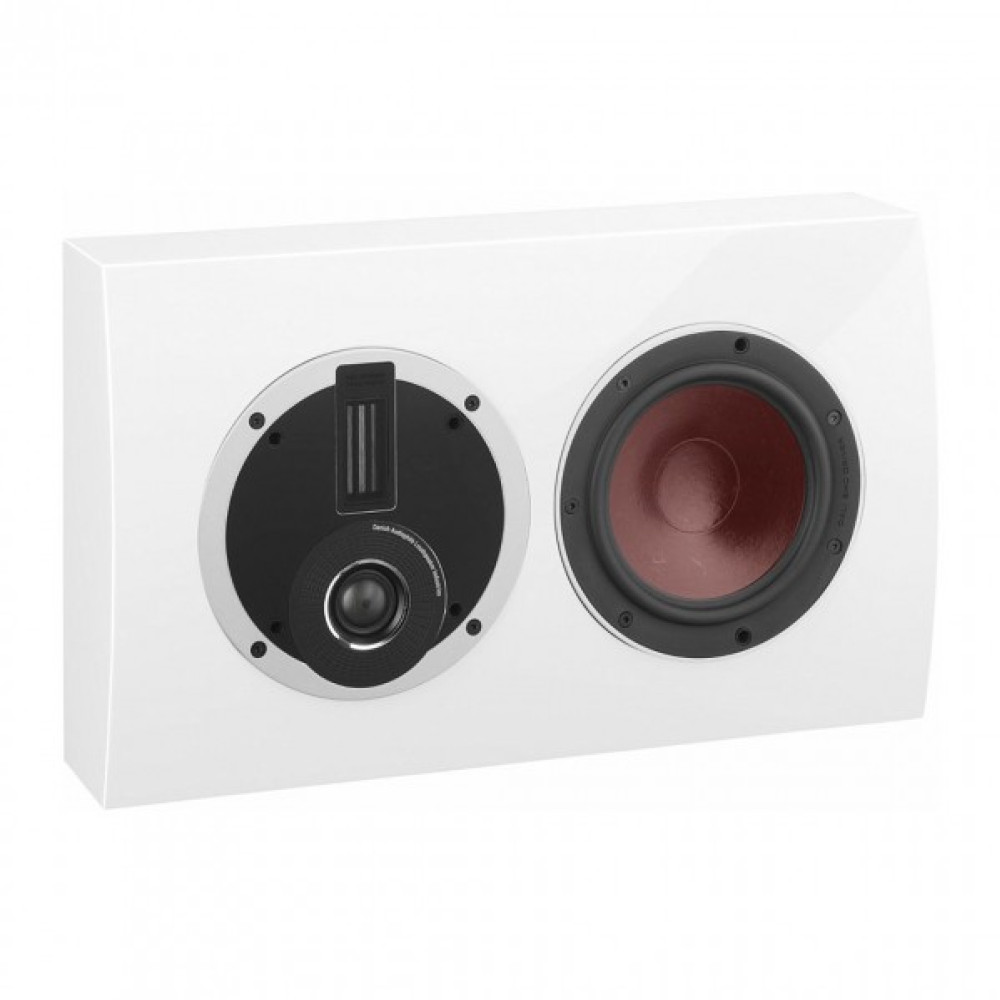

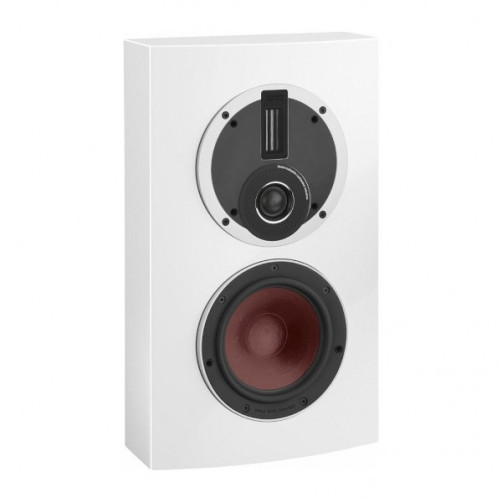

The wall mounted Rubicon LCR is simply born to stand out in both sound performance and design with the hybrid tweeter module and the wood fibre low loss driver. The compact Rubicon LCR delivers a wide dynamic range, a coherent sound with lots of details all together with a bass response that’s unrivalled in its class.
The rotatable hybrid tweeter module makes it possible to use the Rubicon LCR as either the left or right channel, or as a centre speaker. The 6½ inch woofer uses the ingeniously designed bass port to reach maximum bass depth. With the Rubicon LCR, you are sure to experience a sound performance that will dazzle you and leave you with goose bumps.
Low Loss Technology
The cone used in the Rubicon series draws upon the heritage from the Epicon technologies, and has a light, rigid and randomly uneven structure. This lower the complexity of the central part of the motor, ensures even piston like movements, reduces the possibility of surface resonance greatly and creates an extremely low distortion within the Rubicon series. The soft low-loss rubber surround is designed and bespoke specifically for the Rubicon series, and all of the components are situated in an aluminium chassis designed for maximum airflow around the cone and magnet system.
SMC Magnet
All variants in the Rubicon series feature woofers with the 6.5-inch wood-fibre cones and the DALI SMC (soft magnetic compound) magnet motor system which reduces distortion as never heard before. The secret is the individually coated magnet granules that make it possible to mould a a strong magnet that’s not electrically conductive. The unique SMC magnet system and a reworked version of DALI's hybrid tweeter module work together, along with individual bass ports for each woofer, to produce audio exactly as the recording artist originally imagined it.
Tweeters
The Rubicon series makes use of both the soft dome tweeter working alone, and the hybrid tweeter configuration an amazing rendering of the high frequencies. The voice coil used in the Rubicon series is designed to be very light and agile in order to achieve a broader bandwidth. This lighter voice coil is placed inside a powerful ferrite magnet that keeps a tight control of its movements. The ribbon tweeter is the master of wide dispersion and combining it with the soft dome, the tweeter module starts working as low as 2.5 KHz. This extreme bandwidth combined with the ultra wide dispersion is an important part of the DALI sound philosophy.
General
Enclosure Type
Bass Reflex
Finish
Black High Gloss Lacquer
Rosso Veneer
Walnut Veneer
White High Gloss Lacquer
Basic
Speaker Type
Center
Front
On-Wall
Rear
Surround
Features
Recommended Amplifier Power
20W - 150W
Recommended Placement
Above/Below TV Screen
On-Wall
Functions
Bass Reflex Tuning Frequency (Hz)
49
Crossover Frequency (Hz)
3,100/ 14,000
Crossover Principle
2 + ½-way
Frequency Range (+/-3 dB) (Hz)
59 - 34.000
High Frequency Drivers
1 x 17 x 45 mm Ribbon
1 x 29 mm Soft Textile Dome
Low Frequency Driver
1 x 6½" Wood Fibre Cone
Sensitivity (2,83 V/1 m) [dB]
89
Inputs
Connection Input(s)
Single Wire
Supplied Accessories
Accessories Included
Manual
Micro Fibre Cloth
Rubber Bumpers
Dimensions
Dimensions With Base (HxWxD)
468mm x 278mm x 146mm
Recommended Distance From Wall
0 - 30cm
