Dali Wall Speaker Phantom H-120

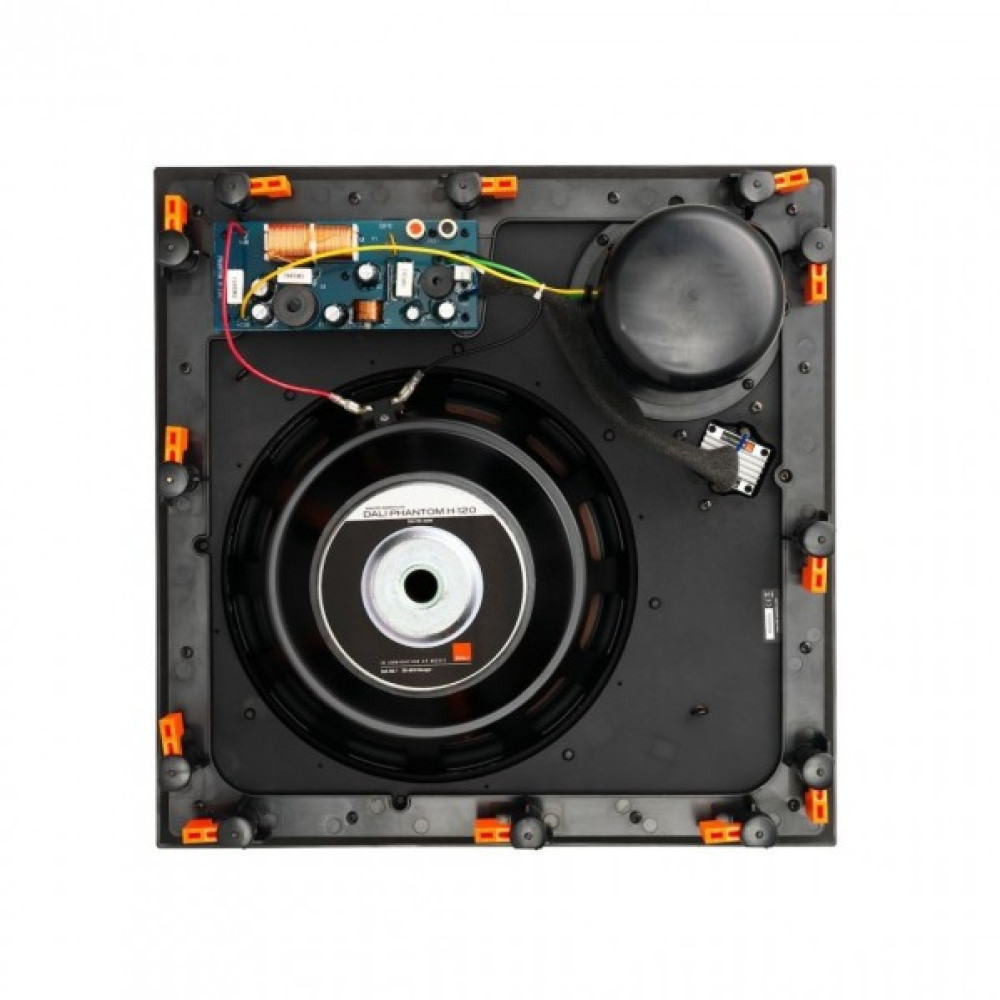

The Dali Phantom H series are an in wall speaker with traditional speaker technologies. The H-120 is the largest with an unprecedented 12 inch woofer, 5 inch mid and a 28mm tweeter. The drivers are securely mounted in the ridged front baffle with the tweeter placed close to the woofer for optimum integration. The H-120 front baffle is constructed from solid MDF which offers the drivers a solid base to work within. This ridged baffle material keeps the drivers in place, removing unwanted vibrations and ensuring optimum integration with the wall or ceiling.

WIDE DISPERSION
All DALI speakers are designed around the principle of wide dispersion. This entails an off-axis optimisation of the audio reproduction, helping deliver the music or movie audio to the largest possible part of the room. This technology is perfect for use with install speakers, since they are always mounted flush against either a wall or a ceiling. Working with the off-axis optimisation ensures that the listener will have a large sweet spot where the soundstage is perfect, but also that the sound received when away from the sweet spot is still of a very high quality.

Tweeter
A large part of the DALI sonic definition comes from the use of a soft dome tweeter. The ferrite driven magnet motor system is able to handle more power and disperses heat generated in the voice coil rapidly, thereby reducing power compression. The ultra light-weight weave fabric combined with the magnet motor system allows the tweeter to reproduce high frequencies with higher accuracy. The positioning of the tweeter front plate near the dome has been optimised to create the optimal working conditions for the soft dome. The aim is to combine an extended frequency response with wide dispersion and low colouration, and improve the integration of both the tweeter and the mid/bass driver.

Woofer
By basing the woofer around the trademark DALI material, the lightweight and very well behaved wood fibre cone, we lay the ground work for reproducing every small detail in the music, delivering a high resolution mid range and the precise and coherent bass DALI is well known for. To support this even further the cone terminates in a low-loss rubber surround and both the surround and the spider holding the cone-assembly are optimized for long excursions. This is controlled by a powerful double magnet motor system that ensures that the cone-assembly can start and stop promptly, and deliver a high magnetic flux further helping to increase power handling.

Crossover
Every component in the crossover is carefully selected and is designed especially for the PHANTOM H-120 model. All PHANTOM H series models include PTC (Polymeric Positive Temperature Coefficient device) safety function. This safeguards the driver components from overheating if played at very loud volumes over a long period. All internal wiring is optimised for the speaker design and is placed and secured to eliminate the possibility of rattling. The terminals are placed directly on the crossover for the shortest possible signal path, and the spring loaded grip ensures the best possible long lasting connection to the speaker wire.
