220173
DALI's most compact subwoofer, the E-9 F is still brimming with class despite it's sprightly size. DALI have crammed in some fearsome power and used some pretty impressive components in order to produce a bass speaker that will provide balance and te...
View all
Specifications
- Enclosure Type Bass Reflex
- Recommended Placement Floor in the corner or side
- Bass Reflex Tuning Frequency (Hz) 39
- Crossover Frequency (Hz) 40 - 120 Hz
- Frequency Range (+/-3 dB) (Hz) 37 - 200
We also offer you
Free selection of cables
0 GBP
Connection and setup
Call an expert

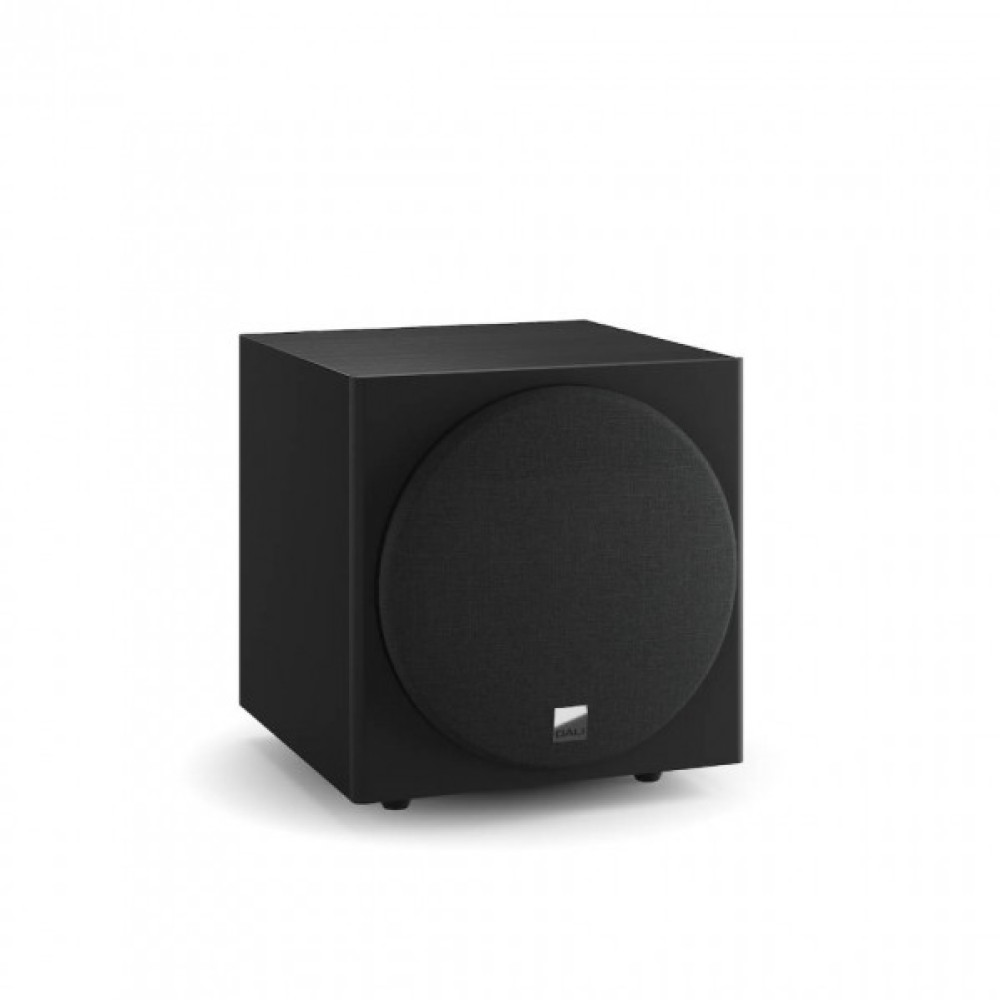

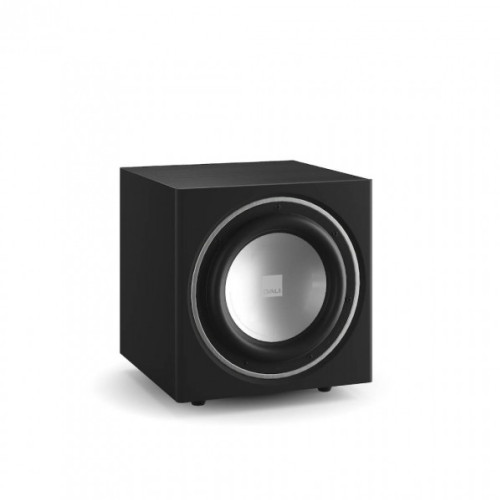

Dali Sub E-9 F Black (Satin) 220-240 V
DALI's most compact subwoofer, the E-9 F is still brimming with class despite it's sprightly size. DALI have crammed in some fearsome power and used some pretty impressive components in order to produce a bass speaker that will provide balance and texture to movie scenes or add a little more richness to musical performance.
Danish loudspeaker leaders DALI have no cloak-and-dagger secrets to the virtual over-performance that the E-9 F subwoofer pulls; simply using the best components possible and keeping all control in their own manufacturing facility in Denmark is their core principle. A meaty 170 watt class-D amplifier is the primary driver, providing the bass cone with well controlled power that fills up rooms far larger than you think it should.

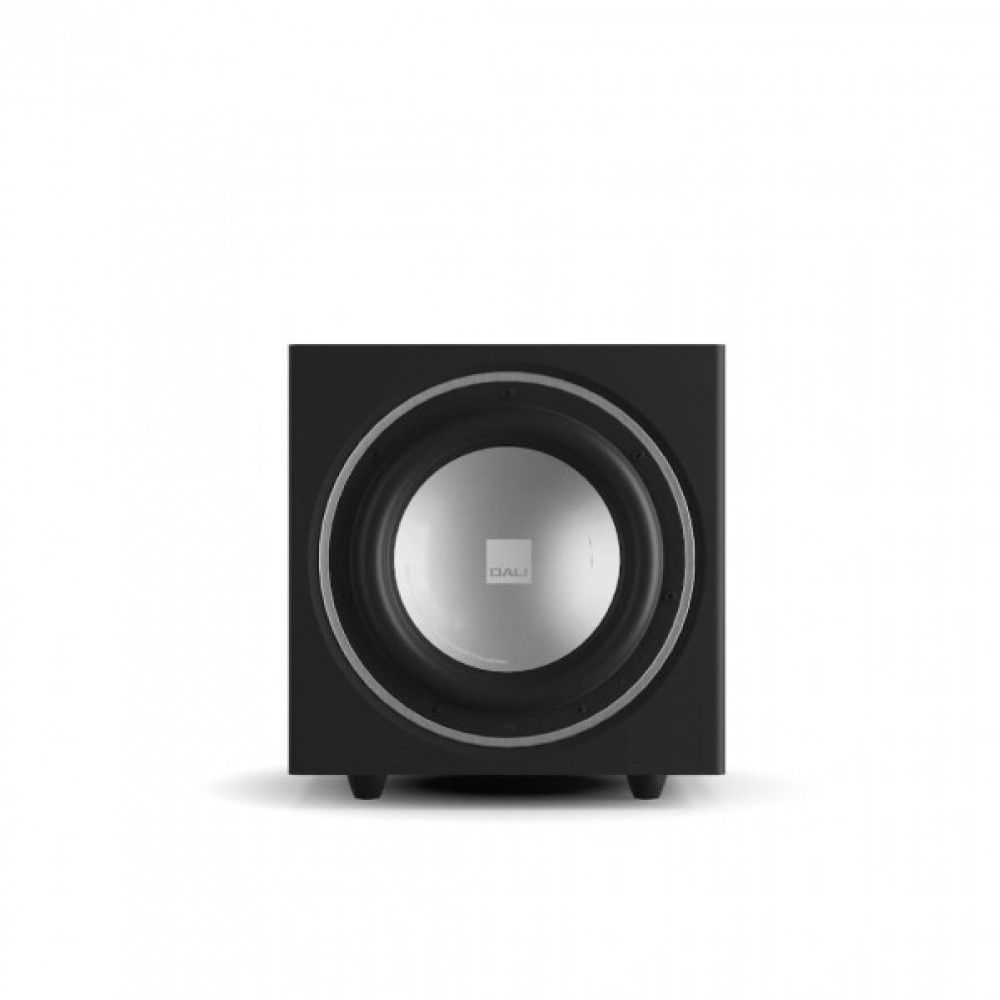

An aluminium 9-inch woofer unit is incredibly light but perfectly rigid allowing for a fast response without sounding flabby. This helps with soundtrack subtleties adding a textured bass response. Behind the cone, a large magnet and voice coil will provide long-lasting reliability and flawless bass response.
The back plate of the DALI SUB E-9 F features controls for volume adjustment, phase, and upper cut-off frequency, while the power on/off function works automatically via signal detection. With the options for LFE or LINE inputs, this subwoofer easily accompanies any AV set up.
Danish loudspeaker leaders DALI have no cloak-and-dagger secrets to the virtual over-performance that the E-9 F subwoofer pulls; simply using the best components possible and keeping all control in their own manufacturing facility in Denmark is their core principle. A meaty 170 watt class-D amplifier is the primary driver, providing the bass cone with well controlled power that fills up rooms far larger than you think it should.
An aluminium 9-inch woofer unit is incredibly light but perfectly rigid allowing for a fast response without sounding flabby. This helps with soundtrack subtleties adding a textured bass response. Behind the cone, a large magnet and voice coil will provide long-lasting reliability and flawless bass response.
The back plate of the DALI SUB E-9 F features controls for volume adjustment, phase, and upper cut-off frequency, while the power on/off function works automatically via signal detection. With the options for LFE or LINE inputs, this subwoofer easily accompanies any AV set up.
Specifications
General
Enclosure Type
Bass Reflex
Features
Recommended Placement
Floor in the corner or side
Functions
Bass Reflex Tuning Frequency (Hz)
39
Crossover Frequency (Hz)
40 - 120 Hz
Frequency Range (+/-3 dB) (Hz)
37 - 200
Functions
Crossover Frequency
Phase Switch
Standby (Auto Power) On/Off
Switch
Volume (Gain)
Low Frequency Driver
1 x 9-inch long stroke Polymere Aluminimum
Maximum SPL (dB)
111
Inputs
Connection Input(s)
Mono line level (LFE)
Stereo line level (low pass filtered)
RCA
Input Impedance [kOhm]
25
Outputs
Continous IEC Power Output [RMS watt]
170
Power
Max. Amplifier Power Output (RMS watt)
220
Maximum Power Consumption
250w
Supplied Accessories
Grille Included
No
Dimensions
Max. Dimensions (Incl. Base And Grille)
H307 x W288 x D311mm
Recommended Distance From Wall
10cm - 30cm
Weight
11.0kg
Dali
DALI, Danish Audiophile Loudspeaker Industries, was created in 1983 to meet the demands of Scandinavia's leading audio retail chain's customers, who were asking for loudspeakers that existing brands couldn't offer. DALI loudspeakers would offer outstanding performance and natural sound at competitive prices.
