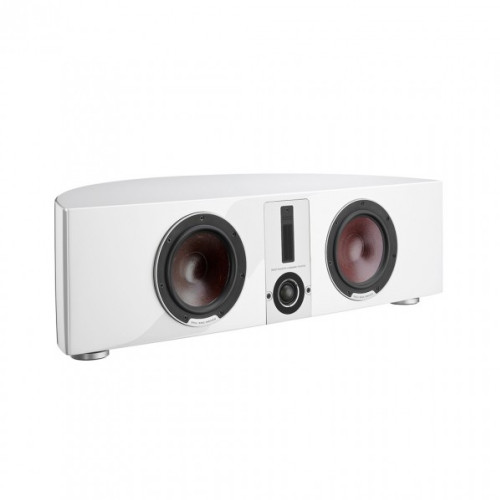

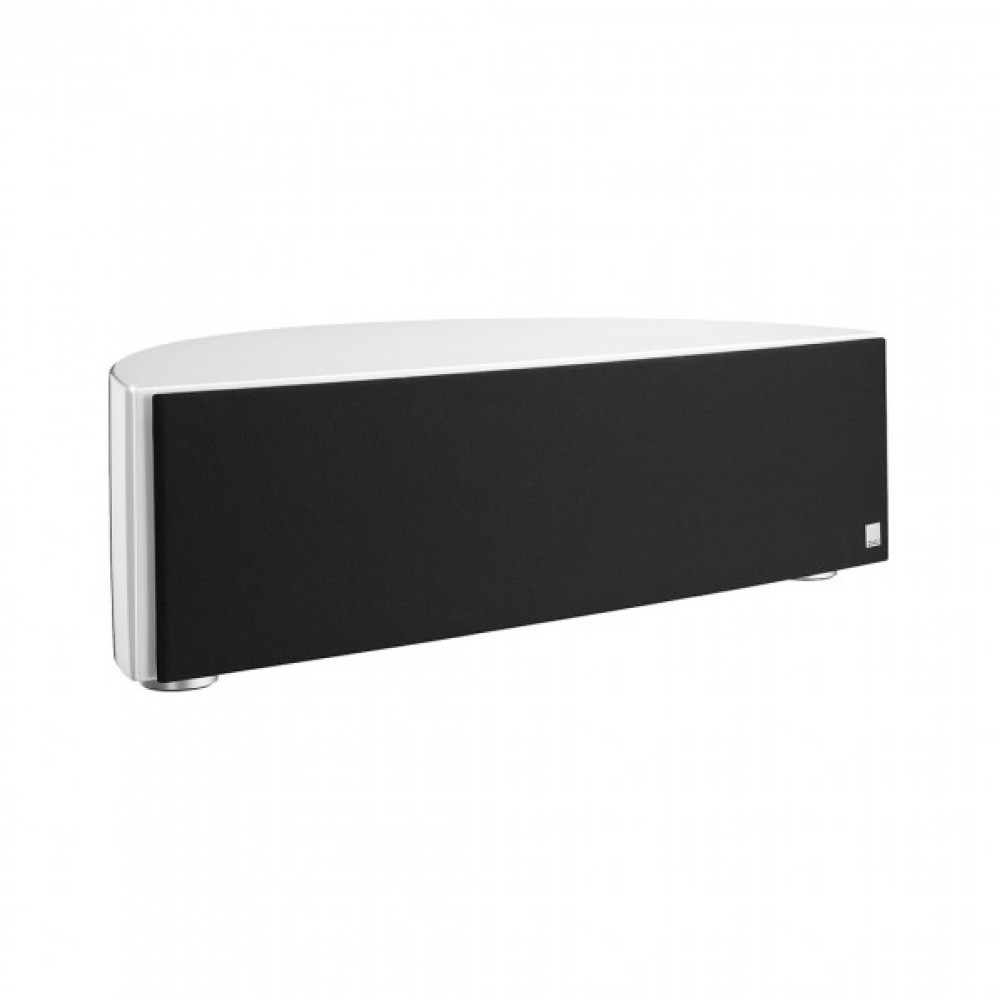

Dali Center Channel Speaker Epicon Vokal White

Dali Center Channel Speaker Epicon Vokal White

SKU: 1369

255112

Turn your living room into a world-class movie theatre. Experience every word, shout or whisper in ultimate clarity with the movie star of the DALI EPICON family, the VOKAL centre speaker - effortlessly reproducing human voices and delivering audio t...
View all
Specifications
  • Enclosure Type Bass Reflex
  • Magnetic Shielding No
  • Recommended Amplifier Power [W] 50 - 300
  • Recommended Placement Centre / Soundbar Shelf or stand
  • Bass Reflex Tuning Frequency (Hz) 46.5
All specifications

Please call us for more information

We also offer you
Free selection of cables
0 GBP
Connection and setup
param-tool
Call an expert
Dali Center Channel Speaker Epicon Vokal White
Turn your living room into a world-class movie theatre. Experience every word, shout or whisper in ultimate clarity with the movie star of the DALI EPICON family, the VOKAL centre speaker - effortlessly reproducing human voices and delivering audio tracks with stunning realism and accuracy. DALI have developed an uncompromising centre speaker for all of you multi-channel fans - the DALI EPICON VOKAL. Incorporating 2 x 6½” woofers along with the hybrid tweeter module this speaker promises the same level of transparency and timbre matching with the rest of the series.

The EPICON VOKAL will match any of the three main speakers, and it will benefit any setup where the realism and realistic sound pressures are required. Common to all the EPICON loudspeakers is that they work well in both 2.0, 2.1, 5.1 or other multichannel systems. 50% of the acoustic energy in a normal movie comes from the center channel. The EPICON VOKAL is up to the real challenge. Meticulous timbre matching and the same ability to render finer details exactly the way they were recorded is an EPICON trademark. Here, e.g. the effortless reproduction of human voices is what sets DALI EPICON VOKAL apart.

SMC Technology
Hybrid Tweeter
Gold Plated Terminals

SMC Technology
Soft Magnetic Compound (SMC) material offers exactly the right physical properties. Very high magnetic conductivity and very low electrical conductivity. The result is a dramatic reduction in distortion caused by mechanical loss in the magnet system. The high magnetic conductivity is instrumental in more or less eliminating the frequency depended effect of hysteresis. The electrical non-conductive nature of the SMC material eliminates the induction of modulating magnet fields in the magnet gap and significantly lowers the eddy current on the pole piece caused by the movement of the voice coil.

Hybrid Tweeter
The ribbon tweeter features a broad frequency band and superb dispersion in the higher frequencies. Gently rolled in above 10 kHz, the ribbon reaches full contribution from 15 kHz to well beyond 30 kHz, far above the audible range. Both the soft dome and the ribbon tweeter are free of artefacts, e.g. resonances and high Q peaks within their working range. The Hybrid Tweeter Module features an extremely smooth and wide horizontal dispersion – one of our sound design trademarks. Even the detailing of the faceplate of the tweeter module is designed for optimal horizontal dispersion.

Woofer
The wood fibre technology has proven to be a key in reproducing the finest details and dynamics in the music with very low loss of information. Wood fibres add stiffness to very light paper cone membranes, ensuring non-uniform break-up characteristics within the material. The result is a structural stiffness showing top-class behaviour. The wood fibre cone terminates in a low-loss rubber surround that is fitted to a die cast aluminium chassis. Assembly of the cone, surround, voice coil and chassis is done in highly accurate tools for the maximum alignment accuracy.

Cabinet
A rigid construction is necessary to optimise the working environment for both woofers and tweeter. The front baffle, sides and top of the EPICON VOKAL are heated in a process that allows us to press it into an organic shape. This design increases overall rigidity and severely reduces cabinet resonances. Furthermore standing waves are practically eliminated as there are no parallel surfaces reflecting sound waves. With a thickness of 33 mm the dual-layer front baffle ensures that energy from the drivers is radiated as acoustic energy, and not as vibrations in the cabinet. The curved shape of the front baffle is also a contributing factor in ensuring a stable acoustic platform.
Specifications
General
Enclosure Type
Bass Reflex
Features
Magnetic Shielding
No
Recommended Amplifier Power [W]
50 - 300
Recommended Placement
Centre / Soundbar Shelf or stand
Functions
Bass Reflex Tuning Frequency (Hz)
46.5
Crossover Frequency (Hz)
2,750 / 15,000
Frequency Range (+/-3 dB) (Hz)
49 - 30,000
Hybrid Tweeter Module, High Frequency Driver Diaphragm Type
Soft Textile Dome
Hybrid tweeter module, High frequency driver, Quantity
1 x 29 mm
Hybrid tweeter module, Super high freq. driver, Diaphragm type
Ribbon
Hybrid tweeter module, Super high freq. driver, Quantity
1 x 10 x 55 mm
Low Frequency Driver, Diaphragm Type
Wood Fibre Cone
Low Frequency Driver, Quantity
2 X 6½"
Maximum SPL (dB)
111
Nominal Impedance (ohms)
6
Sensitivity (2,83 V/1 m) [dB]
89.5
Inputs
Connection Input
Bi-Amping
Supplied Accessories
Accessories Included
Connectors Damper Feet Manual Micro Fibre Cloth
Dimensions
Dimensions With Base (HxWxD) (mm)
247 x 816 x 349
Recommended Distance From Wall (cm)
> 5
Weight (KG)
44669
About brand
Dali Dali

DALI, Danish Audiophile Loudspeaker Industries, was created in 1983 to meet the demands of Scandinavia's leading audio retail chain's customers, who were asking for loudspeakers that existing brands couldn't offer. DALI loudspeakers would offer outstanding performance and natural sound at competitive prices.
