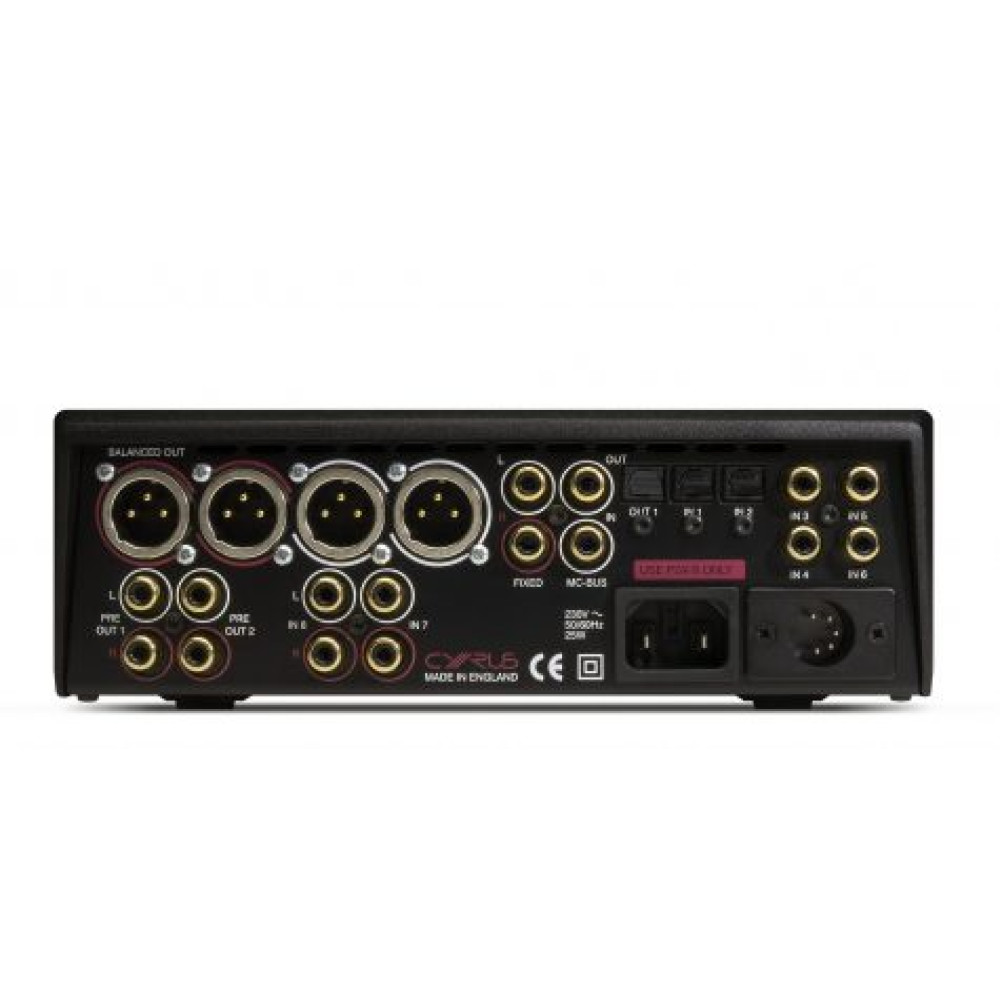

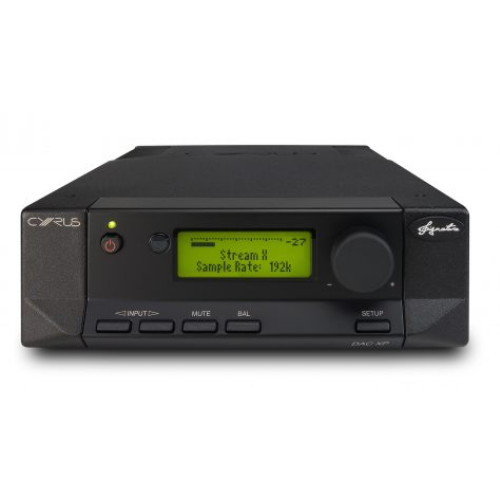

Cyrus Preamplifier DAC XP SIGNATURE
At the heart of the DAC XP Signature is an upsampling digital to analogue converter which transforms any music into the highest possible 32-bit resolution. The fullness, depth and quality of the sound this produces is really impressive. The amplification process of the DAC XP Signature has also been painstakingly tuned to produce the trademark Cyrus sound – quality and purity guaranteed.
Our engineers have created our most stable circuit yet, making sure that there’s no jitter and your music is perfectly timed throughout. The built-in pre amp provides a full and clear sound output no matter what you’re listening to – using our best pre amp technology.
The chassis of the DAC XP Signature is divided into two entirely separate sections – an audiophile DAC and a fully balanced analogue pre amplifier. Keeping these processes completely separate means each can be given all of the power it needs on a separate circuit, avoiding any distortion or noise interference.
Specifications
Inputs
Analogue Inputs
Input Sensitivity. 200mV
Input Impedance . 47kΩ
Input Overload level (1KHz, 0.01%THD). 4.3V
S/N ratio, (500mV i/p, max.vol.) 100dBA
THD+N, (500mV i/p, max.vol.) 0.002%
Channel separation (1kHz) 85dB
Inputs
Input voltage 500mV pk-pk
Input Impedance 75Ω
S/N ratio, (PCM in, 0dBFS) 115dBA
THD+N, (PCM in, 0dBFS) 0.002%
Outputs
Analogue Outputs
Output voltage (dig. in, vol max)
Fixed out 2.3V
Pre out. 4.4V
Balanced out. 8.4V
Output Impedance 300Ω
CYRUS
Unique amongst British high-end audio manufacturers, pioneering work in Cambridgeshire research and development studios has led to remarkable advances in DAC design, Power management, CD servo design, and noise rejection. Each of classic and XR products is housed in hand-finished inverted ‘cast-aluminium’ chassis and fitted with the finest audio components available. The stunning elegance and searing performance of your Cyrus music system truly justify their ‘pride-of-place’ in your listening or sitting room.
