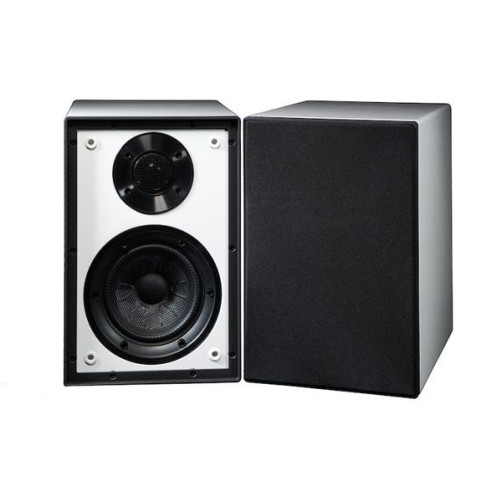

Cyrus Bookshelf Speakers ONE LINEAR kevlarwoolen cone & soft dome tweeter

Design Principles

The ONElinear bass/mid driver uses a double-wound copper-coated aluminium voice-coil. As well as being light, this produces a stronger induced magnetic field and hence ‘grip’ over hard to control bass frequencies. The voice coil is bonded to a carefully profiled KEVLAR cone material. This material is light and responsive, carrying limited inertia and retaining its shape and hence audio characteristic even when pushed hard. The speed and accuracy of the resulting bass response is remarkable for a speaker of the size.

The ‘tweeter’ or treble unit is a textile soft-dome, capable of meaningful response well beyond the limits of human hearing. Refined and balanced, the high-frequencies are never ‘aggressive’ or harsh, yet retain the full detail of the source recording.

The crossover uses high quality electrolytic capacitors to maintain the signal integrity and a smooth phase response through the transition from bass driver to tweeter. This again contributes the even response.

The cabinet has been developed using advanced computer modelling with ‘Delayed Cumulative Spectral Analysis’ to reduce the contribution of cabinet noise to levels more than 35dB below the driver output. The same computer modelling is also used to fine tune the crossover to ensure a consistent performance, even when listening ‘off-axis’.

The ONE linear is rear-ported and designed to be positioned between 10-30cm from a rear wall. This will optimise the bass response and mid-range clarity, although some experimentation with position is advised as this will be room-dependent.
