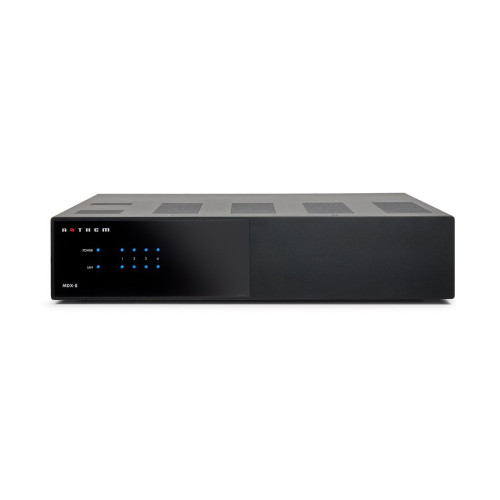

Anthem MDX 8 Power Amplifier
New Anthem MDX Series are the first distribution systems to feature fully powered independent-zone subwoofer connections, as well as ARC® Genesis room correction for each zone.
MDX Series features today’s cutting-edge Anthem amplifier technology so you can expect smooth, efficient, consistent high power and reliability. MDX Series is engineered to simplify your next custom audio system installation, and to blow your clients away with extreme performance in any setup.New Anthem MDX Series are the first distribution systems to feature fully powered independent-zone subwoofer connections, as well as ARC® Genesis room correction for each zone.
MDX Series features today’s cutting-edge Anthem amplifier technology so you can expect smooth, efficient, consistent high power and reliability. MDX Series is engineered to simplify your next custom audio system installation, and to blow your clients away with extreme performance in any setup.
General
Setup
Web-based user interface
Features
Advanced Load Monitoring
Yes
Digital-to-Analog Converter
PCM up to 24 bit/192 kHz
Microphone
Included dual input microphone
Room Correction
Anthem Room Correction (ARC®)
Functions
Channels / Zones
8 channels / Up to 4 zones
Controls (back panel)
Power Mode: Auto, Trigger,
Controls (via web-based UI)
Bass level: ±6dB for each zone;
Frequency Response
10Hz – 20kHz ±0.5dB

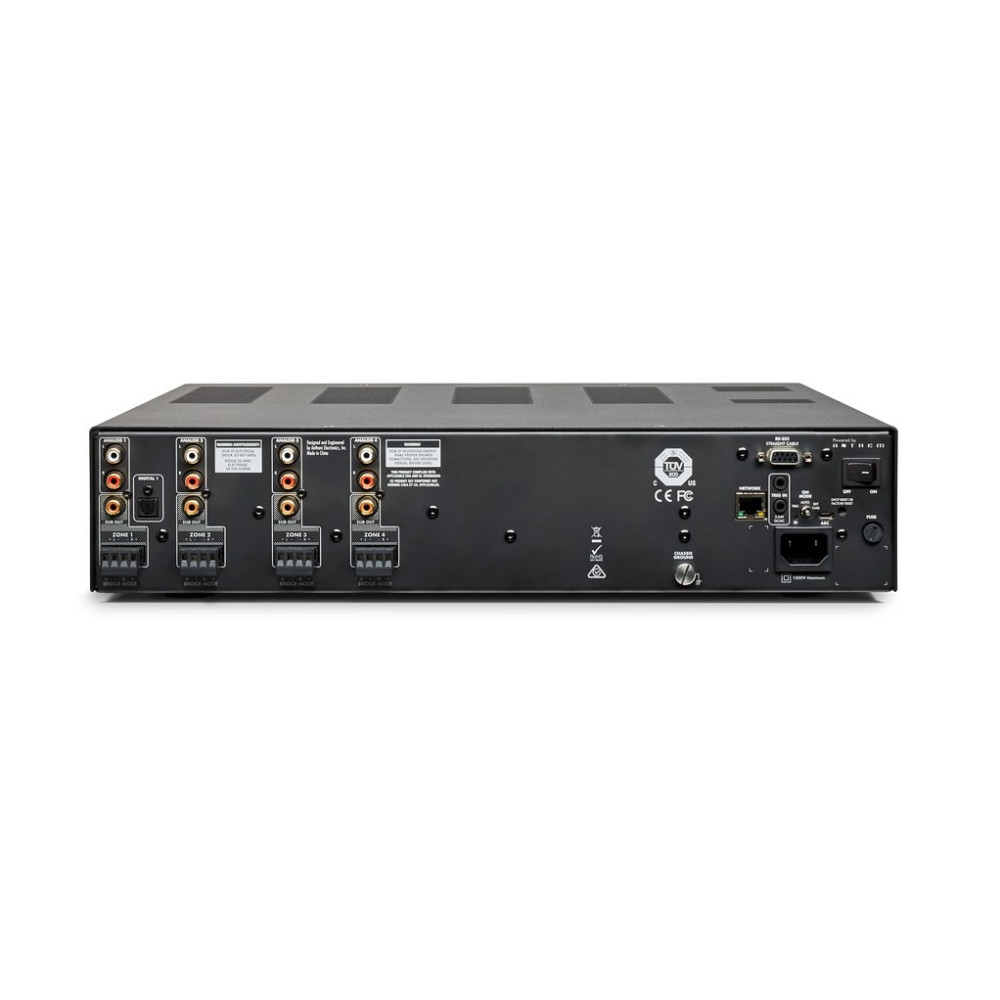

Inputs
Inputs (analog)
4x RCA pairs (left/right)
Inputs (digital S/PDIF)
1x Optical
Inputs (network)
RJ-45 10Base-T/100
Inputs (other)
Micro-USB (for ARC); RS-232
Inputs (trigger)
1x 3.5mm (5 – 24V DC/AC)
Outputs
High Output Mode (Bridged) RMS per Channel (8 Ohm)
200 Watts
Outputs (other)
1x 3.5mm 12V trigger
Outputs (speaker level)
4x removable Phoenix style (left/right) accommodate wire up to 12AWG
Outputs (subwoofer)
4x RCA (with bass management and room correction)
Power Output RMS per Channel (4 Ohm)
120 Watts
Power Output RMS per Channel (8 Ohm)
60 Watts
Power
Wireless connection
IP Control (via IP or RS-232)
Drivers for Control4, Crestron, Savant, URC, Elan and RTI(coming soon)
Supplied Accessories
Rack Mount Ears / Feet
Included
Dimensions
Dimensions
3.9” x 17” x 17” (9.9 x 43.2 x 43.2 cm)
Rack Space (feet removed)
2U
